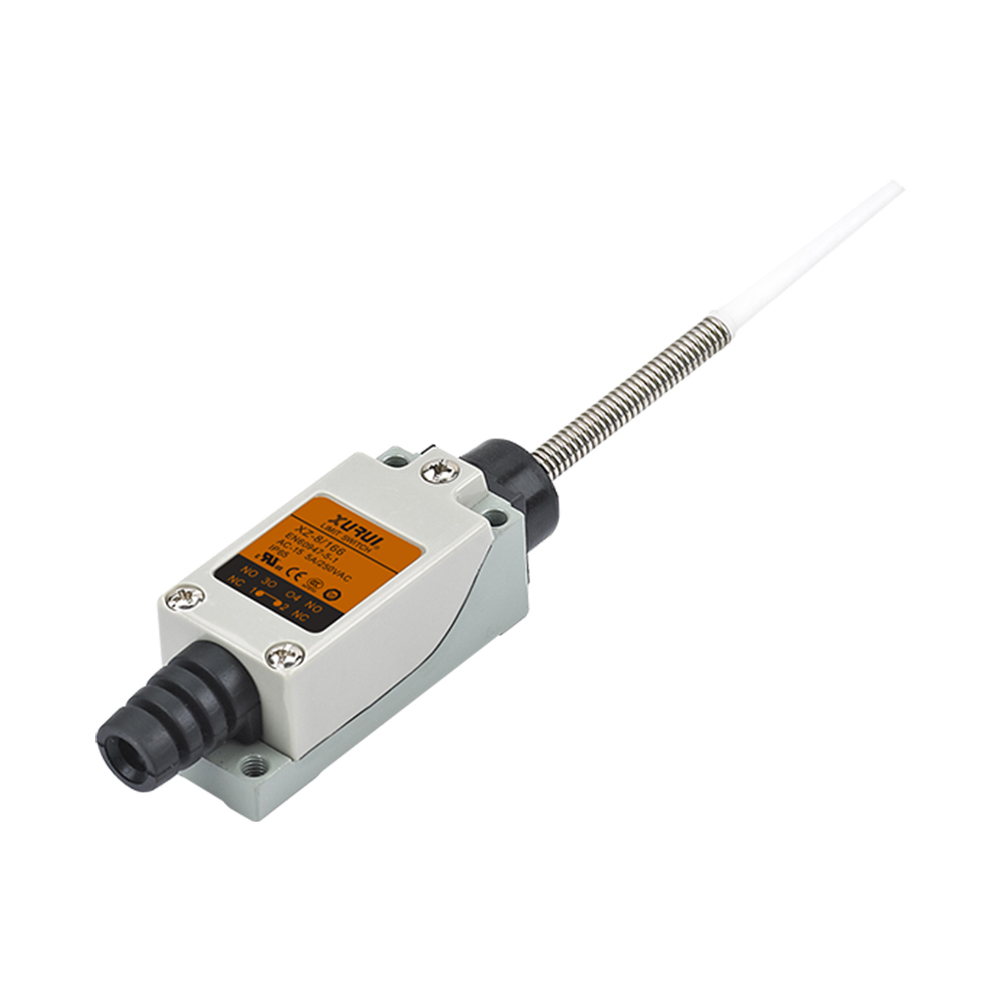

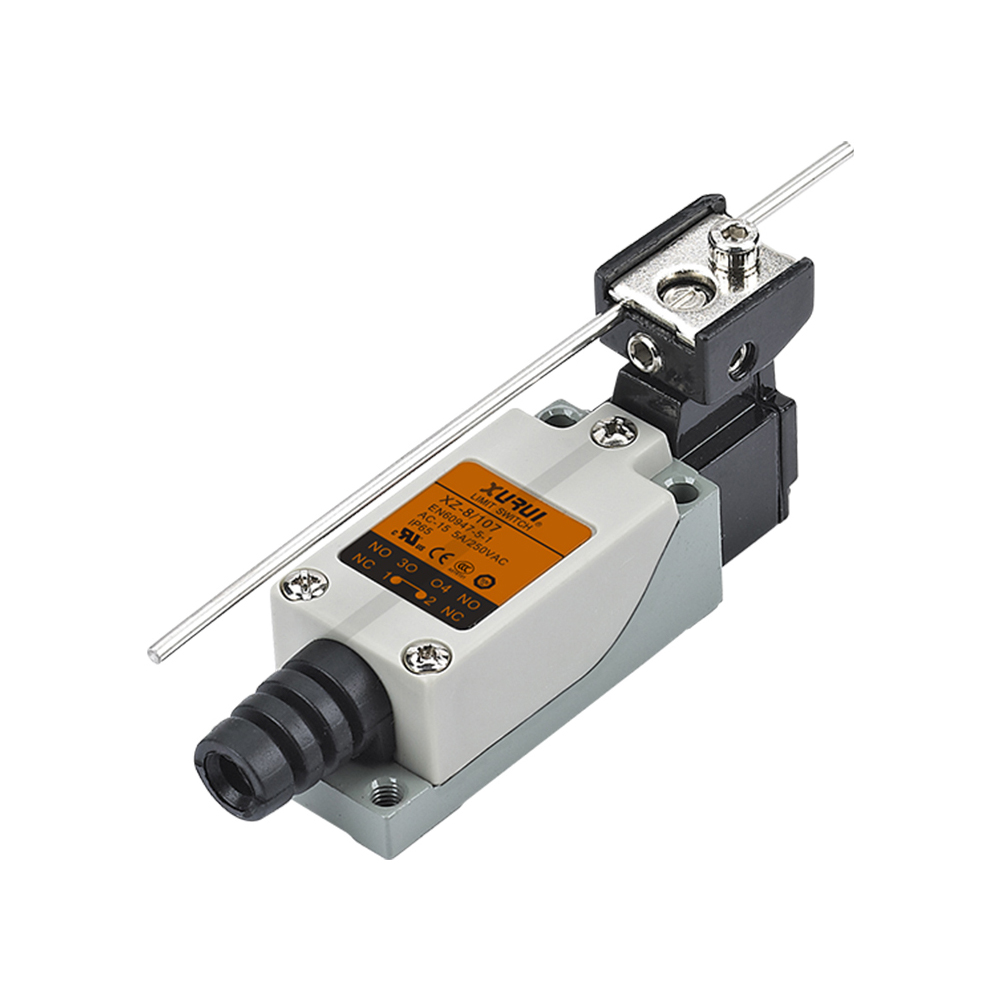

XZ-8 Series Miniature Vertical Limit Switch

The XZ8 Series Miniature Vertical Limit Switch is a compact and highly reliable position detection switch designed for industrial automation, machine tools, conveying systems, and control equipment. Featuring a durable zinc alloy and engineering plastic housing, double-circuit contact design, sealed construction, and multiple actuator options, the XZ8 series provides accurate position sensing and dependable limit control in demanding industrial environments.

With an IP65 protection rating, 5A switching capacity, dual-circuit contacts, and a wide selection of actuator configurations including roller lever, adjustable lever, plunger, roller plunger, and flexible spring rod types, the XZ8 series offers excellent installation flexibility and long-term operational reliability for machine positioning, travel limiting, interlocking, and automation control applications.

Rated Load: 5A / 250VAC

Contact Configuration: DPDT (2NO + 2NC)

Protection Degree: IP65

Mechanical Life: ≥1,000,000 Operations

Electrical Life: ≥100,000 Operations

Operating Speed: 5mm – 50cm/s

Operating Temperature: -20°C to +60°C

Insulation Resistance: ≥100MΩ (DC500V)

Contact Resistance: ≤25mΩ (Initial Value)

Housing Material: Zinc Alloy + Engineering Plastic


Product Features
  • Flexible Model Selection
    Flexible Model Selection

    Multiple actuator styles within a single series simplify machine design standardization and inventory management.

  • Wide Operating Temperature Range
    Wide Operating Temperature Range

    Operates reliably in temperatures from -20°C to +60°C.

  • Easy Installation and Wiring
    Easy Installation and Wiring

    Standardized mounting dimensions and convenient wiring structure simplify installation and maintenance.

  • Reliable Electrical Performance
    Reliable Electrical Performance

    Low contact resistance and high insulation resistance ensure dependable signal transmission and switching performance.

  • High Mechanical Endurance
    High Mechanical Endurance

    Mechanical life exceeds 1 million operations, making it suitable for continuous industrial applications.

  • Precise Position Detection
    Precise Position Detection

    Designed for accurate and repeatable mechanical position sensing and travel limit control.

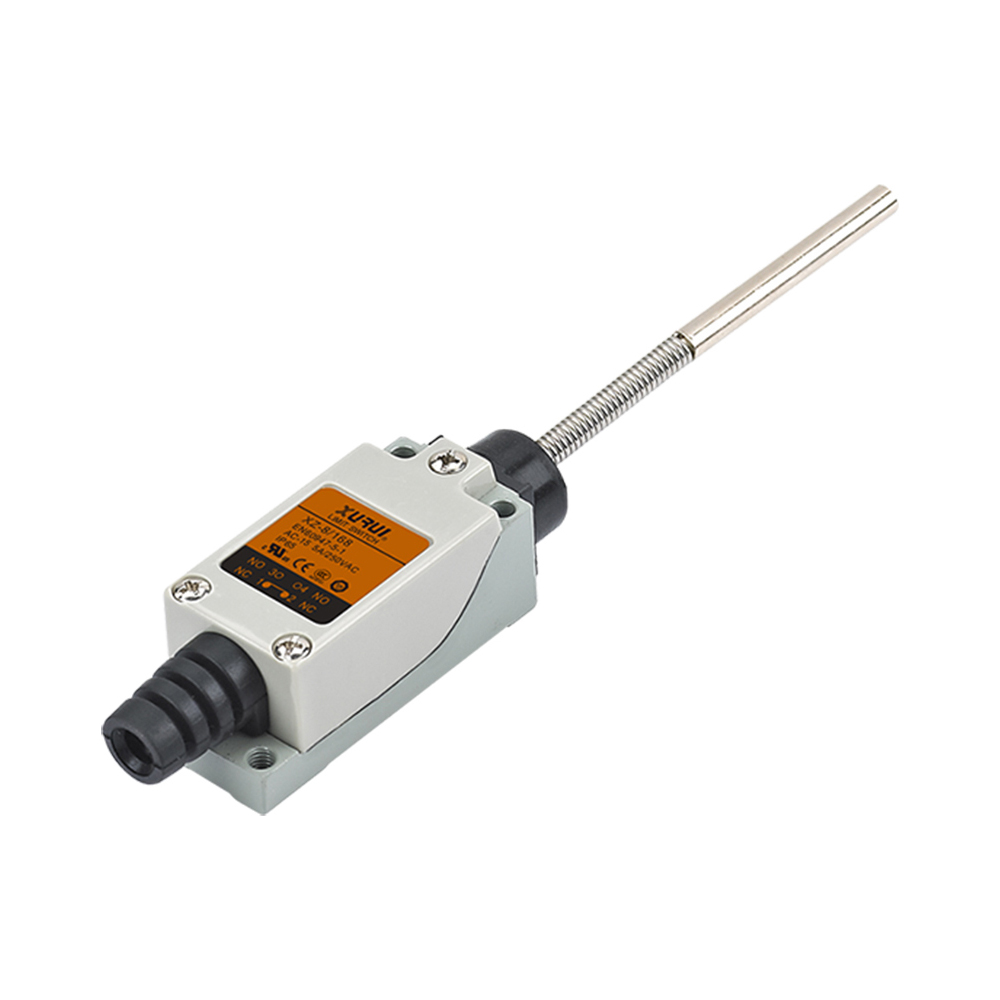

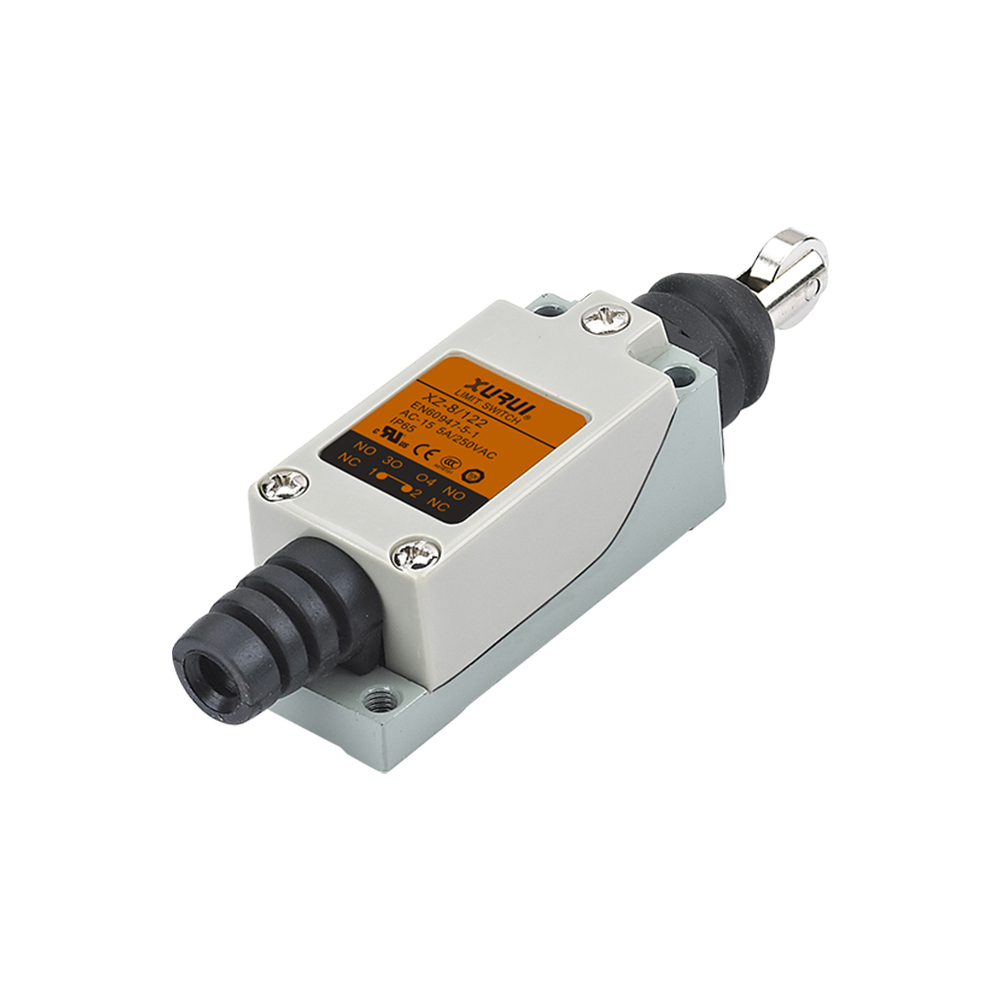

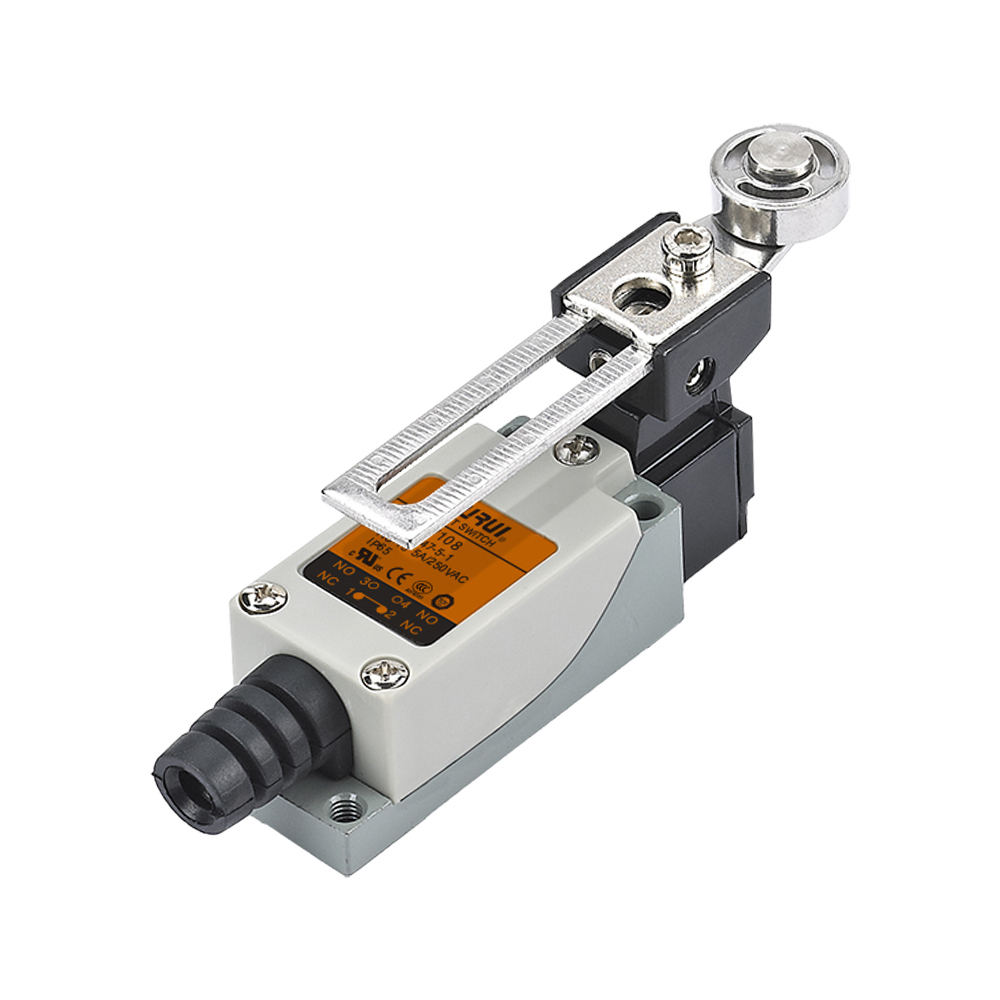

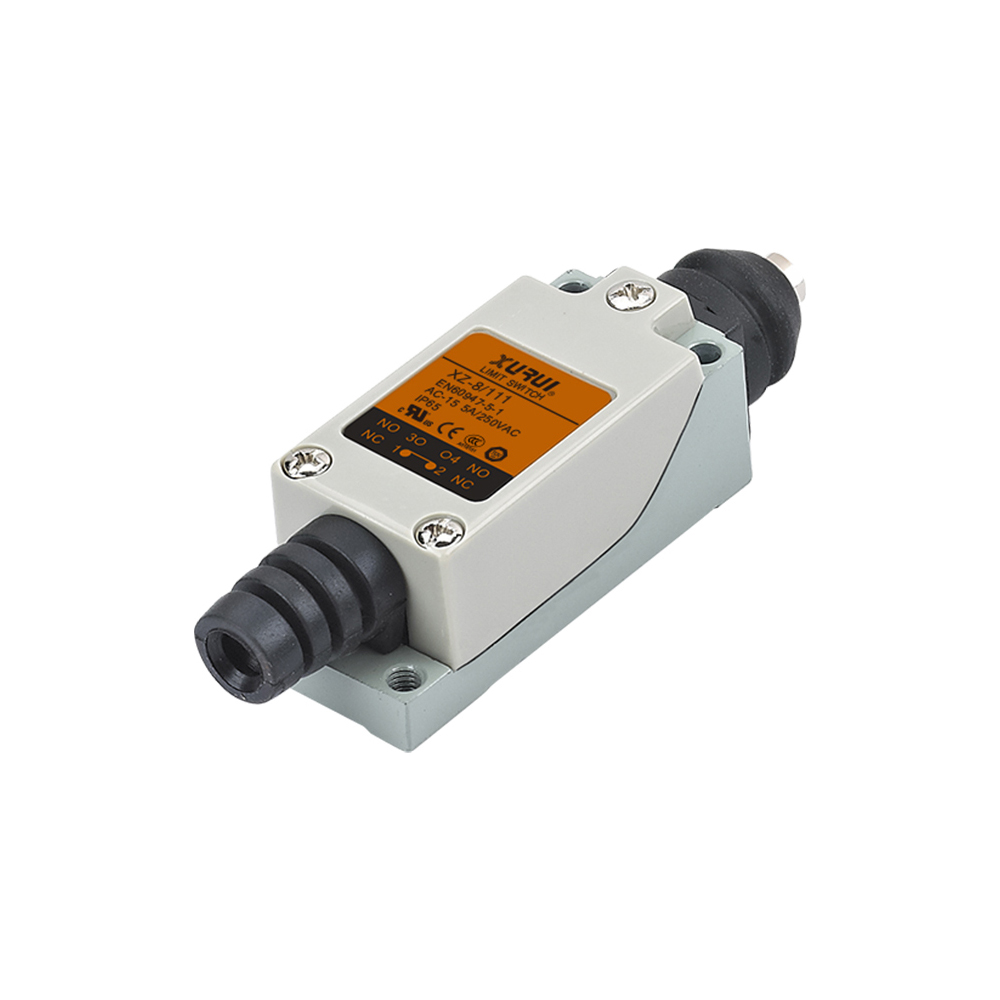

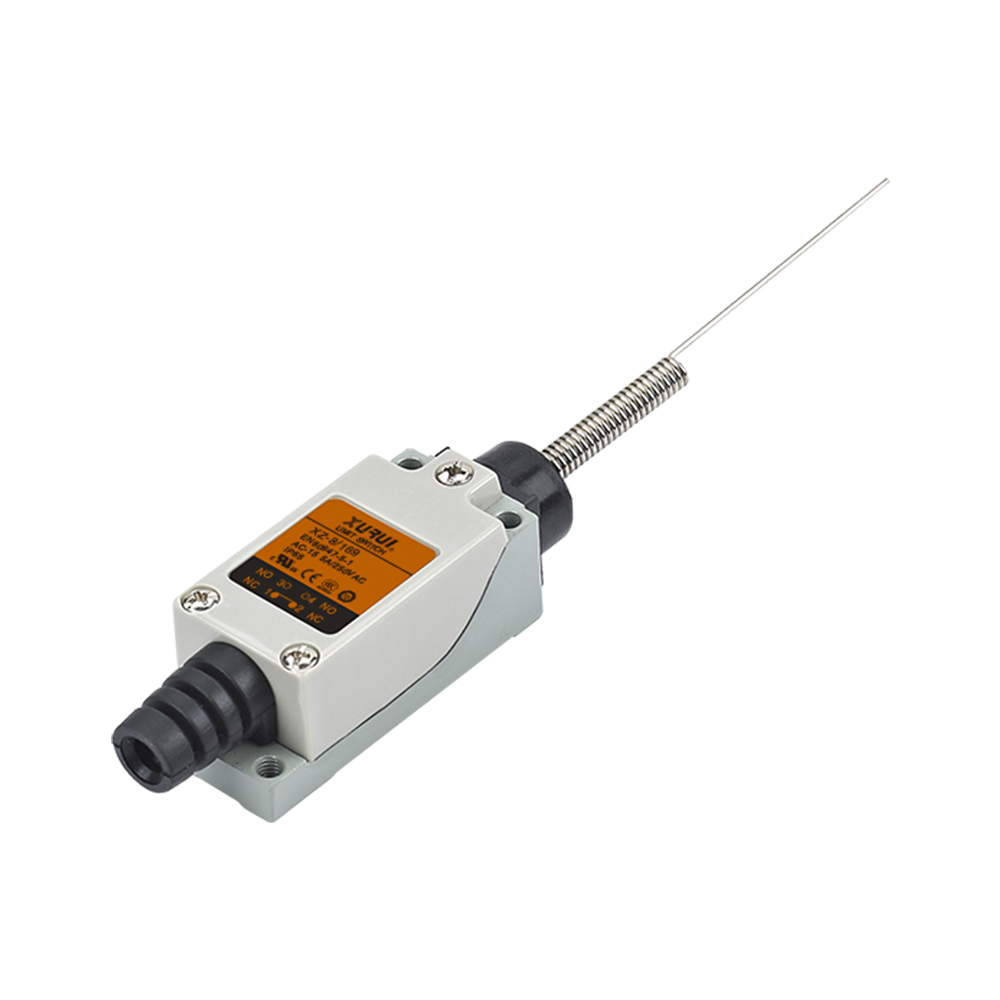

  • Multiple Actuator Options
    Multiple Actuator Options

    Available with various actuator configurations to meet different machine structures and operating requirements.

  • IP65 Protection Rating
    IP65 Protection Rating

    Provides excellent protection against dust and water jets, making the switch suitable for harsh operating conditions.

  • Sealed Construction
    Sealed Construction

    The sealed housing effectively prevents dust, oil, and moisture ingress, ensuring stable operation in industrial environments.

  • Dual-Circuit Contact Design
    Dual-Circuit Contact Design

    Built-in double-break contact structure with 2NO + 2NC contacts offers greater control flexibility and enhanced circuit reliability.

  • Durable Metal and Plastic Construction
    Durable Metal and Plastic Construction

    Combination of zinc alloy and engineering plastic provides excellent mechanical strength, impact resistance, and long service life.

  • Compact Vertical Design
    Compact Vertical Design

    Slim vertical housing design allows installation in restricted spaces while maintaining reliable switching performance.

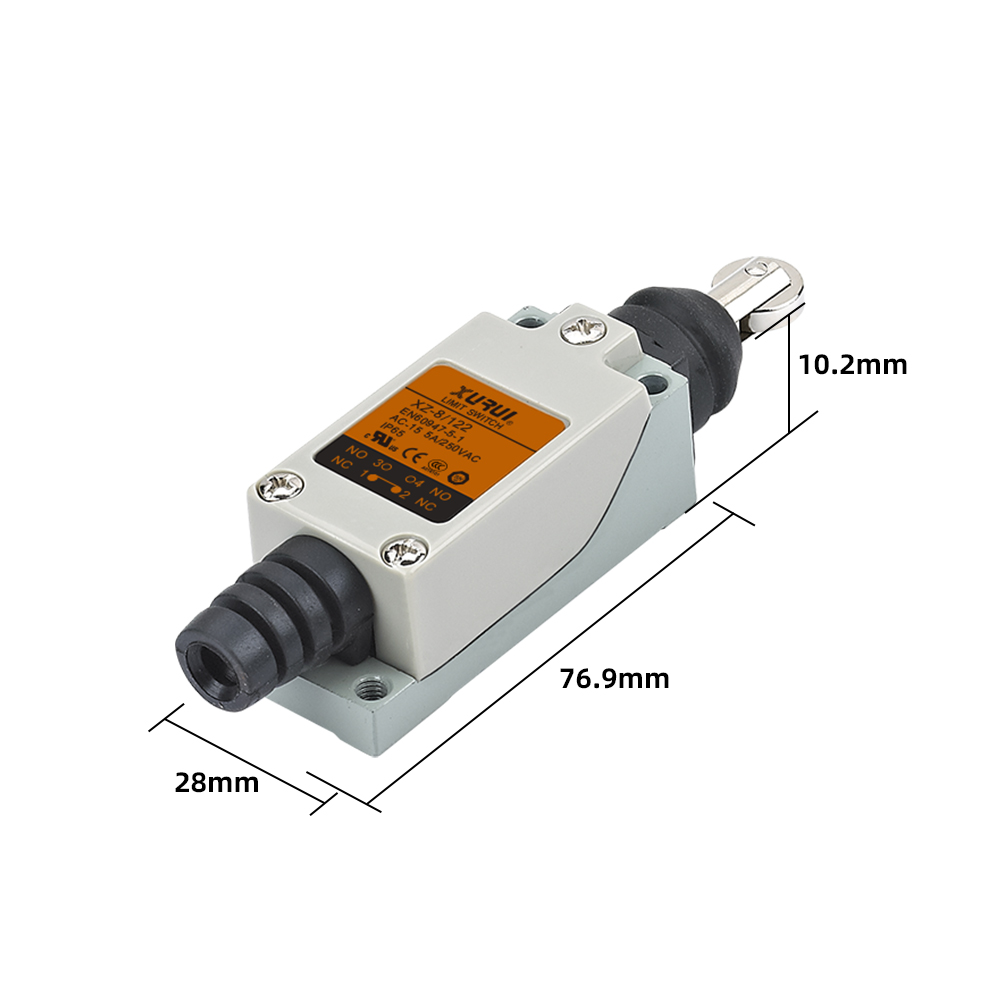

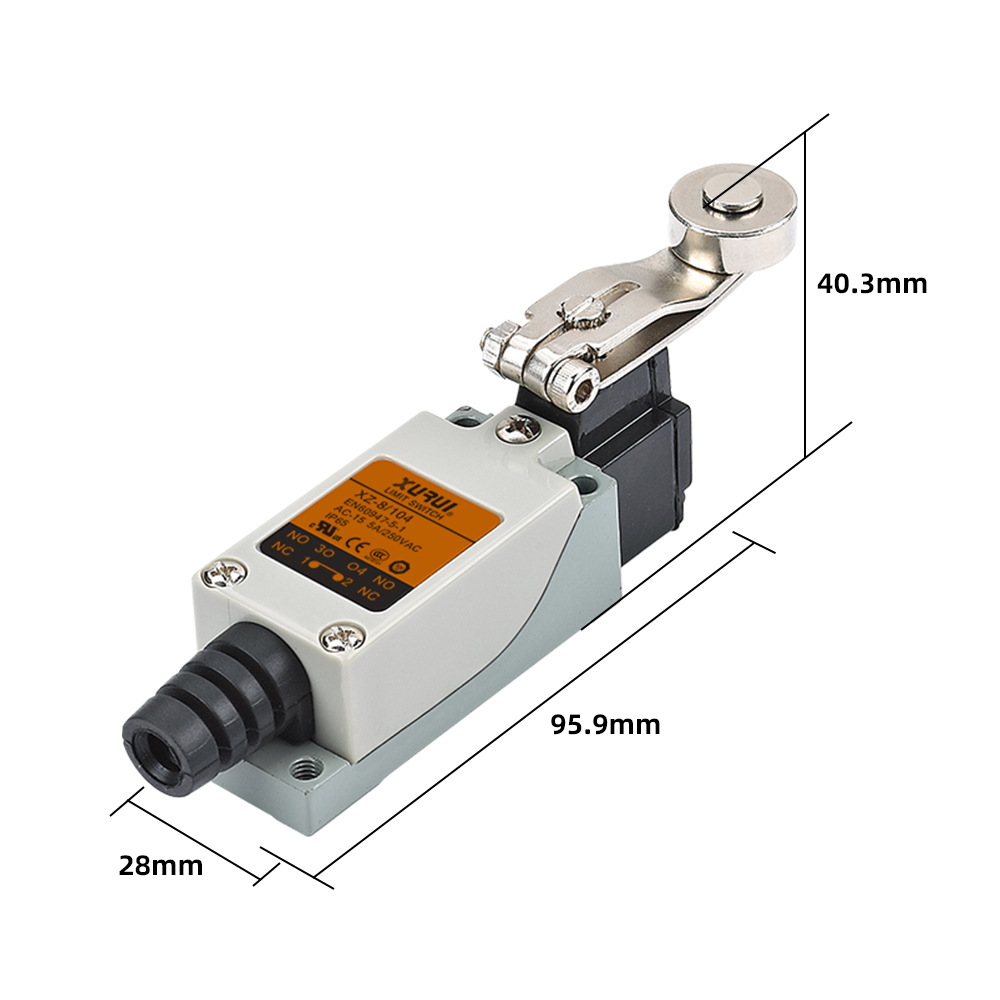

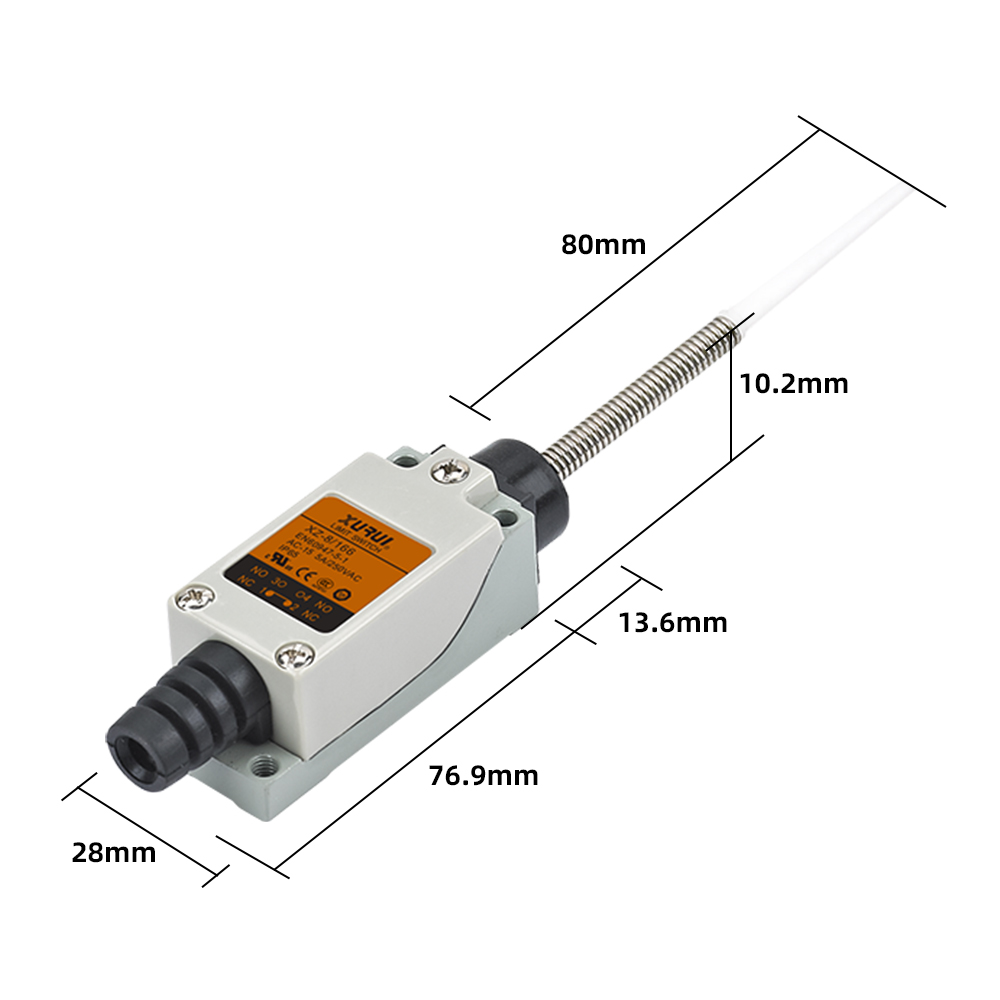

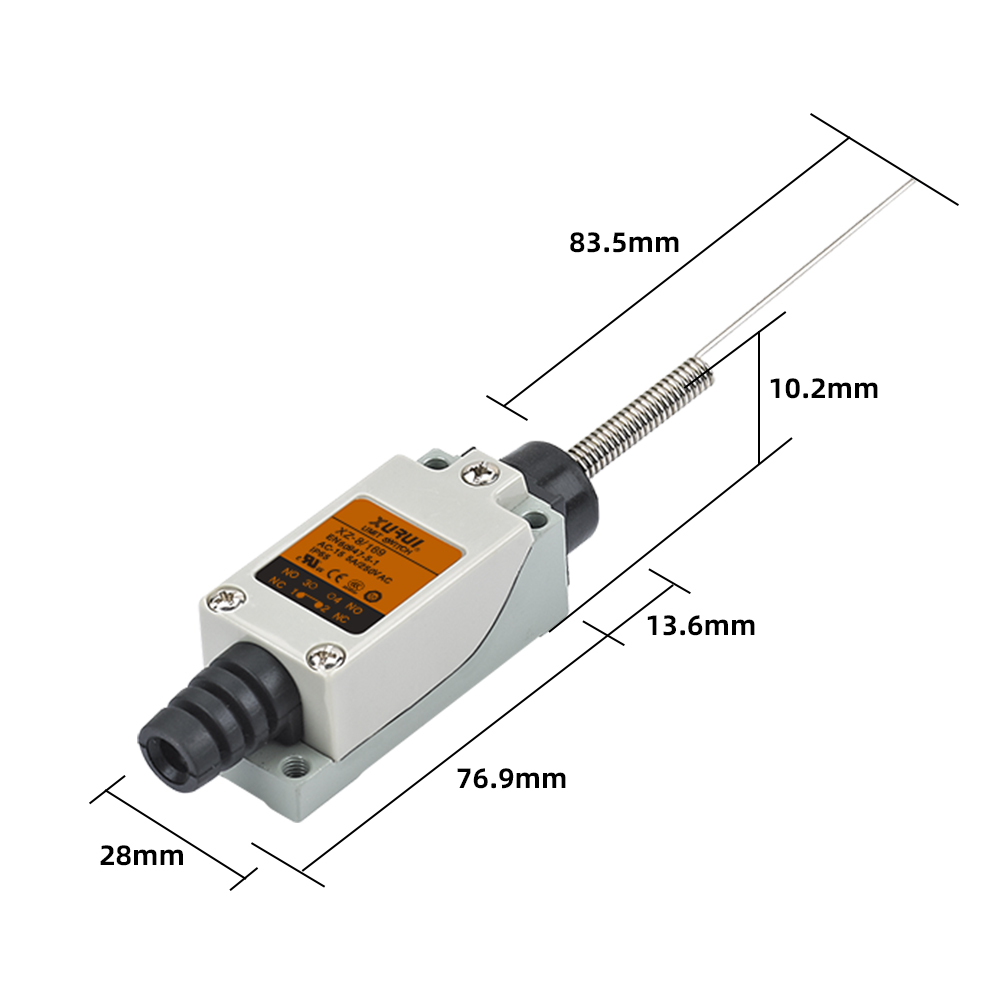

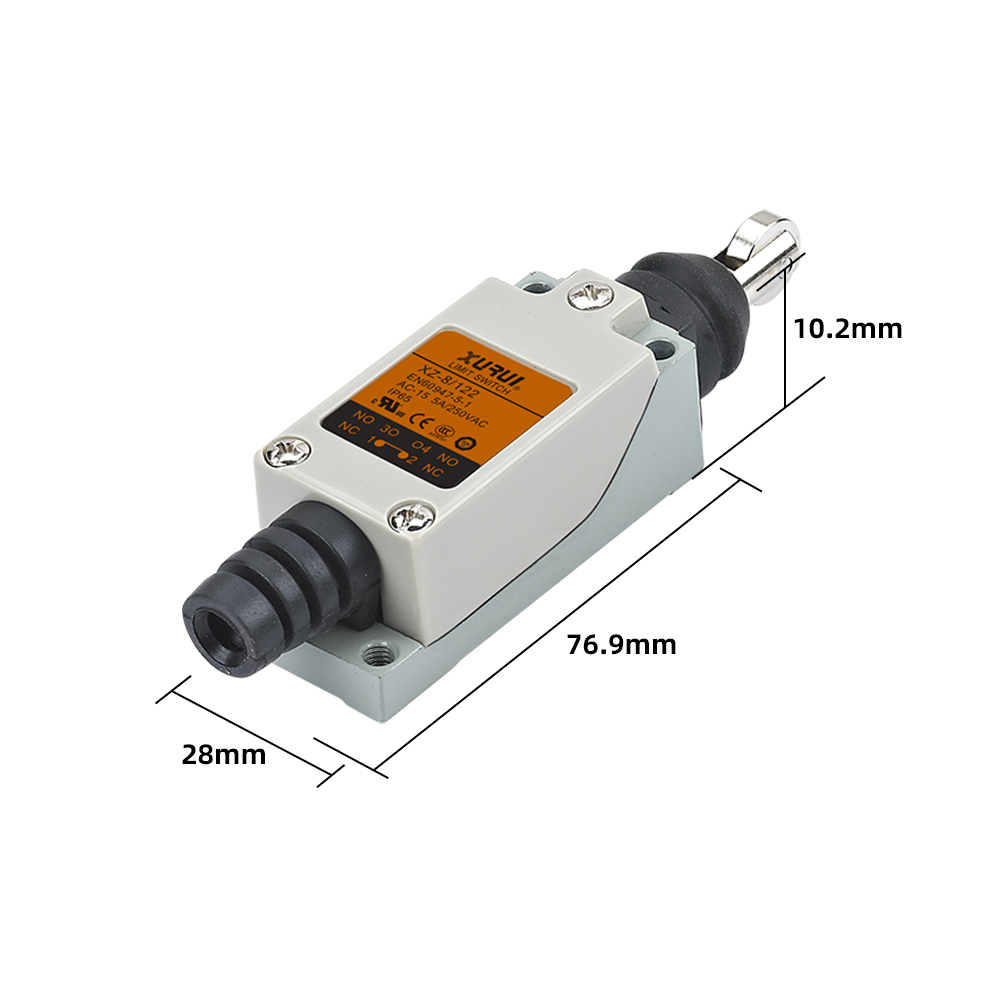

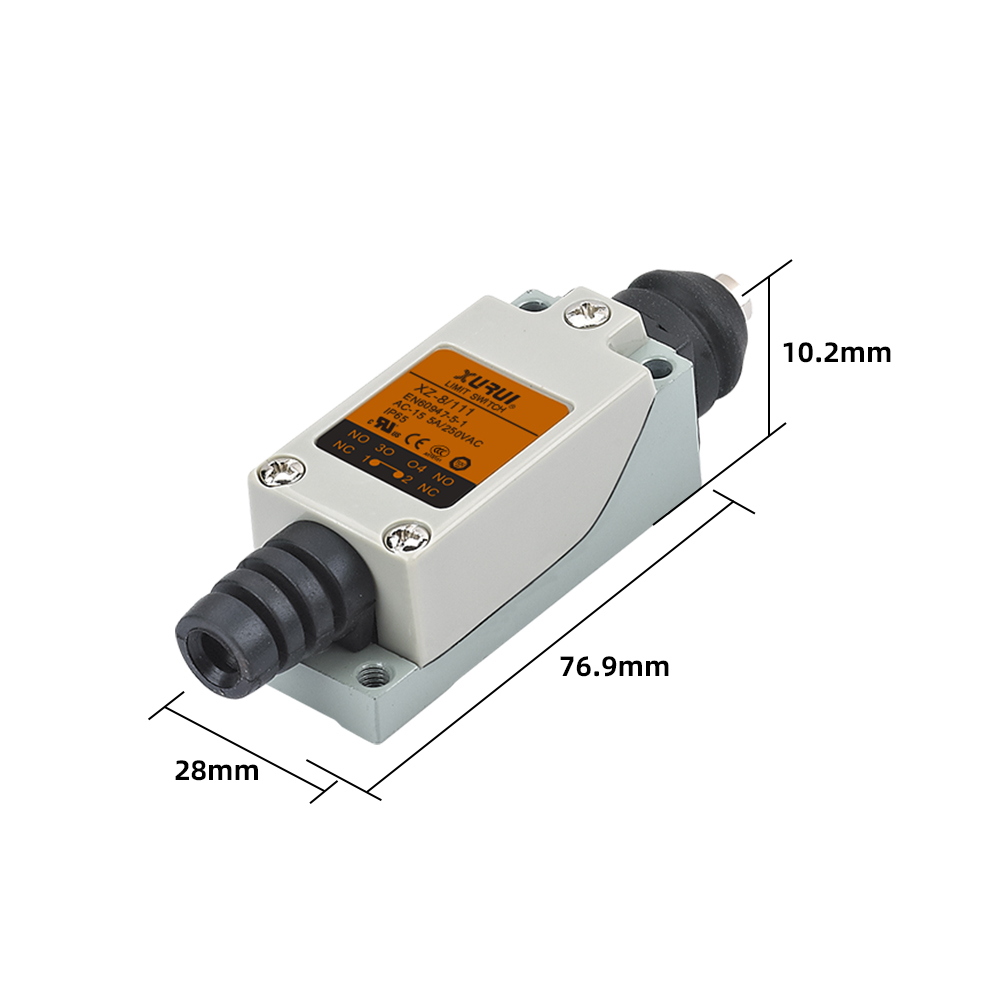

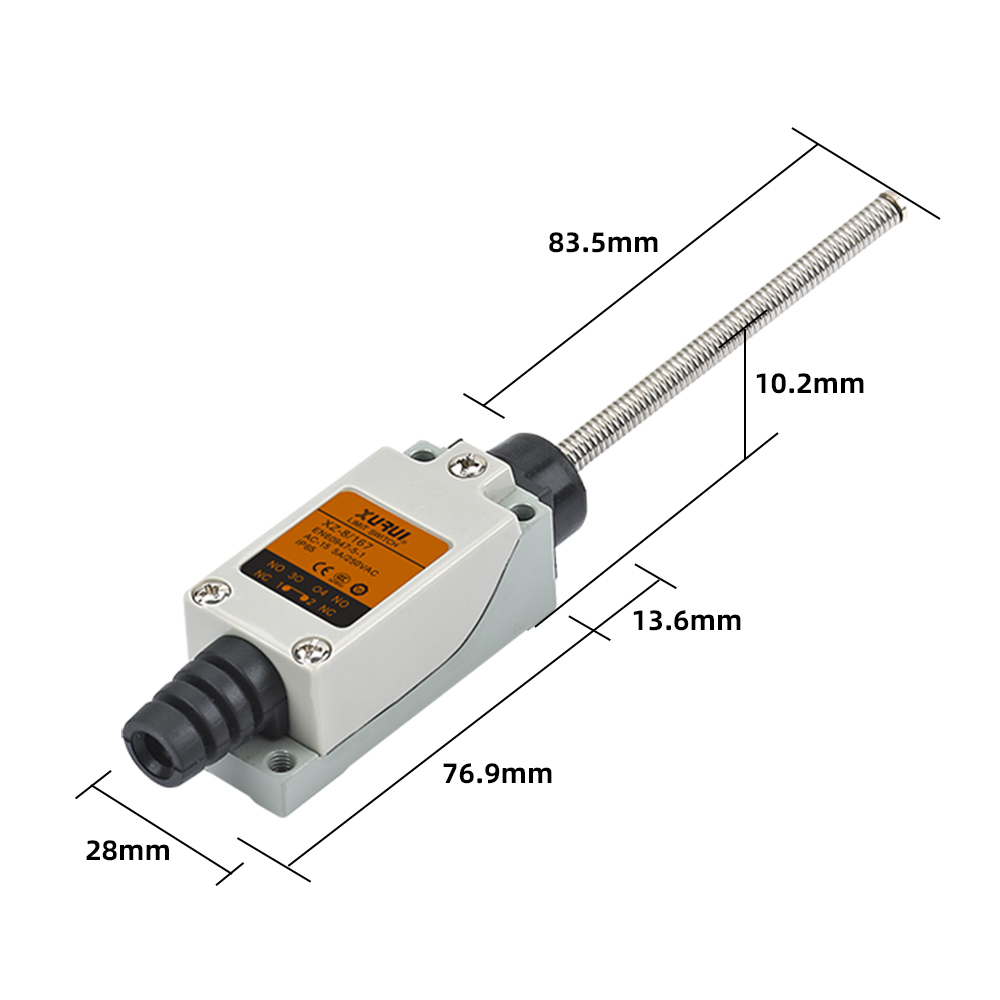

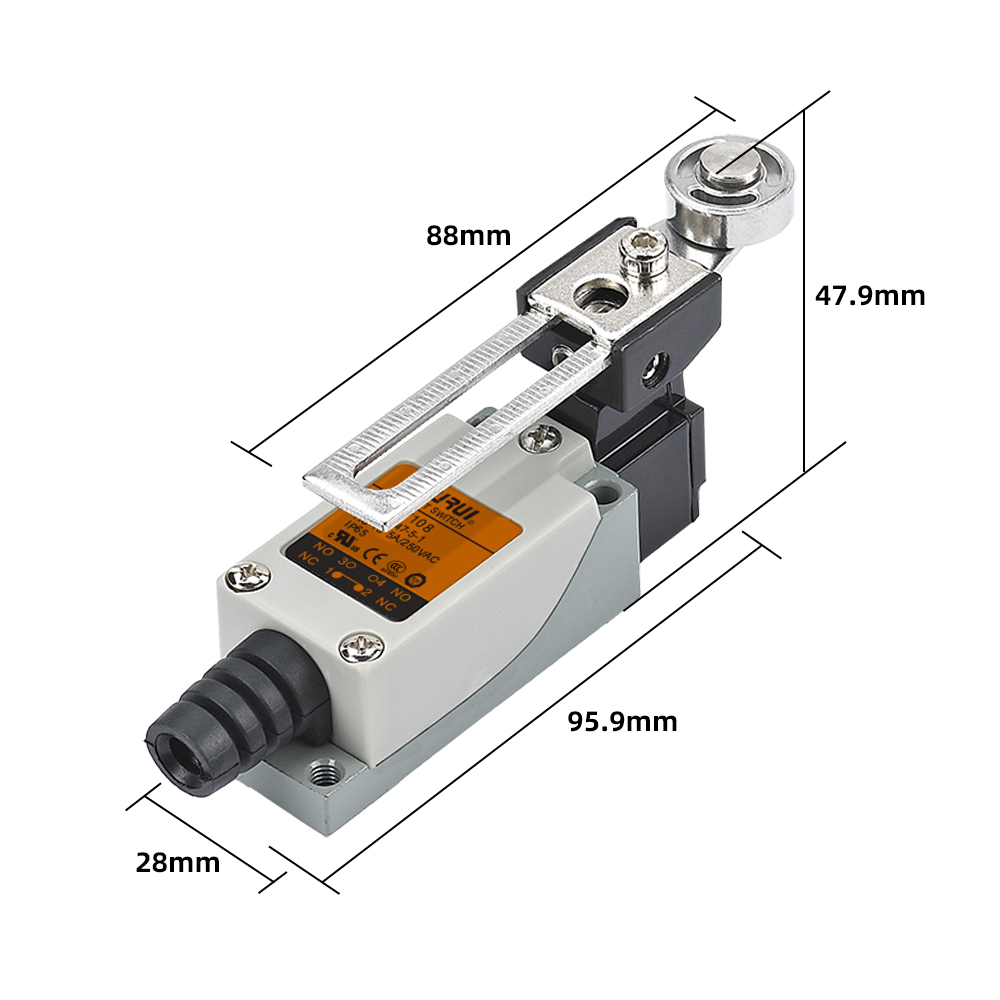

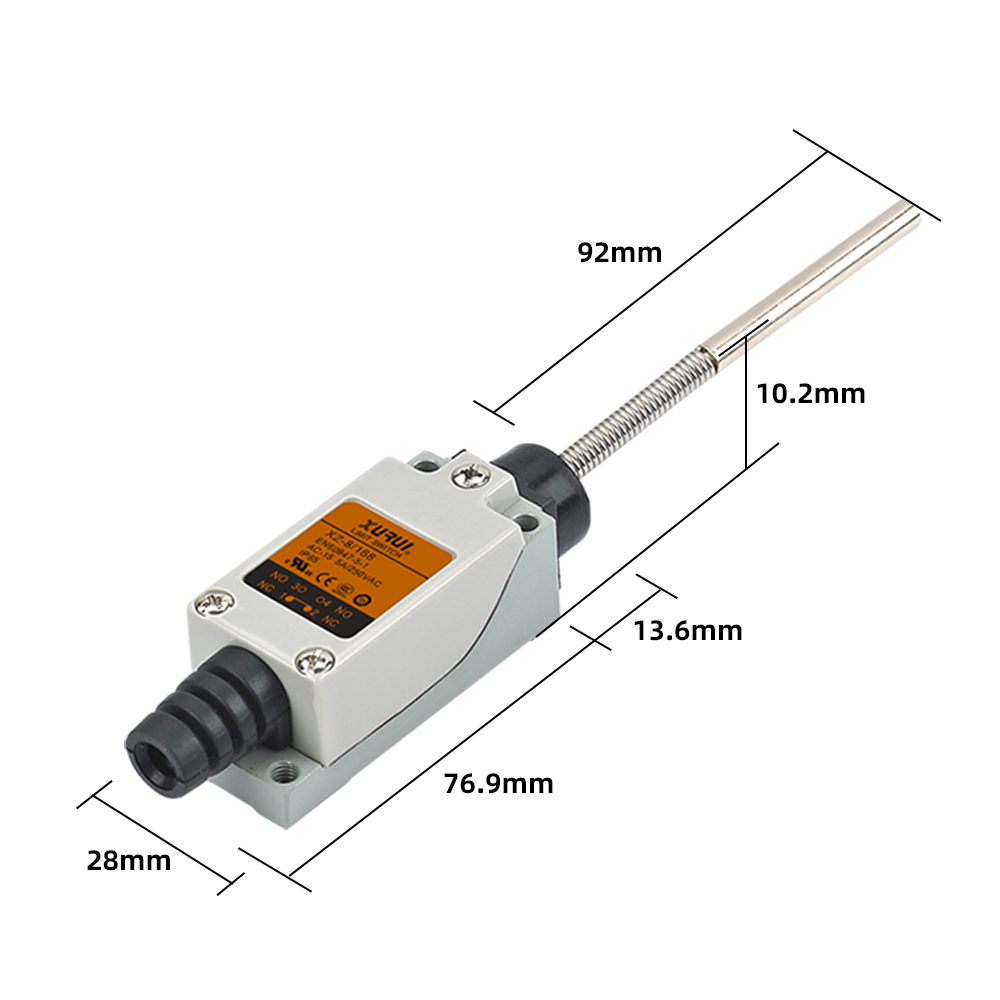

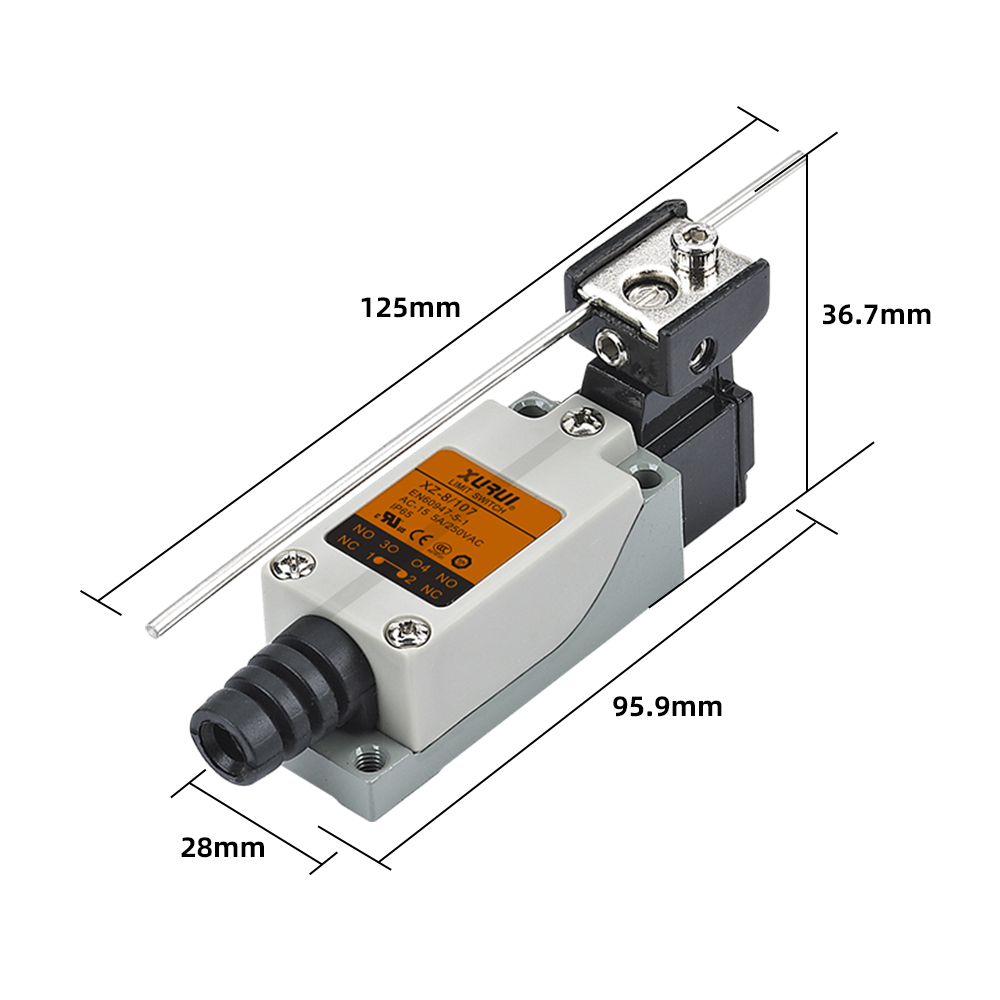

Specifications
ltemData
Rating load5A/250VAC
Operation speed0.1mm-50cm/s
Operation frequencyMechanical120 times/min
Electrical30 times/min
Insulation resistance100mΩ Above DC500V
Contact resistance25mΩ initial value
Withstand voltageNon-connection wire1000VAC
Every terminal1500VAC
VibrationMisoperation10-55Hz Amplitude 1.5mm
lmpactDurable1000m/s²
Misoperation300m/s²
LifeElectrical100,000 Ops above
Mechanical1.000,000 Ops above
Protection degreeIP65
Operating temperature-20~+60℃
Operating humidity< 85%
Product Certification
  • 01Certification for the Chinese market

    Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.

    Certification for the Chinese market Certification for the Chinese market
  • 02EU Market Certification

    Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.

    EU Market Certification EU Market Certification EU Market Certification
  • 03North American Market Certification

    UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.

    North American Market Certification
  • 04Japanese, Korean, and Asian markets

    Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.

    Japanese, Korean, and Asian markets
Product Introduction & Process
  • 1
    Raw Material Inspection

    Metal housings, engineering plastics, silver-alloy contacts, copper terminals, springs, sealing rings, shafts, rollers, and cable glands are inspected before production. Material composition, dimensions, surface condition, hardness, and electrical conductivity are verified according to the relevant specifications.

    2
    Housing Forming and Machining

    Metal housings are produced through precision die casting, while plastic housings are formed by injection molding. Mounting holes, threaded cable entries, shaft openings, and actuator interfaces are subsequently machined to ensure dimensional accuracy and installation compatibility.

    3
    Deburring and Surface Treatment

    Cast and machined components are deburred, polished, and cleaned. Metal parts may undergo zinc plating, nickel plating, electrophoretic coating, or other corrosion-resistant surface treatments to improve durability in industrial environments.

    4
    Terminal and Contact Manufacturing

    Copper-alloy strips are precision stamped to form terminals, contact arms, and conductive components. Silver-alloy contact points are securely riveted or welded onto the contact carriers to provide low contact resistance and stable electrical performance.

    5
    Spring and Snap-Action Mechanism Production

    Springs, contact blades, and elastic components are formed using controlled stamping and bending processes. Spring force, elasticity, hardness, and dimensional consistency are checked to ensure accurate switching action and reliable return performance.

    6
    Internal Contact Module Assembly

    Terminals, fixed contacts, movable contacts, springs, plungers, cams, and insulating components are assembled into the internal switching module. Assembly fixtures are used to maintain the correct contact gap, alignment, and operating sequence.

    7
    Actuator Head Assembly

    Depending on the model, pin plungers, roller plungers, roller levers, adjustable arms, spring rods, or rotary operating heads are installed. Moving components are lubricated where necessary to reduce friction and ensure smooth mechanical operation.

    8
    Housing Sealing and Final Assembly

    The internal switching module is installed into the housing. Gaskets, O-rings, cable glands, terminal covers, and sealing components are assembled to provide protection against dust, oil, moisture, and industrial contaminants.

    9
    Operating Parameter Calibration

    Operating position, release position, pre-travel, over-travel, movement differential, and operating force are measured and adjusted. The actuator must repeatedly switch at the specified position without sticking, excessive friction, or abnormal noise.

    10
    Electrical Performance Testing

    Each unit is tested for contact continuity, contact resistance, insulation resistance, dielectric strength, terminal accuracy, and switching sequence. Normally open and normally closed circuits are verified individually.

    11
    Mechanical and Environmental Verification

    Sample units undergo mechanical endurance, electrical endurance, vibration, impact, temperature, humidity, and ingress protection testing according to the applicable product specification.

    12
    Final Inspection and Packaging

    Product appearance, actuator movement, terminal markings, mounting dimensions, screws, covers, and accessories are inspected. Approved products are labeled, batch-coded, packed, and released for shipment with full traceability.
