XZ-95M Series Metal Multi-Entry Limit Switch (10A)

The XZ95M Series Metal Multi-Entry Limit Switch is a heavy-duty industrial position detection switch designed for harsh industrial environments and demanding automation applications. Featuring a robust zinc alloy housing, multi-direction cable entry design, double-circuit contact structure, and a variety of actuator options, the XZ95M series delivers reliable switching performance, excellent mechanical durability, and flexible installation.

With a 10A switching capacity, IP65 protection rating, and mechanical life exceeding one million operations, the XZ95M series is ideal for machine tools, material handling equipment, conveyors, packaging machinery, automated production lines, and industrial control systems requiring reliable position monitoring and limit control.

Rated Load: 10A / 250VAC

Auxiliary Rating: 3A / 124VAC, 0.27A / 250VDC

Protection Degree: IP65

Mechanical Life: ≥1,000,000 Operations

Electrical Life: ≥100,000 Operations

Operating Speed: 5mm – 0.5m/s

Operating Temperature: -10°C to +70°C

Insulation Resistance: ≥100MΩ (DC500V)

Contact Resistance: ≤25mΩ (Initial Value)

Housing Material: Zinc Alloy

Contact Configuration: 1NO + 1NC


Product Features
  • Suitable for Harsh Industrial Environments
    Suitable for Harsh Industrial Environments

    Designed to withstand demanding operating conditions in manufacturing and automation systems.

  • Flexible Industrial Installation
    Flexible Industrial Installation

    Compact structure with multiple wiring orientations allows easy integration into various equipment designs.

  • Excellent Electrical Reliability
    Excellent Electrical Reliability

    Low contact resistance and high insulation resistance ensure consistent switching performance.

  • High Mechanical Endurance
    High Mechanical Endurance

    Mechanical life exceeds one million operations, supporting long-term industrial use.

  • Reliable Position Detection
    Reliable Position Detection

    Accurately detects machine movement and position for safe and stable automation control.

  • Wide Range of Actuator Options
    Wide Range of Actuator Options

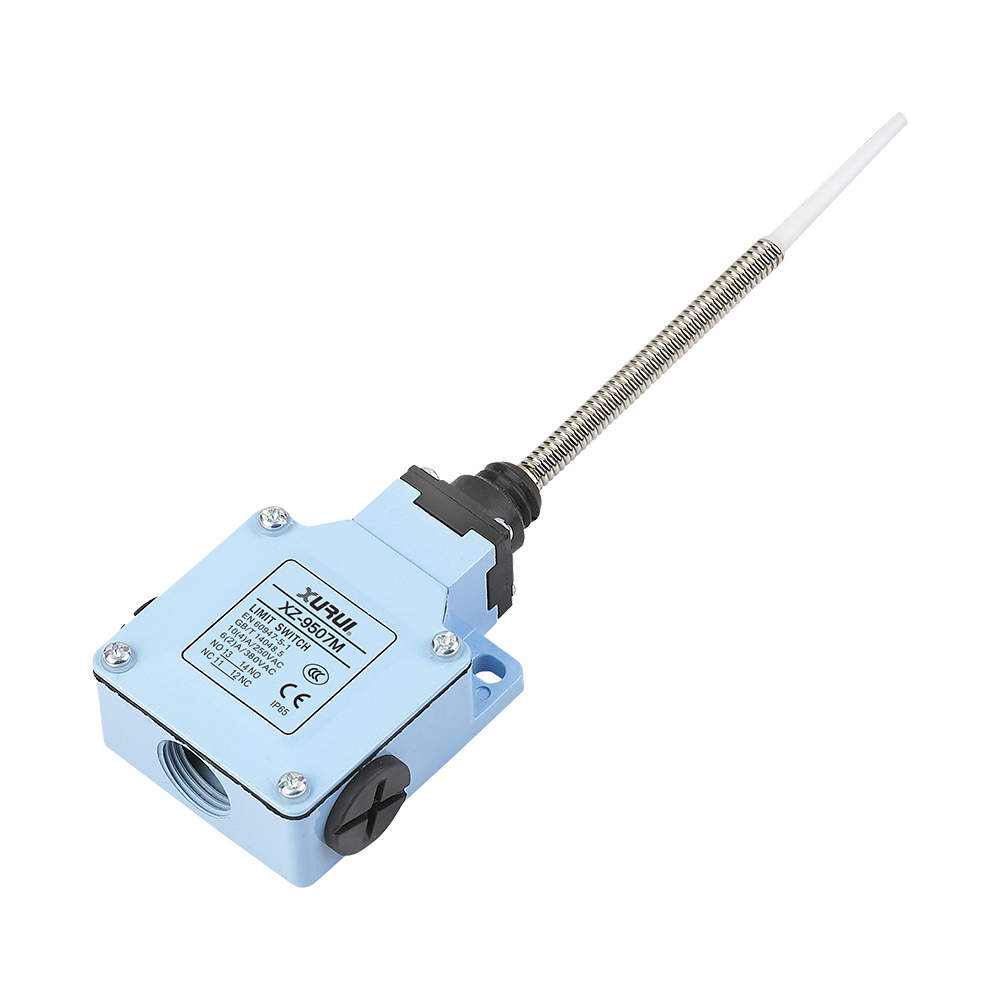

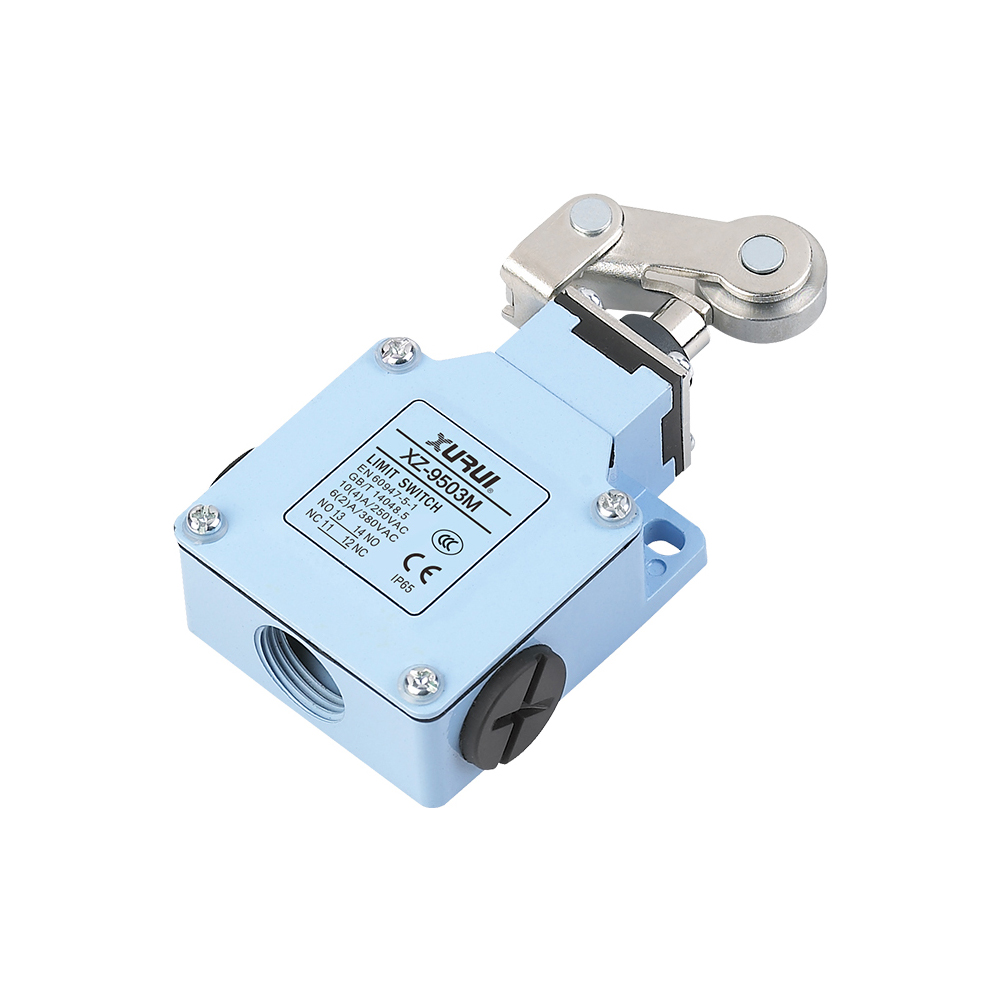

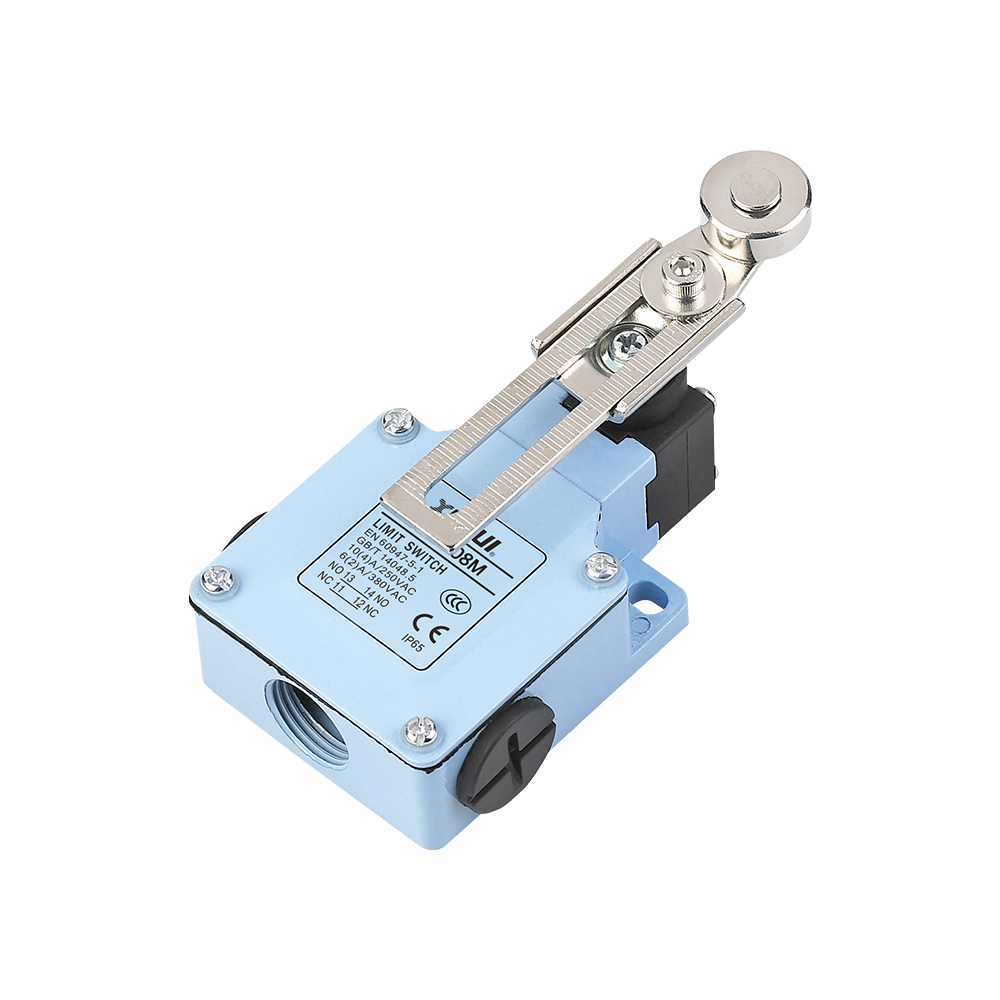

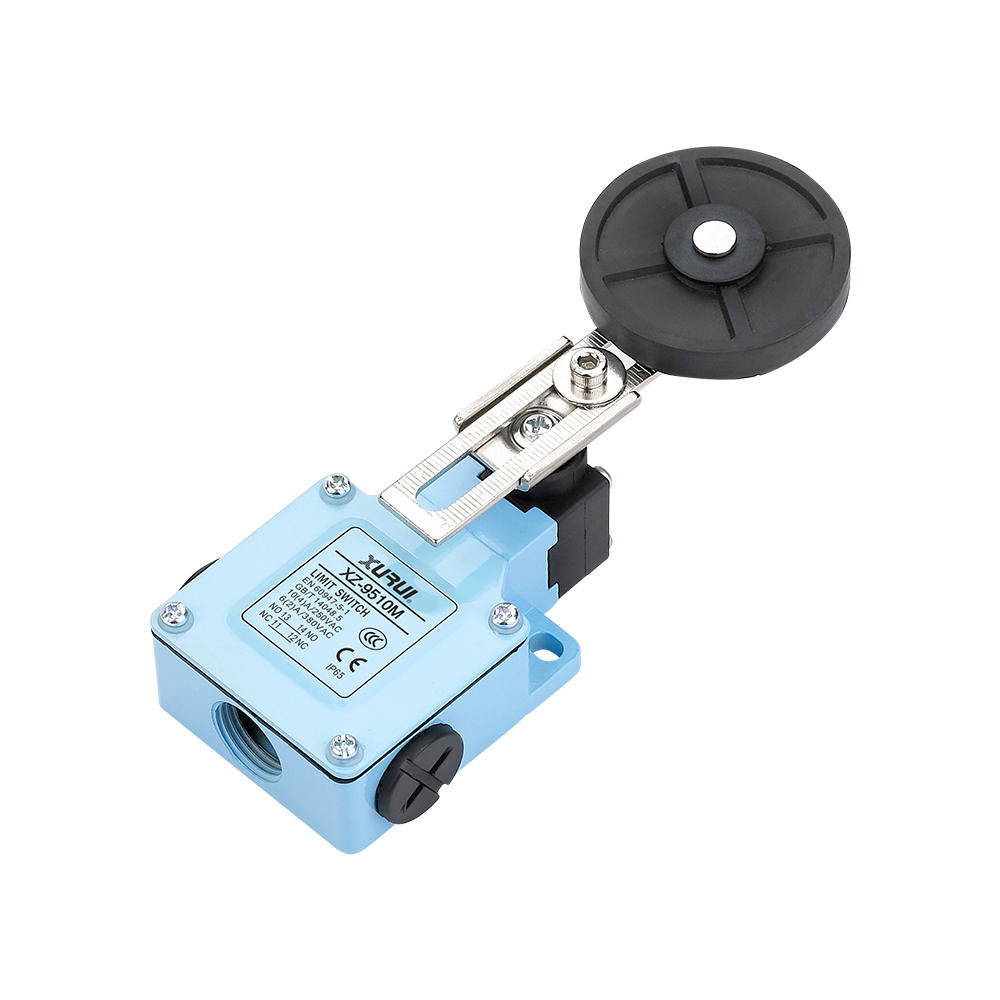

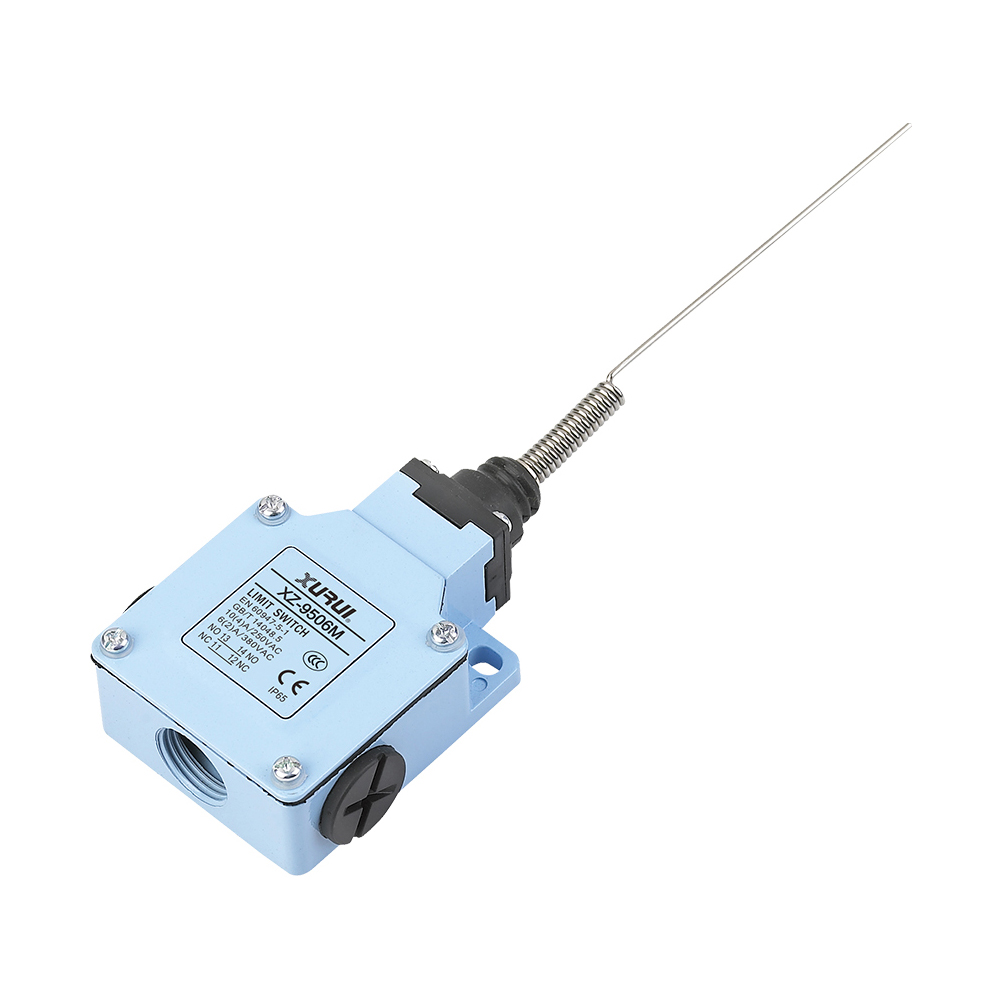

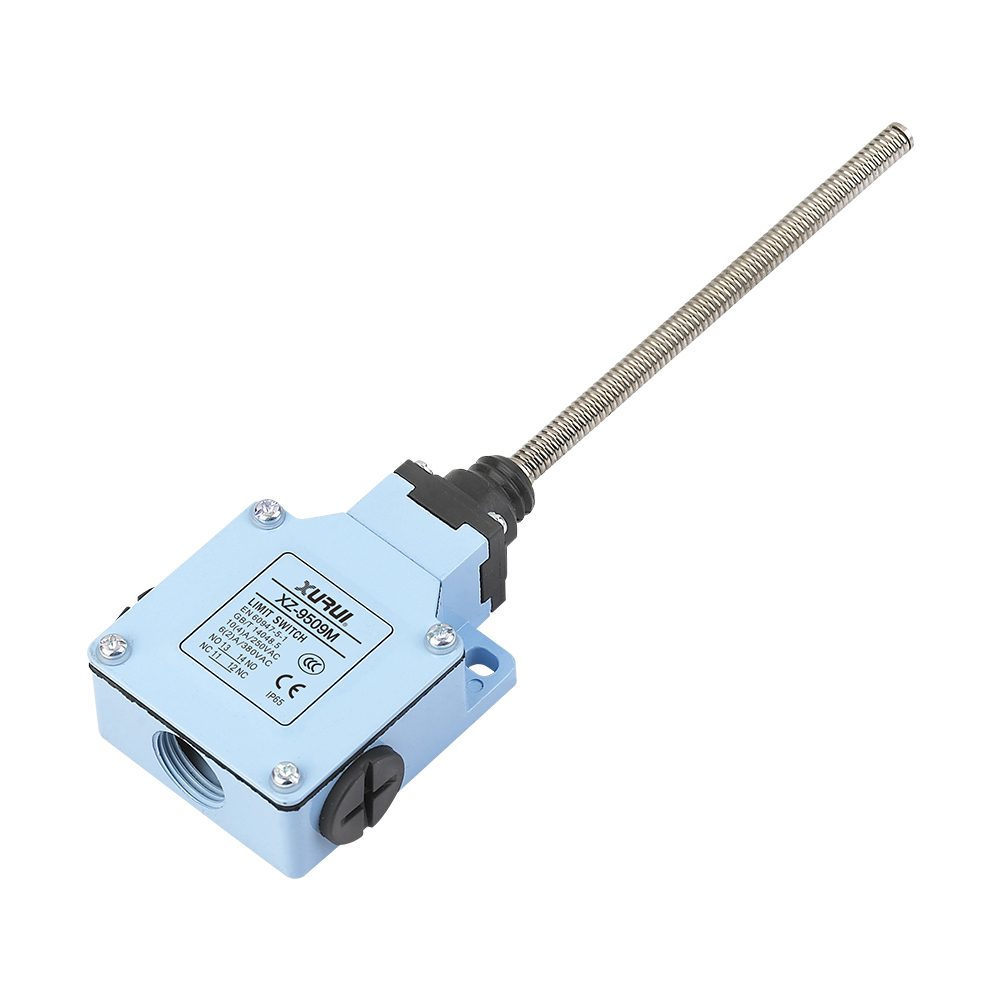

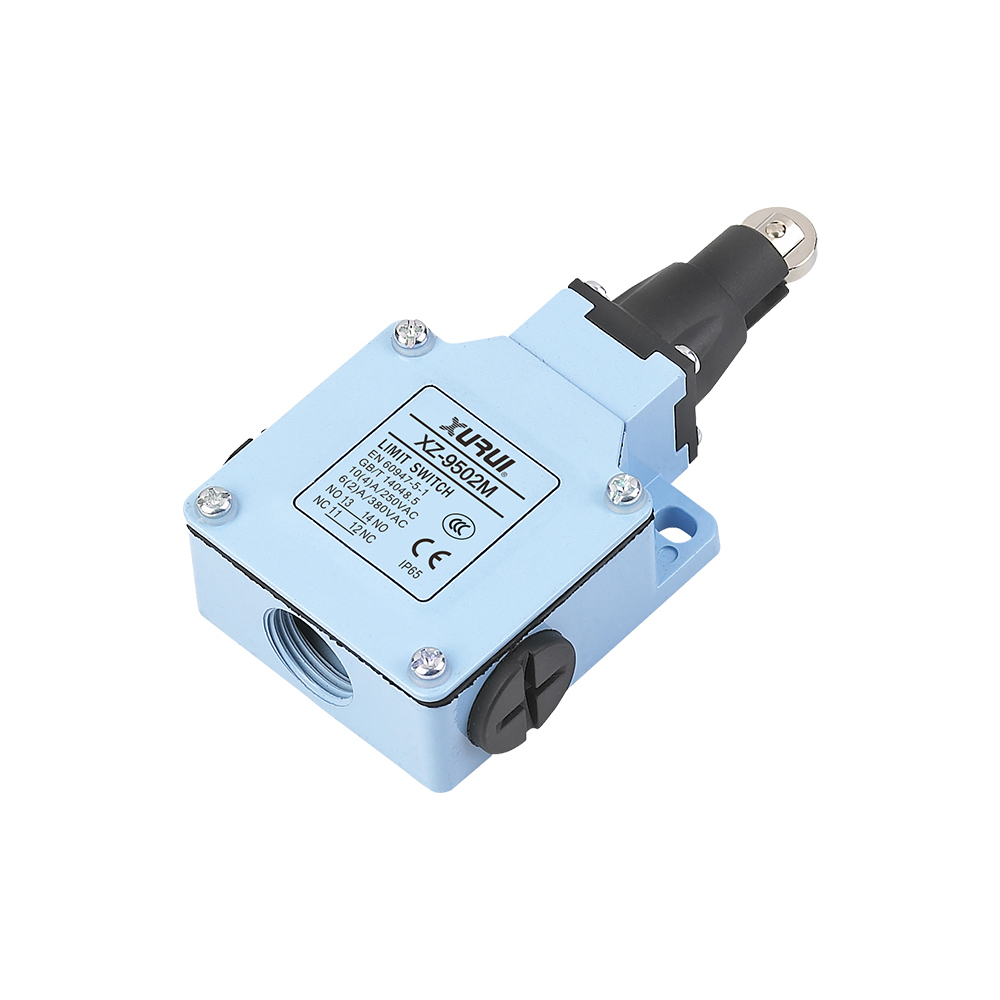

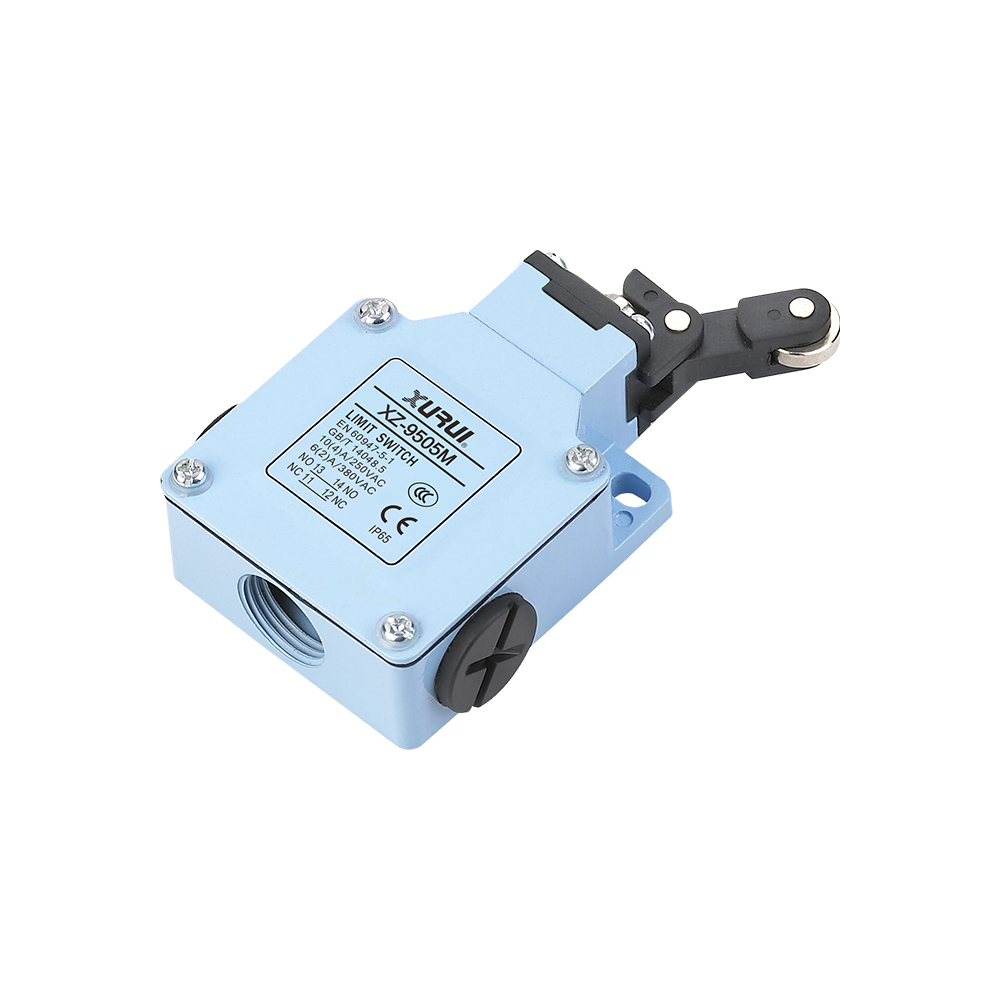

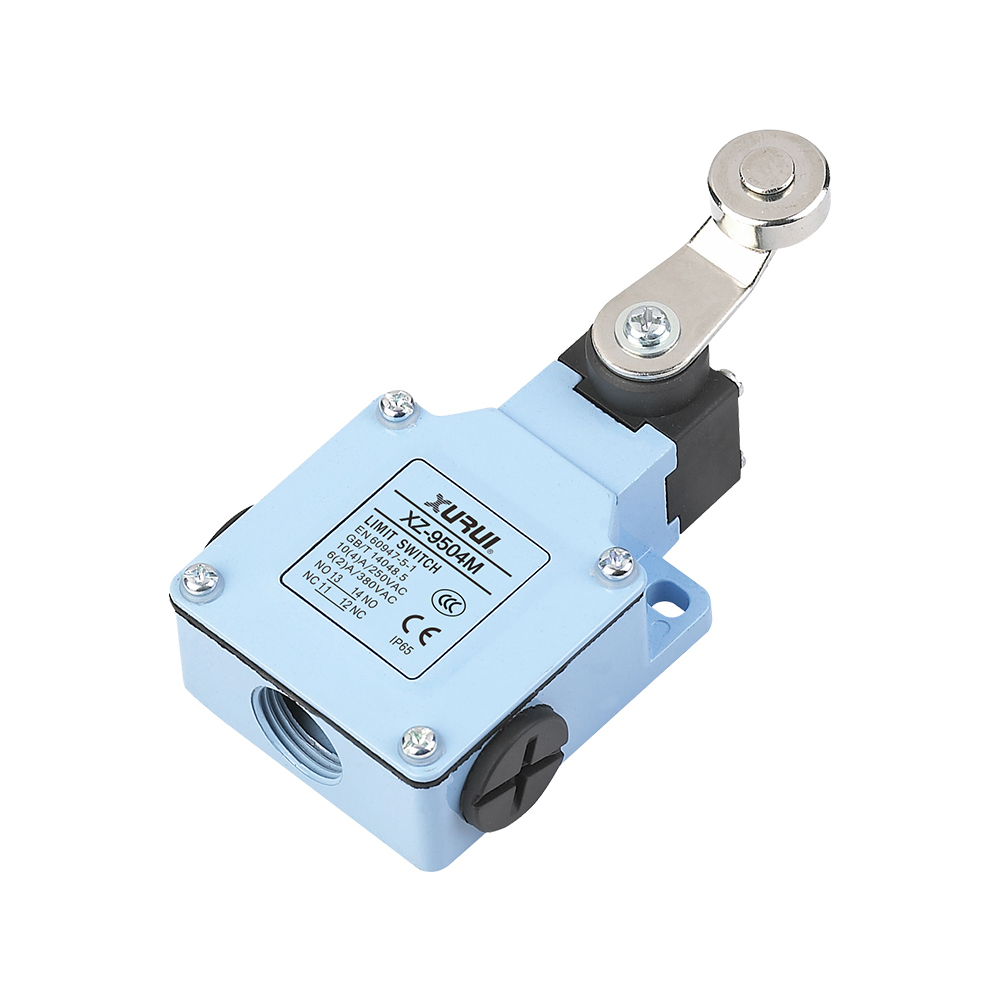

    Available with plunger, roller plunger, roller lever, adjustable roller arm, spring rod, and large roller actuators for diverse applications.

  • IP65 Environmental Protection
    IP65 Environmental Protection

    Provides dependable protection against dust, oil, water spray, and industrial contaminants.

  • Double-Circuit Contact Structure
    Double-Circuit Contact Structure

    Built-in dual-circuit design ensures reliable control and monitoring functions.

  • Multi-Direction Cable Entry Design
    Multi-Direction Cable Entry Design

    Multiple cable entry options simplify installation and wiring in complex machinery layouts.

  • Heavy-Duty Zinc Alloy Housing
    Heavy-Duty Zinc Alloy Housing

    Die-cast zinc alloy construction provides excellent mechanical strength, impact resistance, and long-term durability.

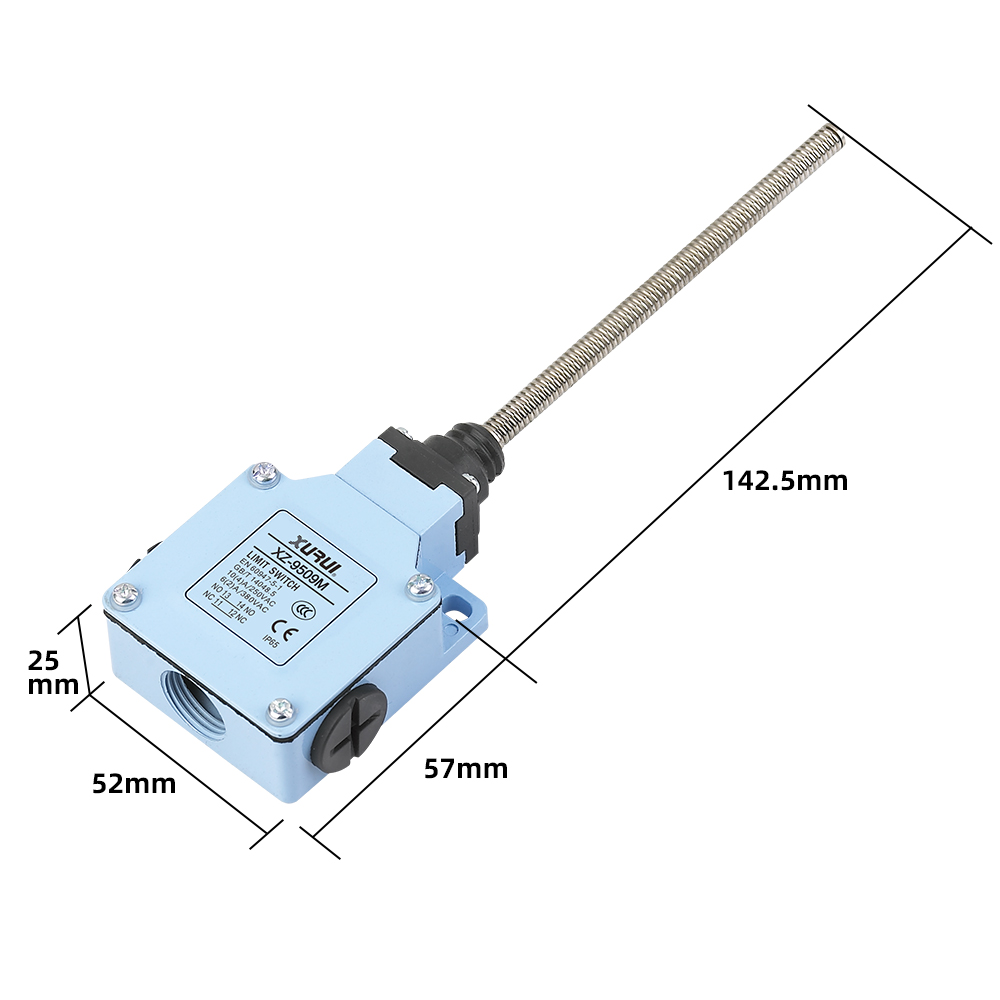

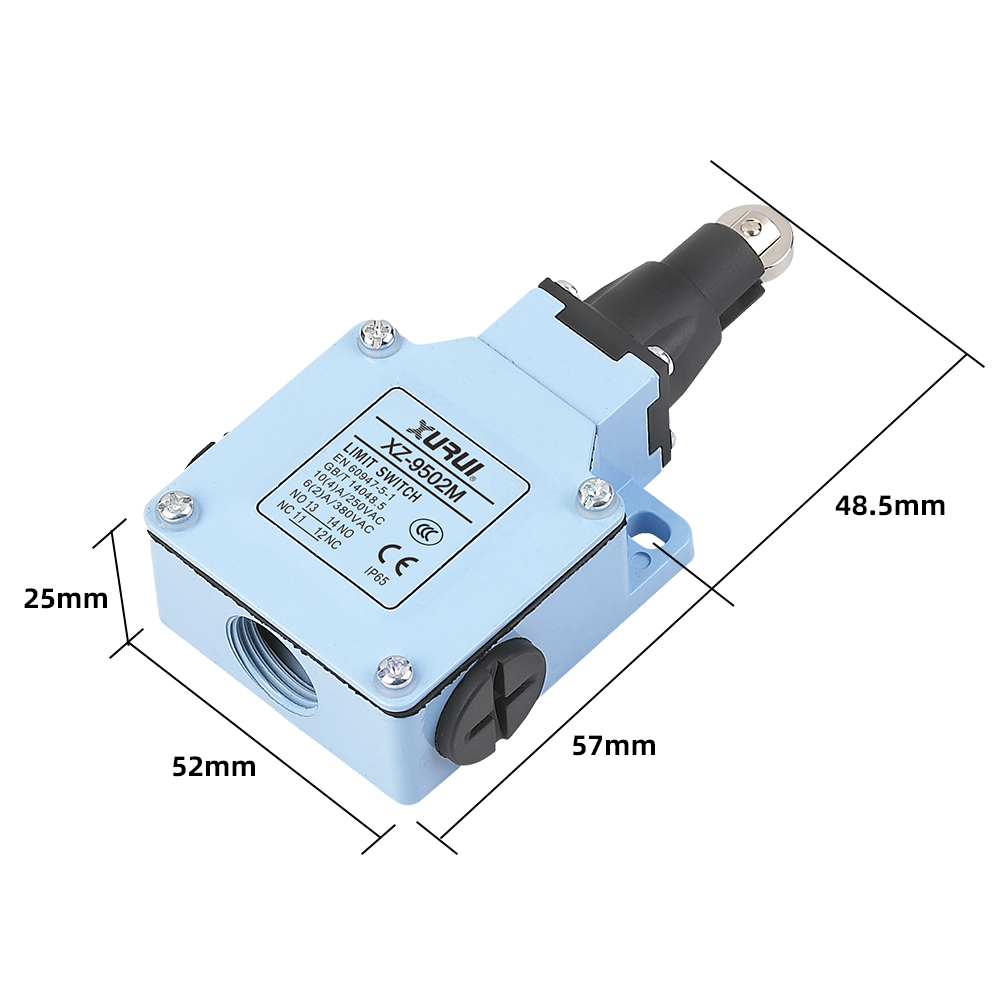

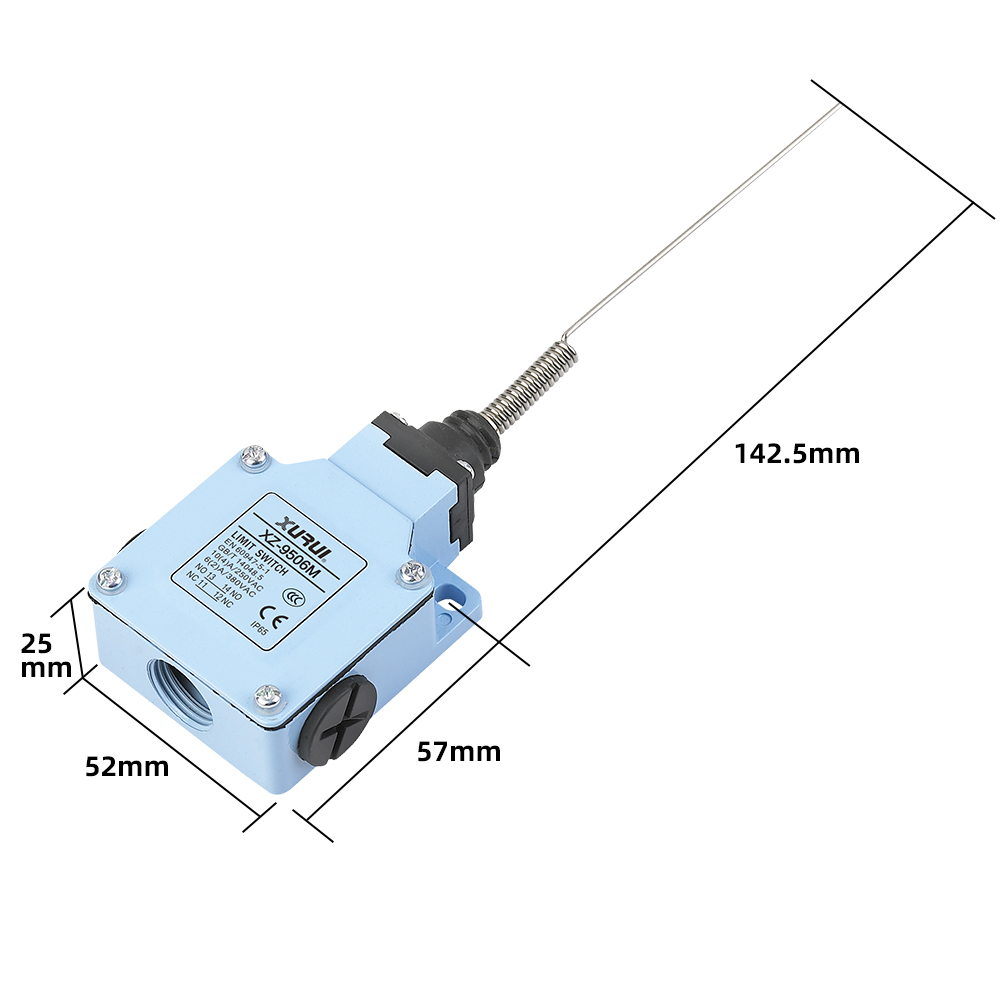

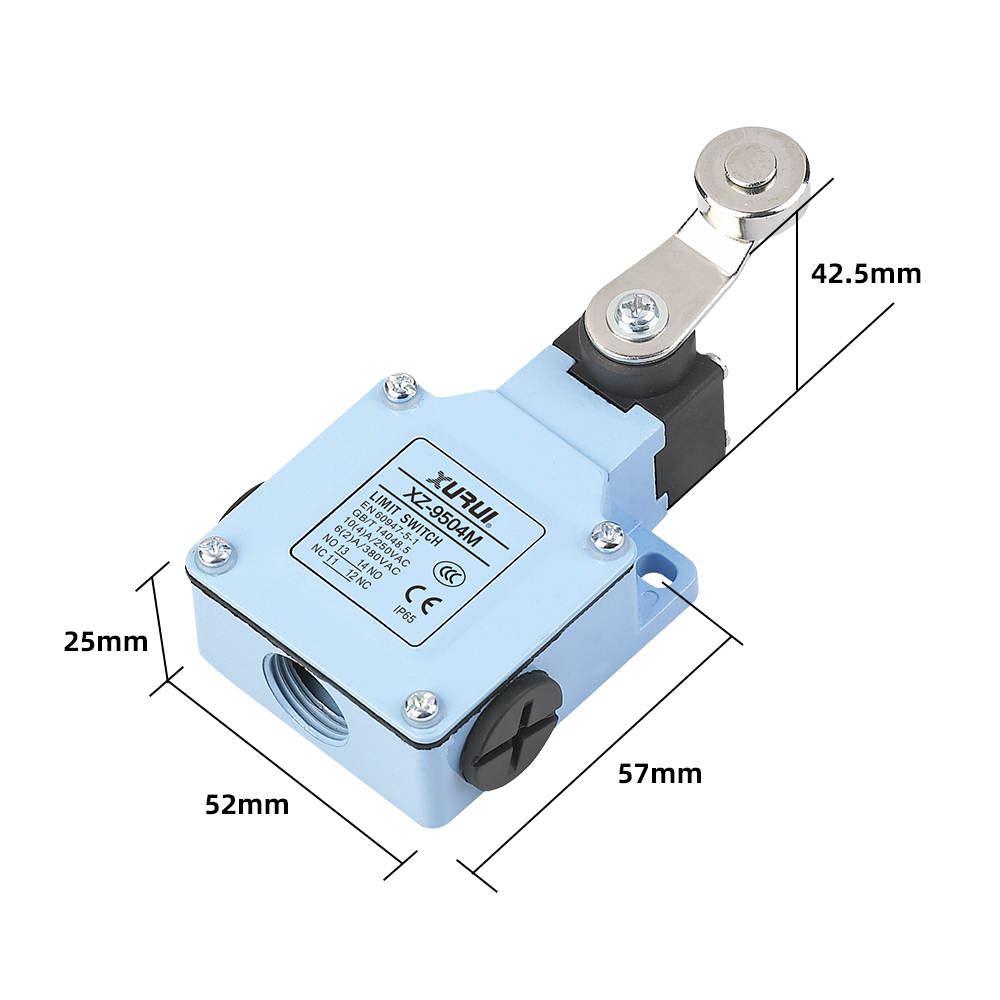

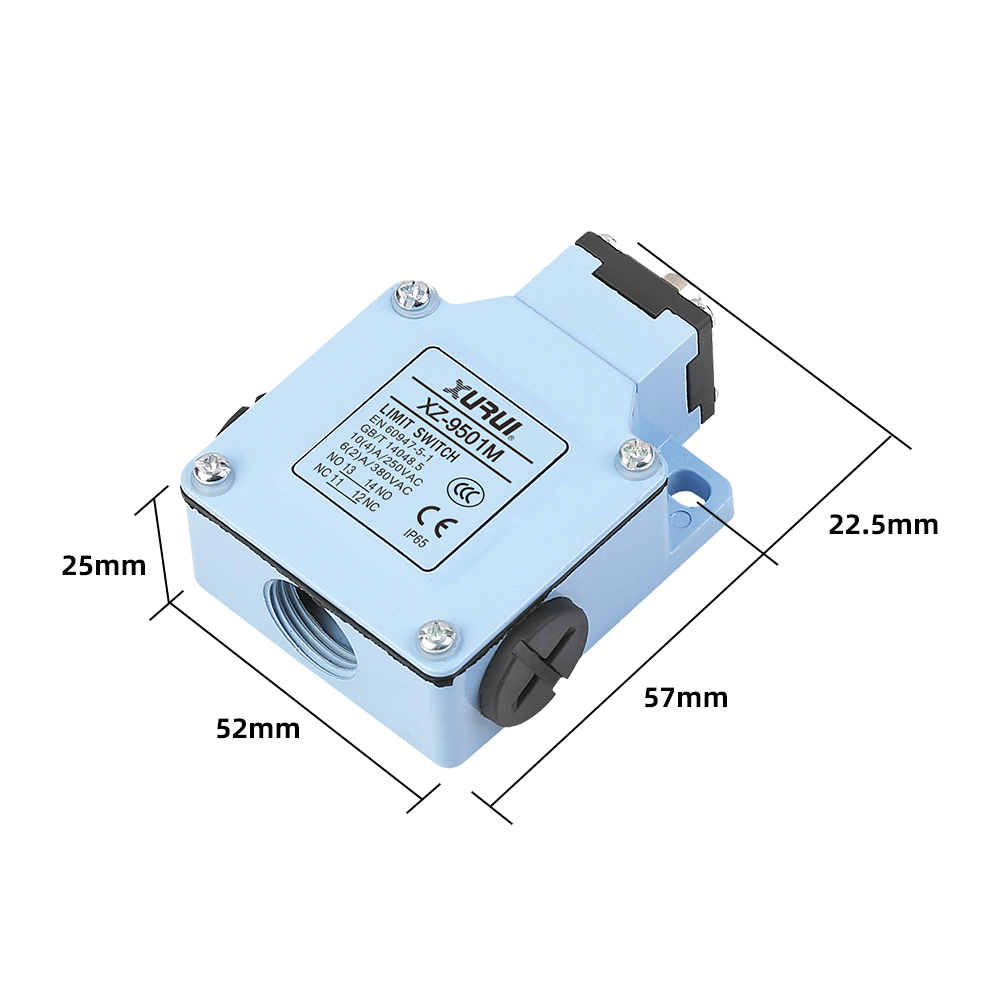

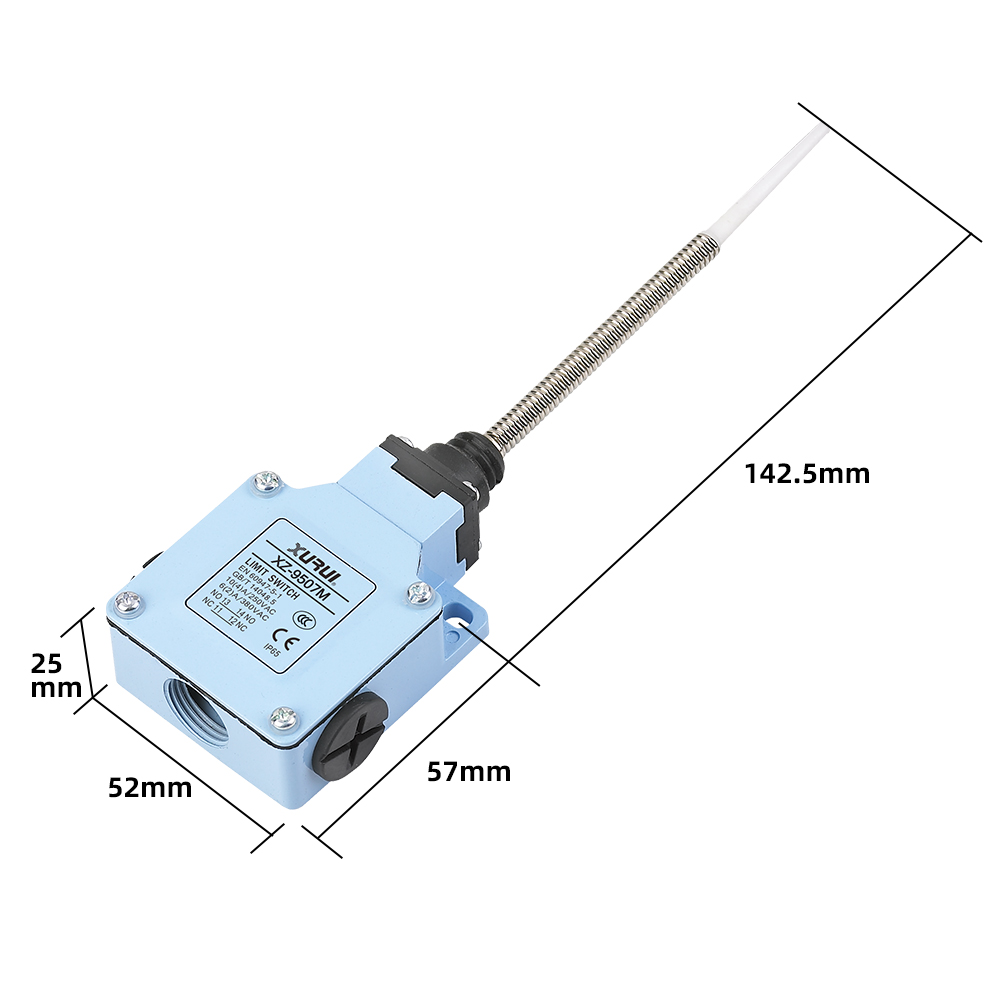

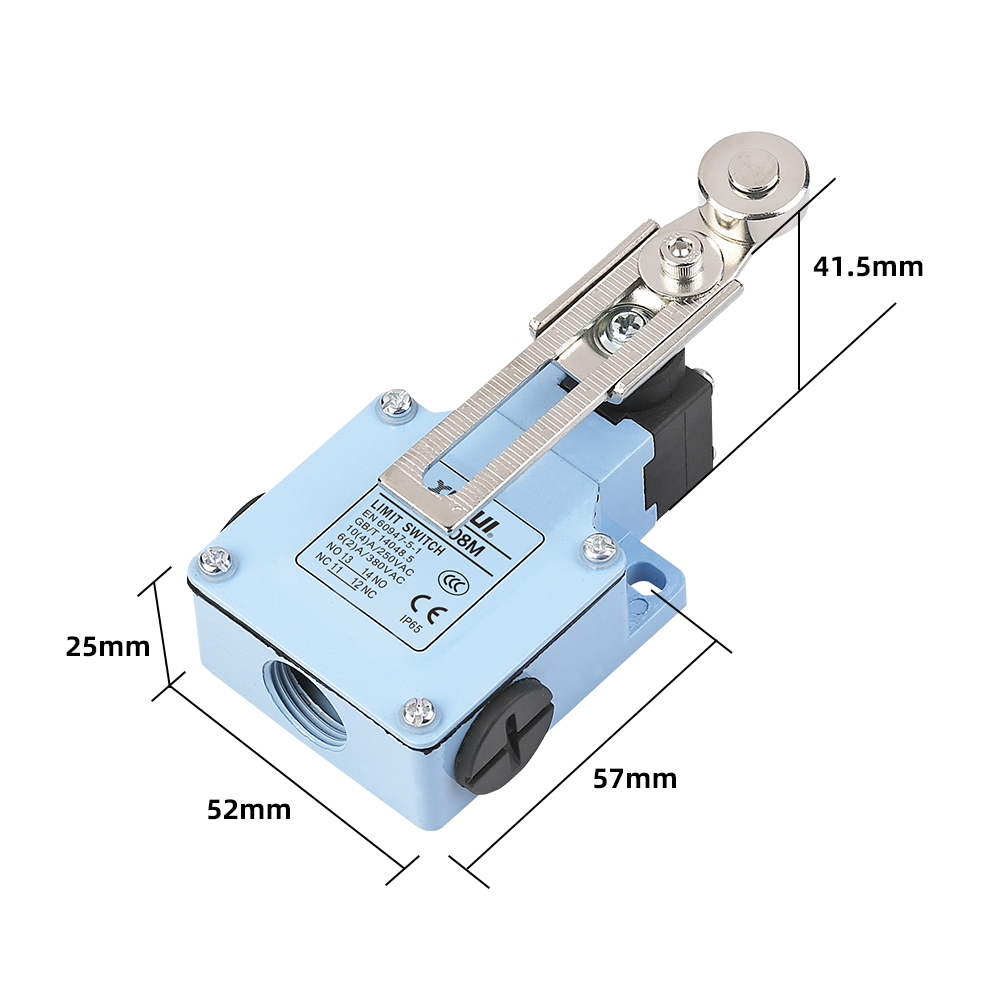

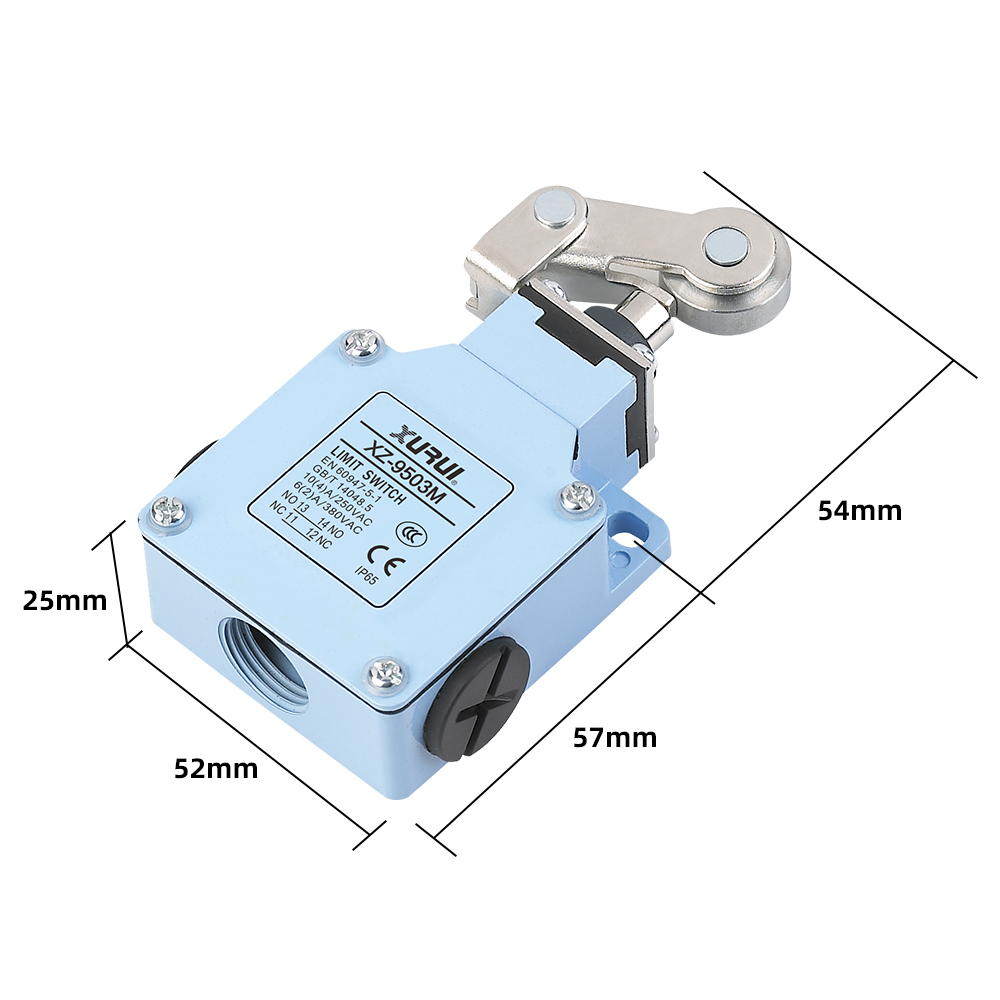

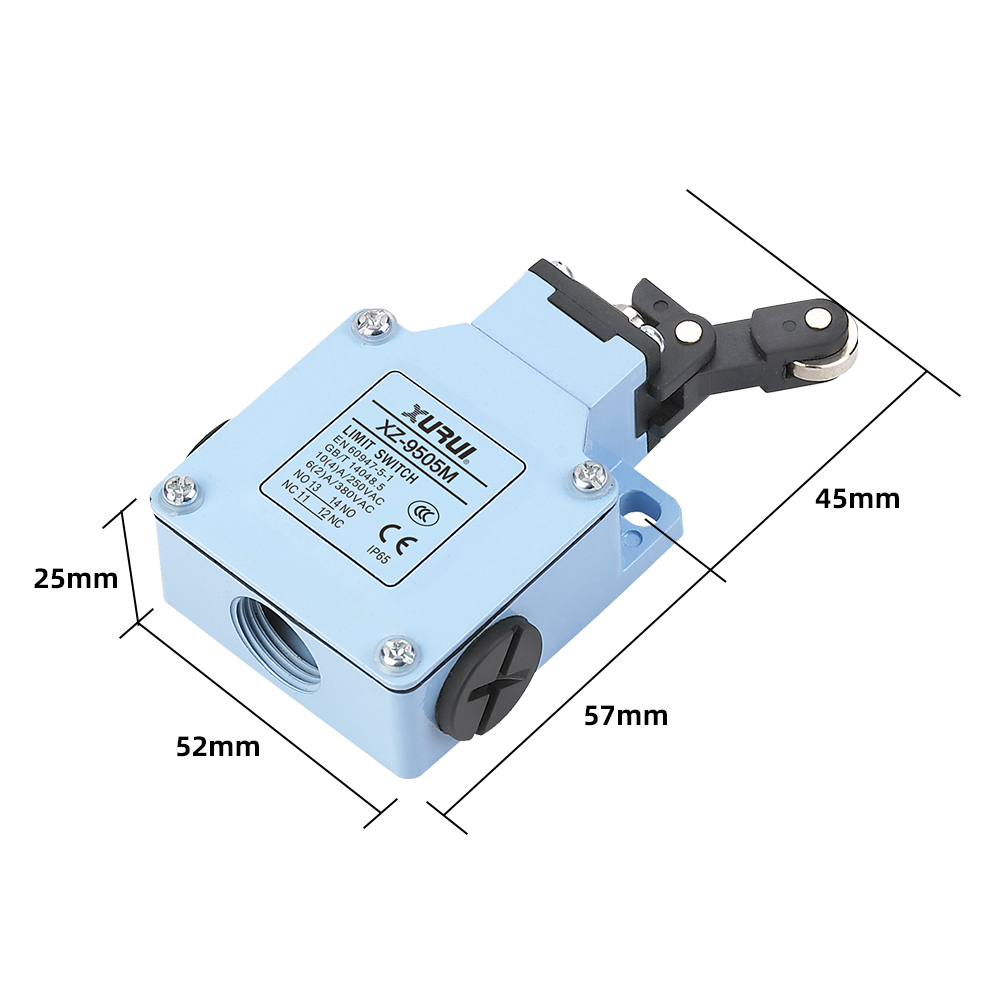

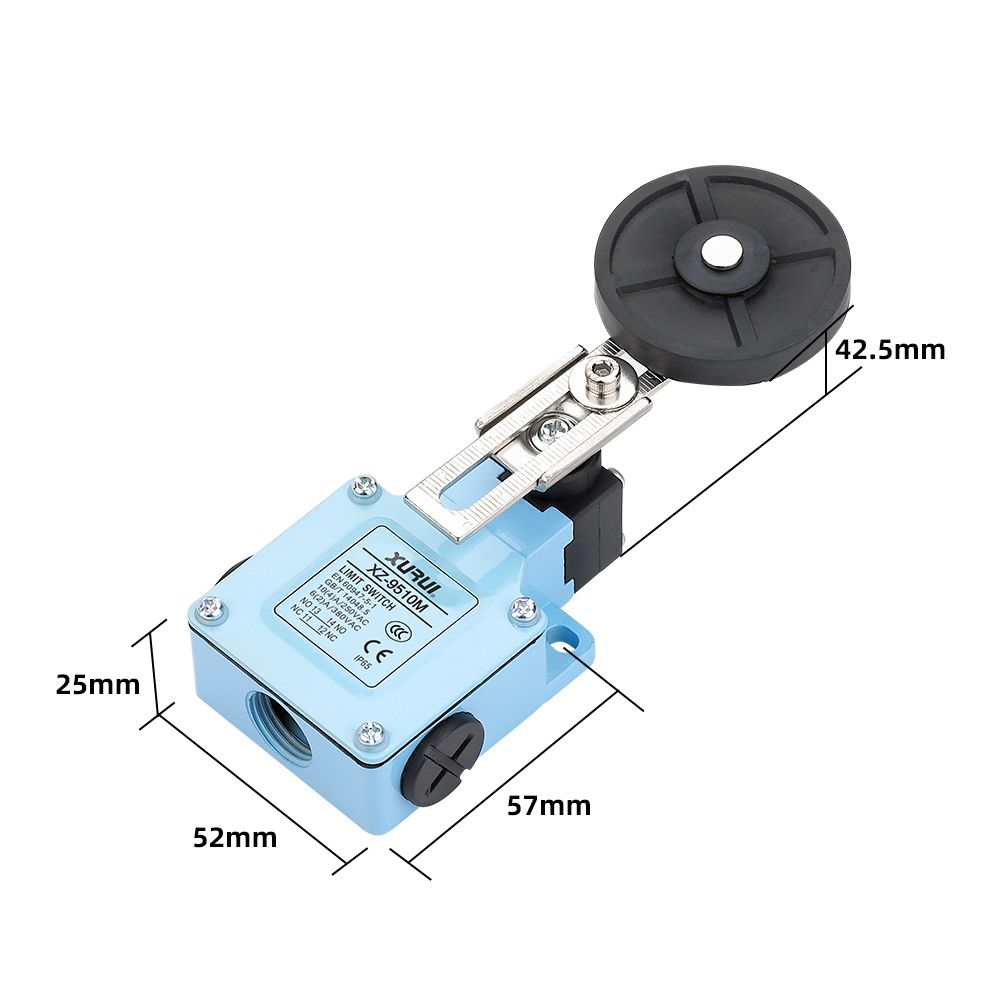

Specifications
Product Certification
  • 01Certification for the Chinese market

    Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.

    Certification for the Chinese market Certification for the Chinese market
  • 02EU Market Certification

    Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.

    EU Market Certification EU Market Certification EU Market Certification
  • 03North American Market Certification

    UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.

    North American Market Certification
  • 04Japanese, Korean, and Asian markets

    Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.

    Japanese, Korean, and Asian markets
Product Introduction & Process
  • 1
    Raw Material Inspection

    Metal housings, engineering plastics, silver-alloy contacts, copper terminals, springs, sealing rings, shafts, rollers, and cable glands are inspected before production. Material composition, dimensions, surface condition, hardness, and electrical conductivity are verified according to the relevant specifications.

    2
    Housing Forming and Machining

    Metal housings are produced through precision die casting, while plastic housings are formed by injection molding. Mounting holes, threaded cable entries, shaft openings, and actuator interfaces are subsequently machined to ensure dimensional accuracy and installation compatibility.

    3
    Deburring and Surface Treatment

    Cast and machined components are deburred, polished, and cleaned. Metal parts may undergo zinc plating, nickel plating, electrophoretic coating, or other corrosion-resistant surface treatments to improve durability in industrial environments.

    4
    Terminal and Contact Manufacturing

    Copper-alloy strips are precision stamped to form terminals, contact arms, and conductive components. Silver-alloy contact points are securely riveted or welded onto the contact carriers to provide low contact resistance and stable electrical performance.

    5
    Spring and Snap-Action Mechanism Production

    Springs, contact blades, and elastic components are formed using controlled stamping and bending processes. Spring force, elasticity, hardness, and dimensional consistency are checked to ensure accurate switching action and reliable return performance.

    6
    Internal Contact Module Assembly

    Terminals, fixed contacts, movable contacts, springs, plungers, cams, and insulating components are assembled into the internal switching module. Assembly fixtures are used to maintain the correct contact gap, alignment, and operating sequence.

    7
    Actuator Head Assembly

    Depending on the model, pin plungers, roller plungers, roller levers, adjustable arms, spring rods, or rotary operating heads are installed. Moving components are lubricated where necessary to reduce friction and ensure smooth mechanical operation.

    8
    Housing Sealing and Final Assembly

    The internal switching module is installed into the housing. Gaskets, O-rings, cable glands, terminal covers, and sealing components are assembled to provide protection against dust, oil, moisture, and industrial contaminants.

    9
    Operating Parameter Calibration

    Operating position, release position, pre-travel, over-travel, movement differential, and operating force are measured and adjusted. The actuator must repeatedly switch at the specified position without sticking, excessive friction, or abnormal noise.

    10
    Electrical Performance Testing

    Each unit is tested for contact continuity, contact resistance, insulation resistance, dielectric strength, terminal accuracy, and switching sequence. Normally open and normally closed circuits are verified individually.

    11
    Mechanical and Environmental Verification

    Sample units undergo mechanical endurance, electrical endurance, vibration, impact, temperature, humidity, and ingress protection testing according to the applicable product specification.

    12
    Final Inspection and Packaging

    Product appearance, actuator movement, terminal markings, mounting dimensions, screws, covers, and accessories are inspected. Approved products are labeled, batch-coded, packed, and released for shipment with full traceability.
