The XV-15 Series Miniature Micro Switch is a compact snap-action switch designed for industrial control equipment, household appliances, automation systems, vending machines, communication equipment, instrumentation, automotive electronics, and various electrical control applications.
Featuring a miniature housing design, high switching capacity up to 15A, fast snap-action mechanism, high sensitivity, and multiple actuator options, the XV-15 series provides accurate and reliable switching performance in both industrial and commercial applications.

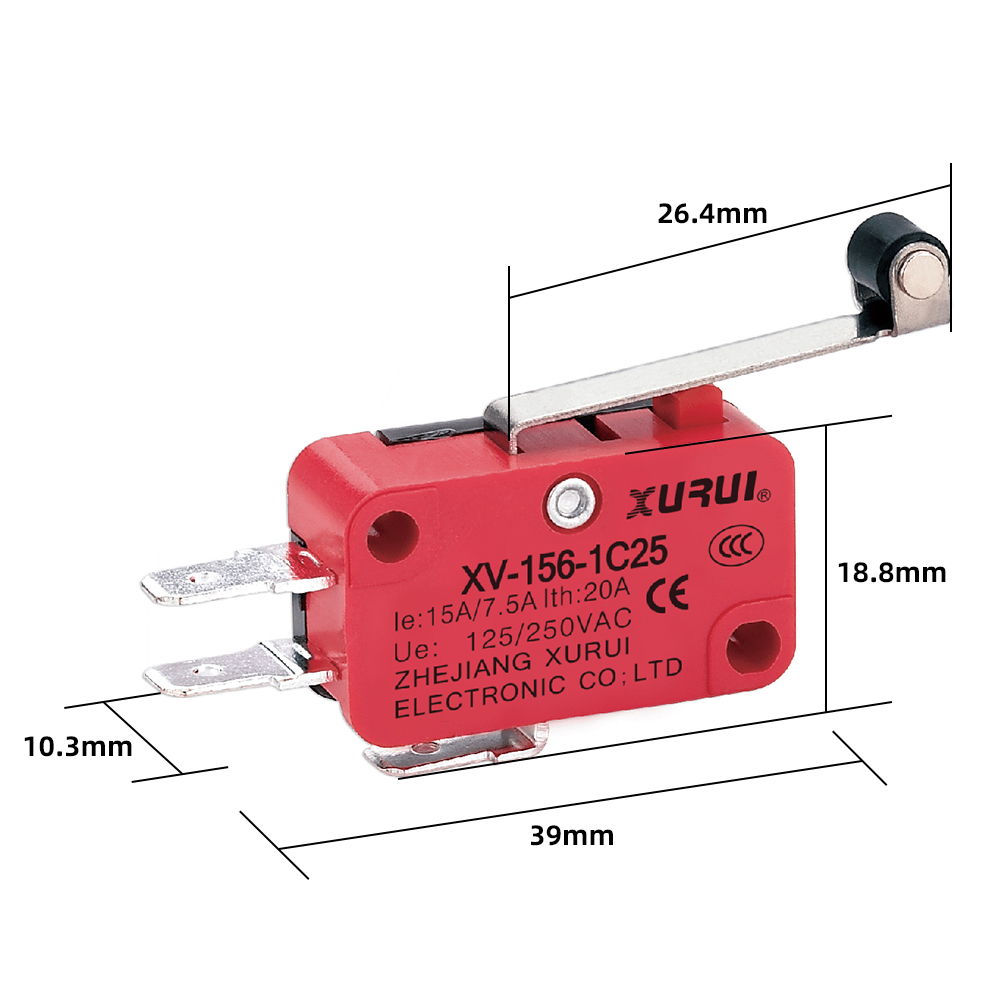

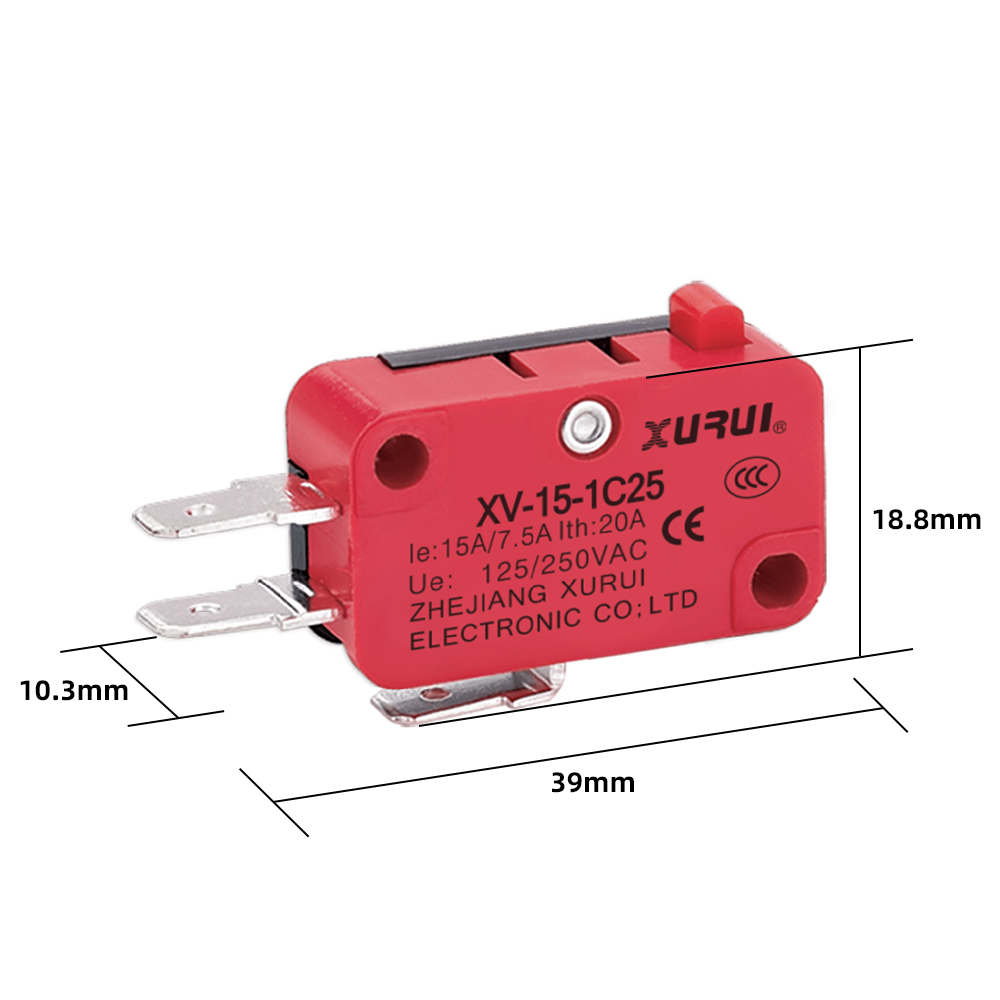

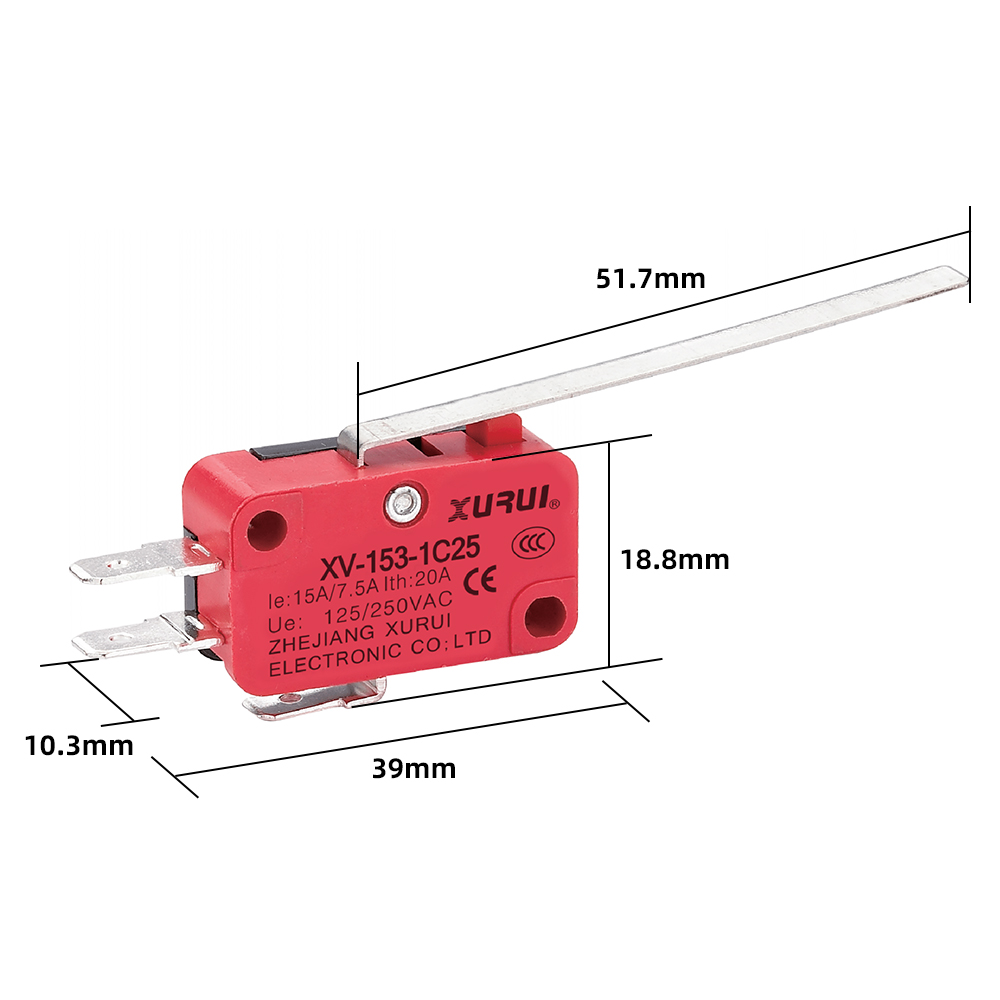

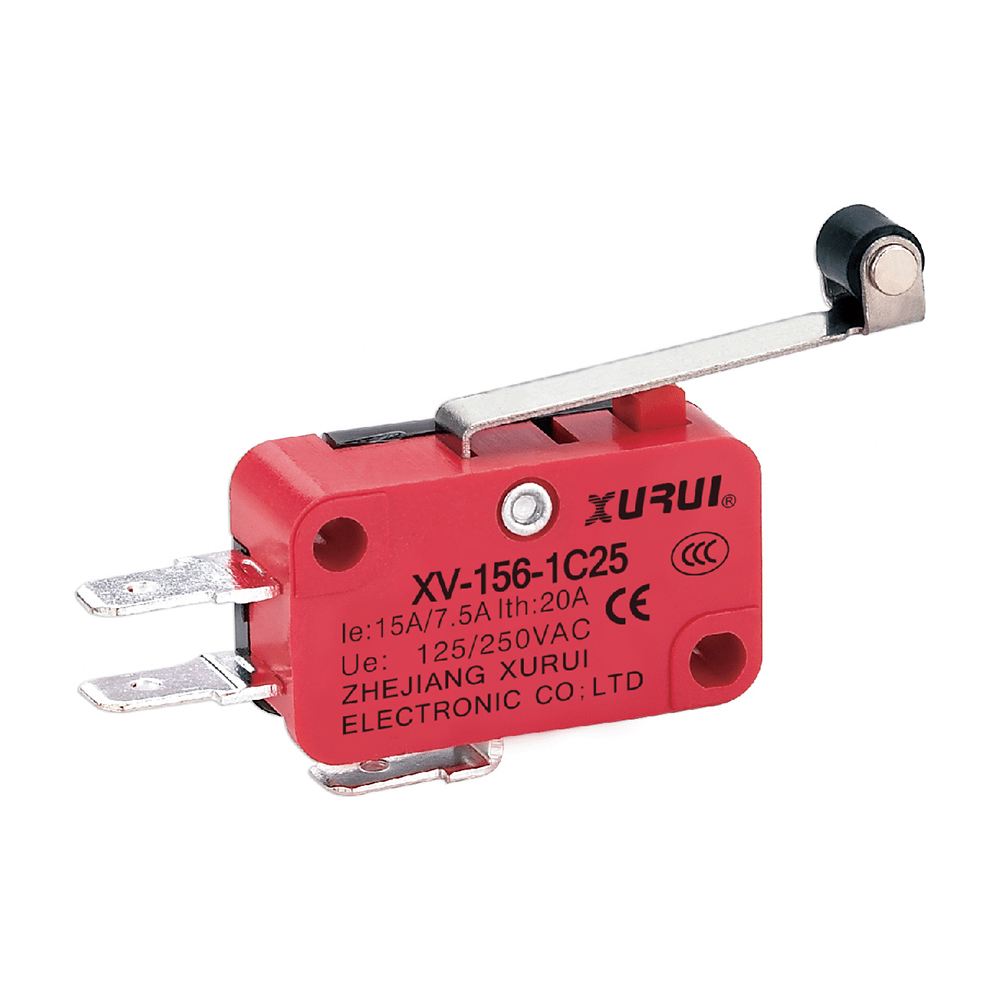

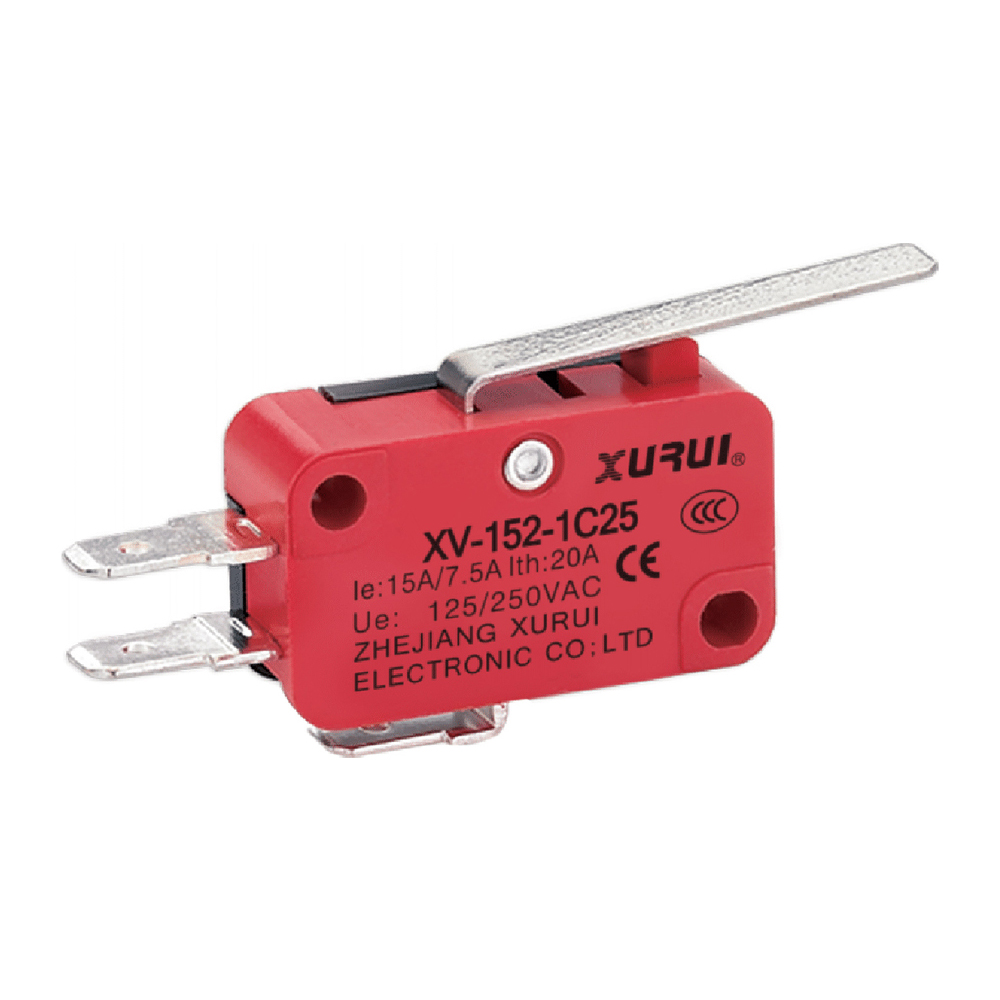

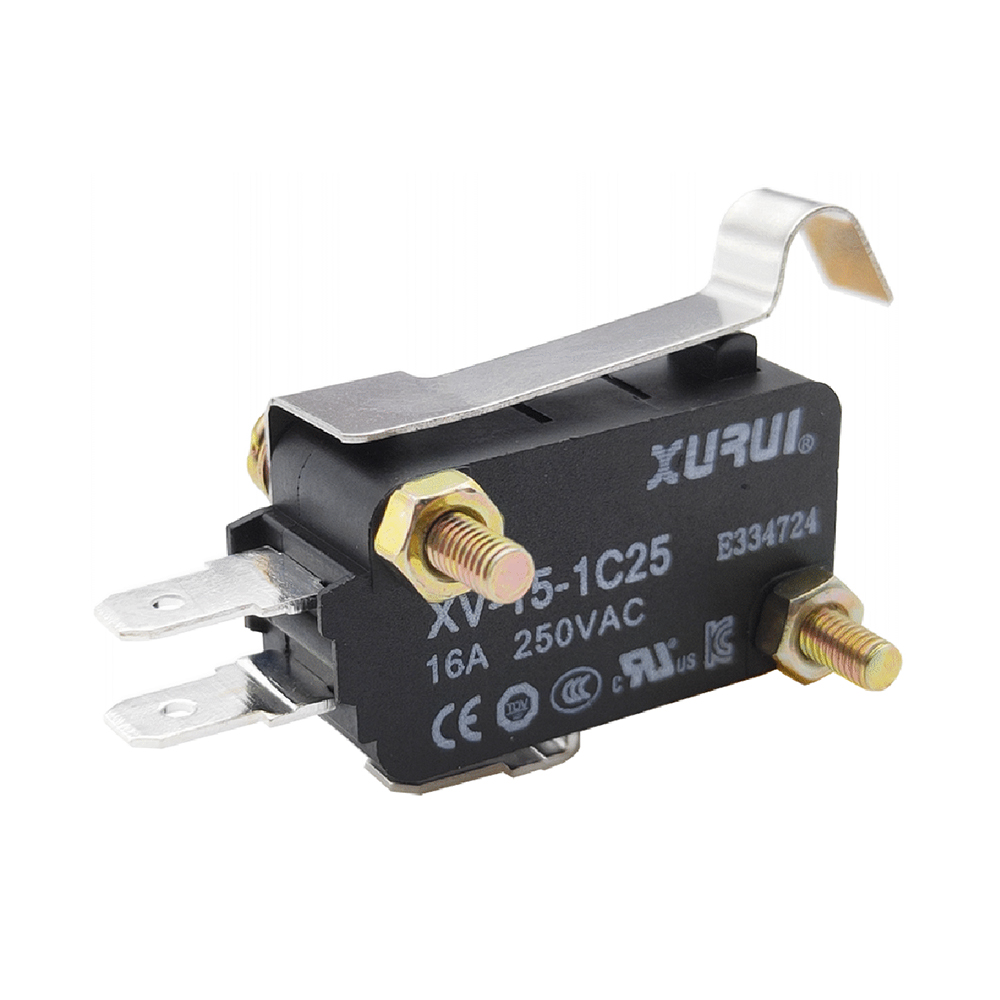

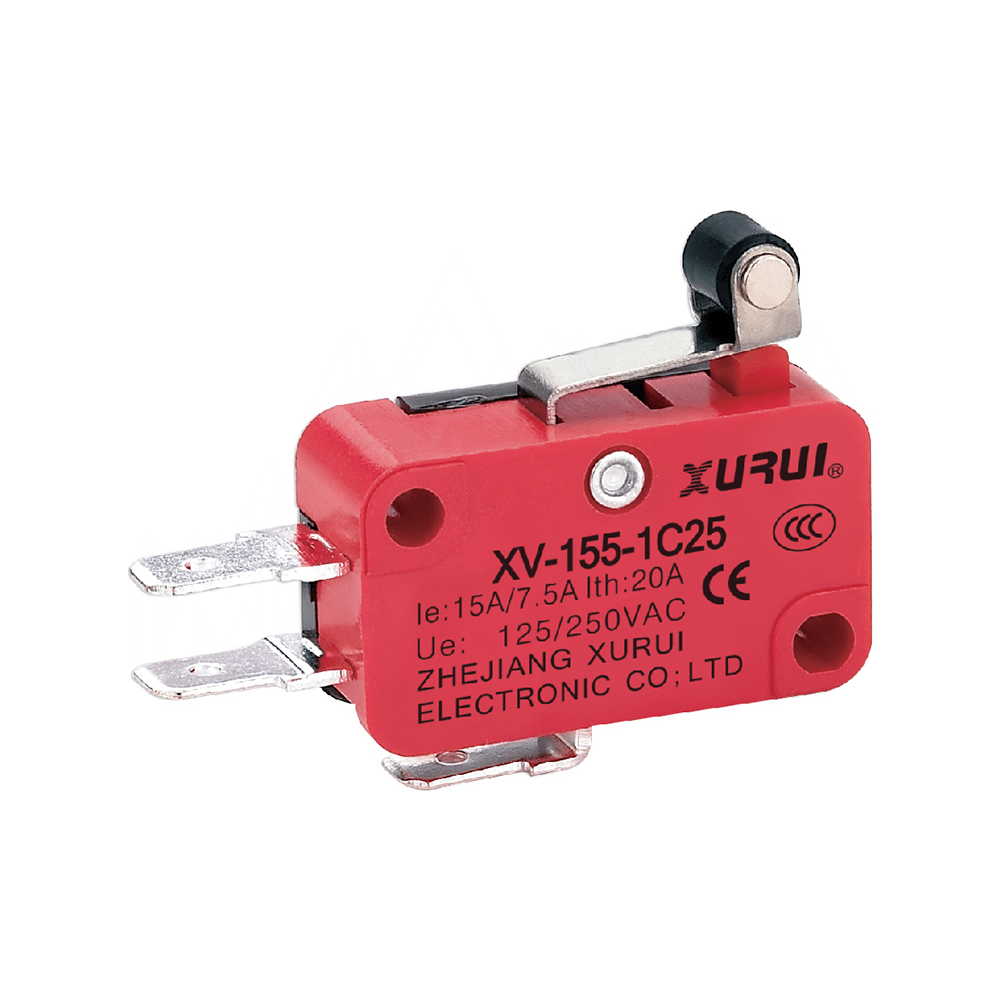

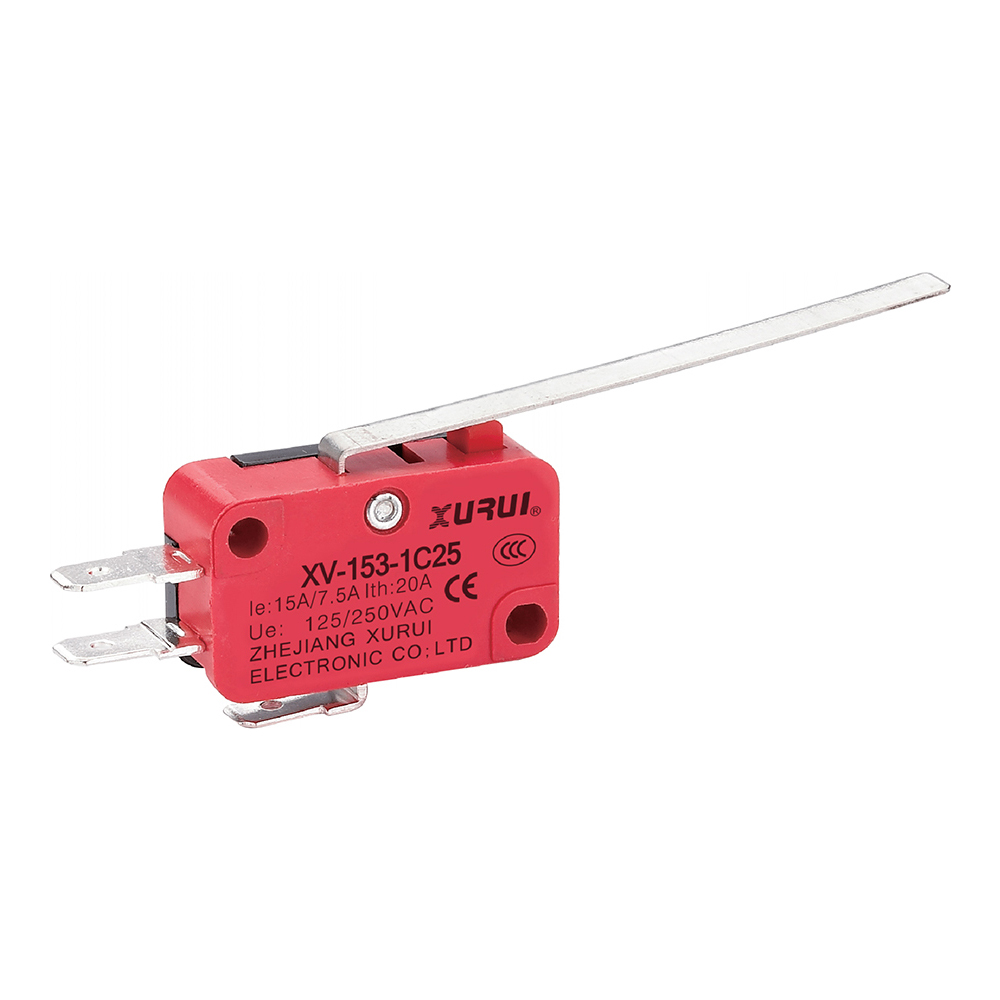

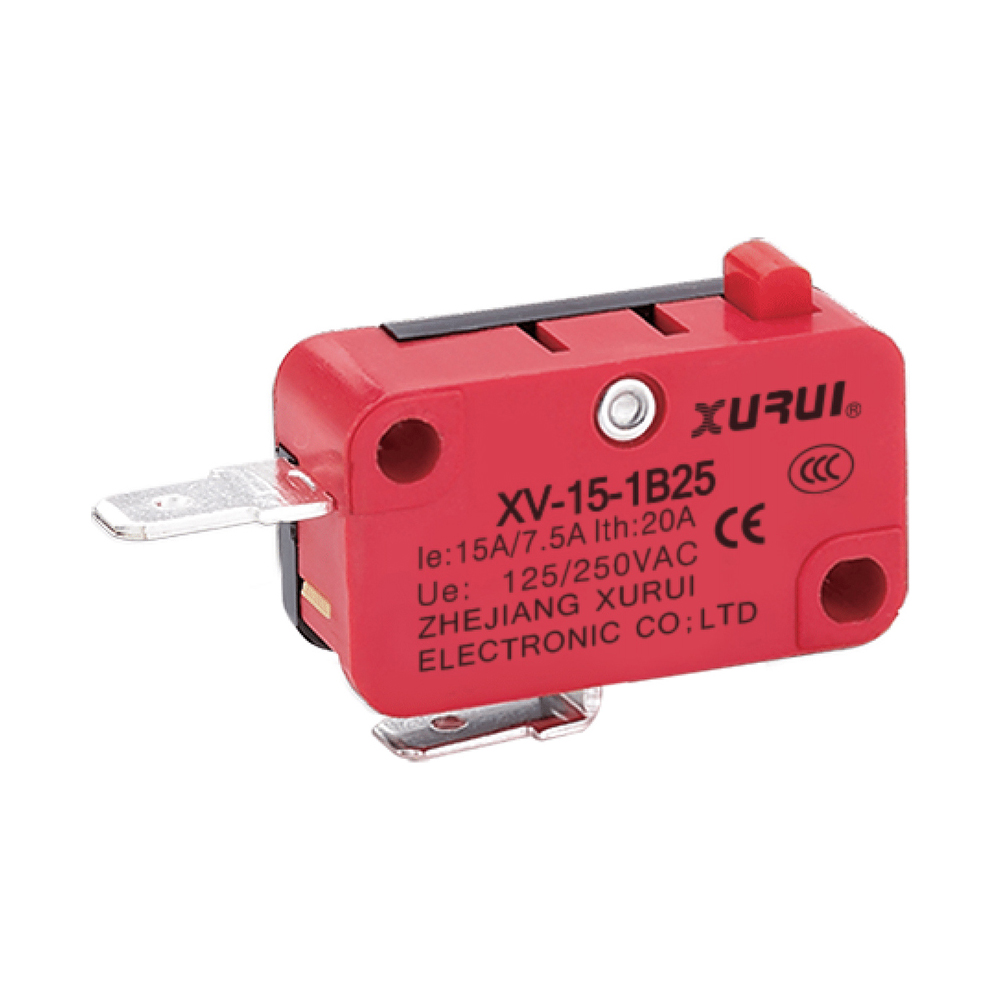

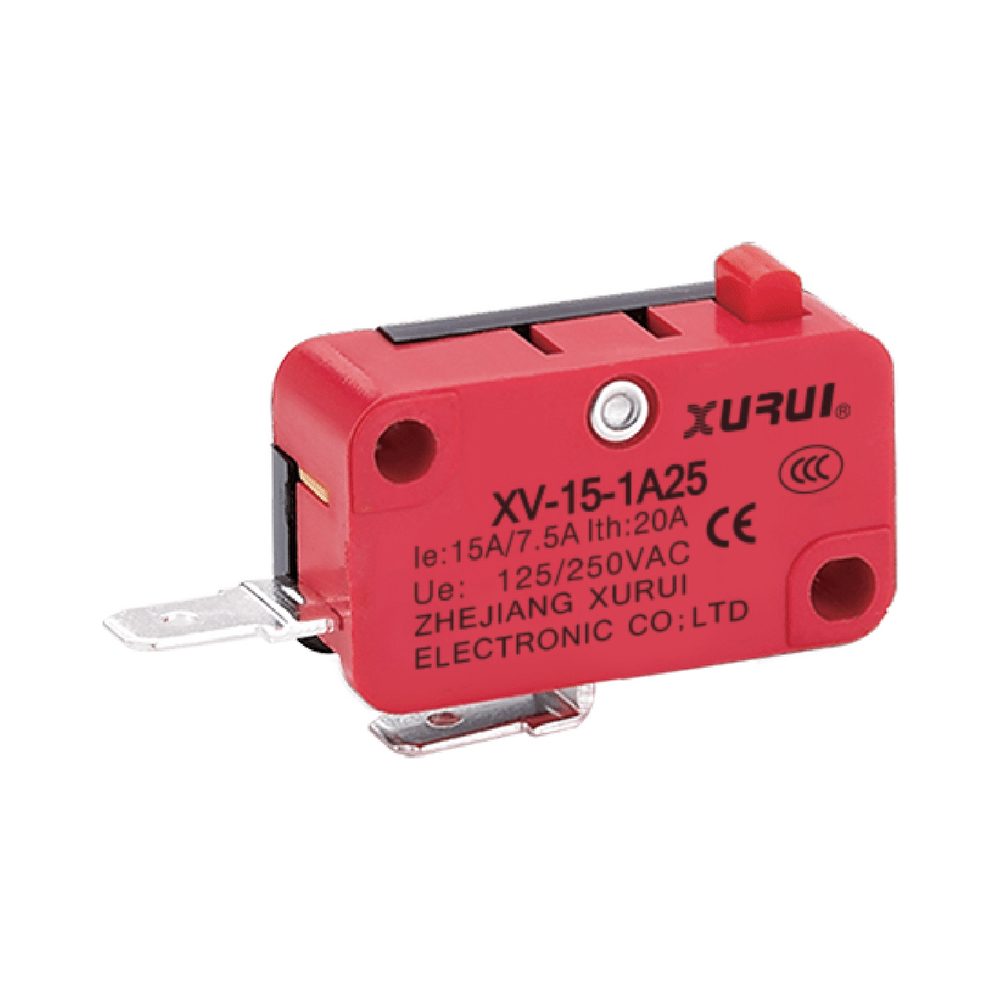

With various contact configurations including SPDT, Normally Open, and Normally Closed types, along with multiple lever styles such as pin plunger, straight lever, roller lever, and special actuator versions, the XV-15 series offers flexible solutions for position detection, limit control, door monitoring, safety interlocking, and automation equipment.
Rated Load: 15A / 125VAC 7.5A / 250VAC 0.6A / 125VDC 0.3A / 250VDC
Contact Configuration: SPDT (1C) / SPST-NO (1A) / SPST-NC (1B)
Protection Degree: IP40
Mechanical Life: ≥1,000,000 Operations
Electrical Life: ≥100,000 Operations
Operating Speed: 0.1mm – 1m/s
Mechanical Operating Frequency: 600 Operations/min
Electrical Operating Frequency: 30 Operations/min
Operating Temperature: -25°C to +80°C
Insulation Resistance: ≥100MΩ (DC500V)
Contact Resistance: ≤25mΩ (Initial Value)
Housing Material: Thermoplastic Housing


Widely used in industrial automation, home appliances, vending machines, security systems, communication equipment, instrumentation, automotive electronics, and machine tools.

Capable of stable operation under vibration, shock, and continuous-duty conditions.

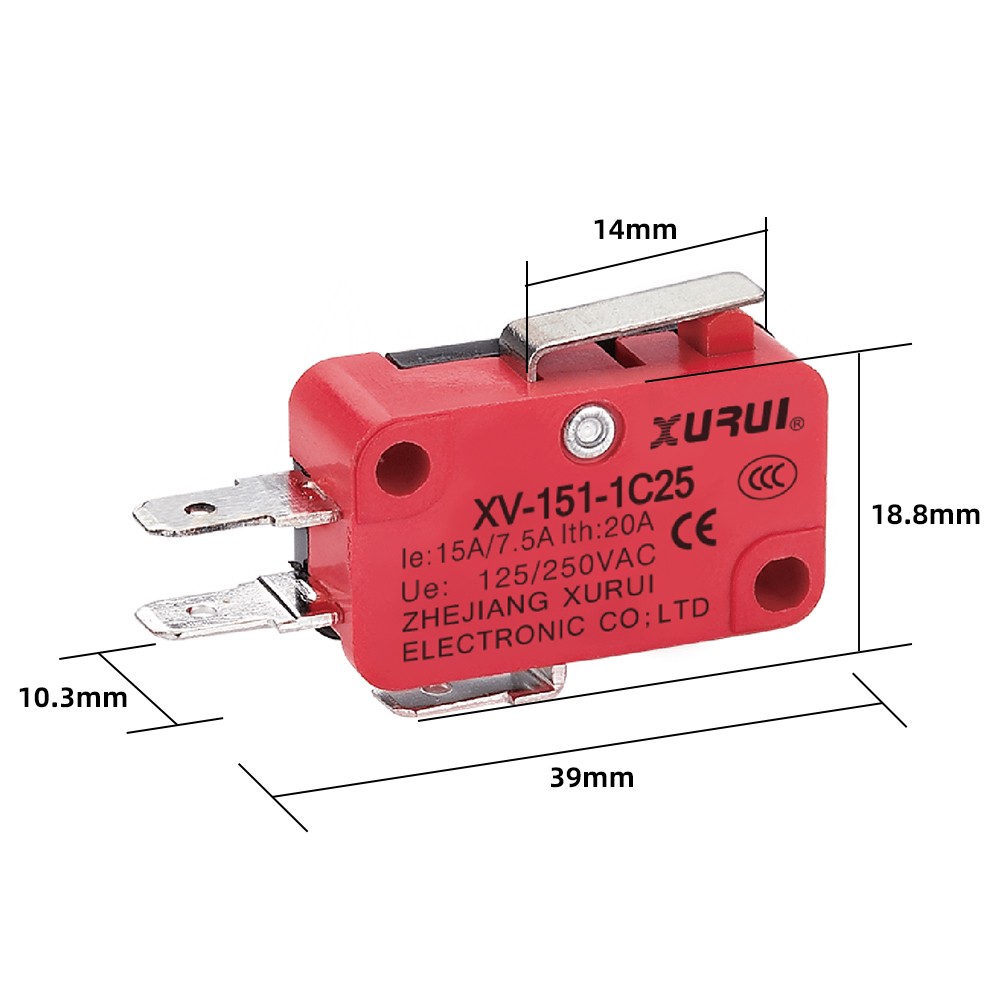

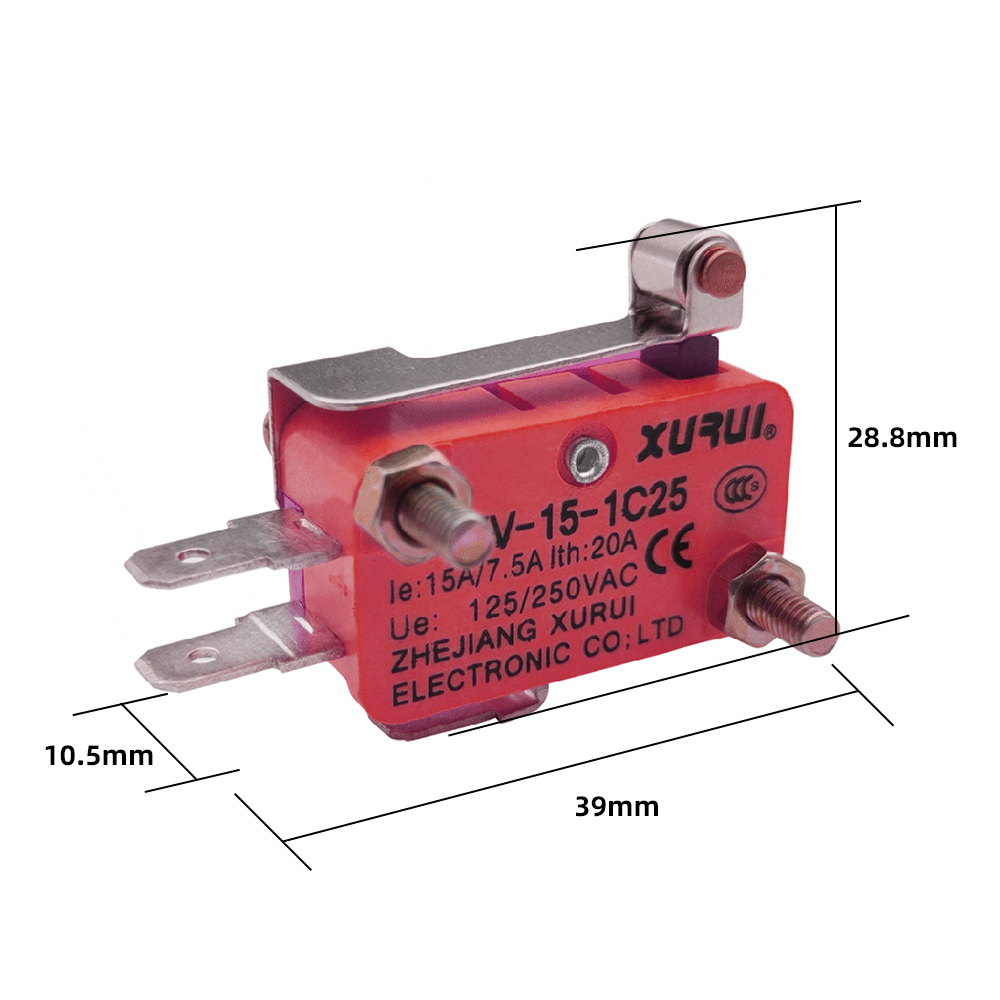

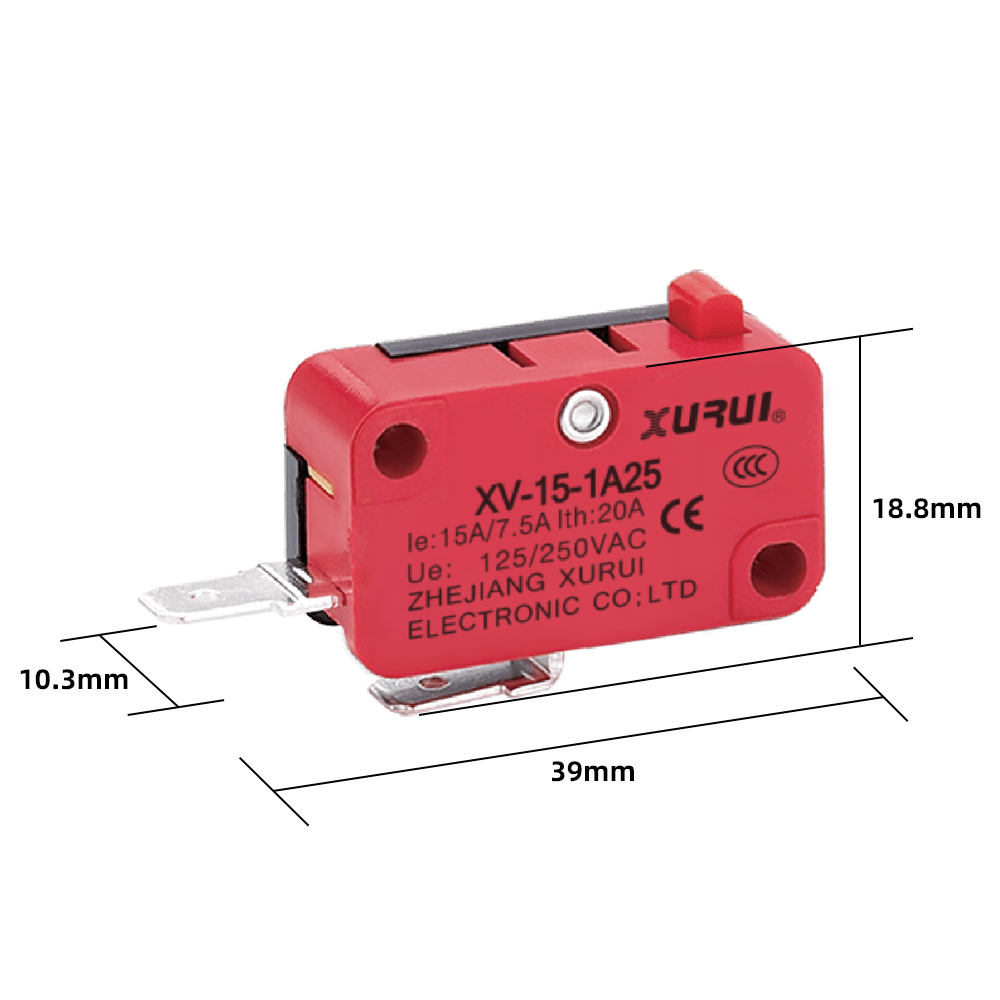

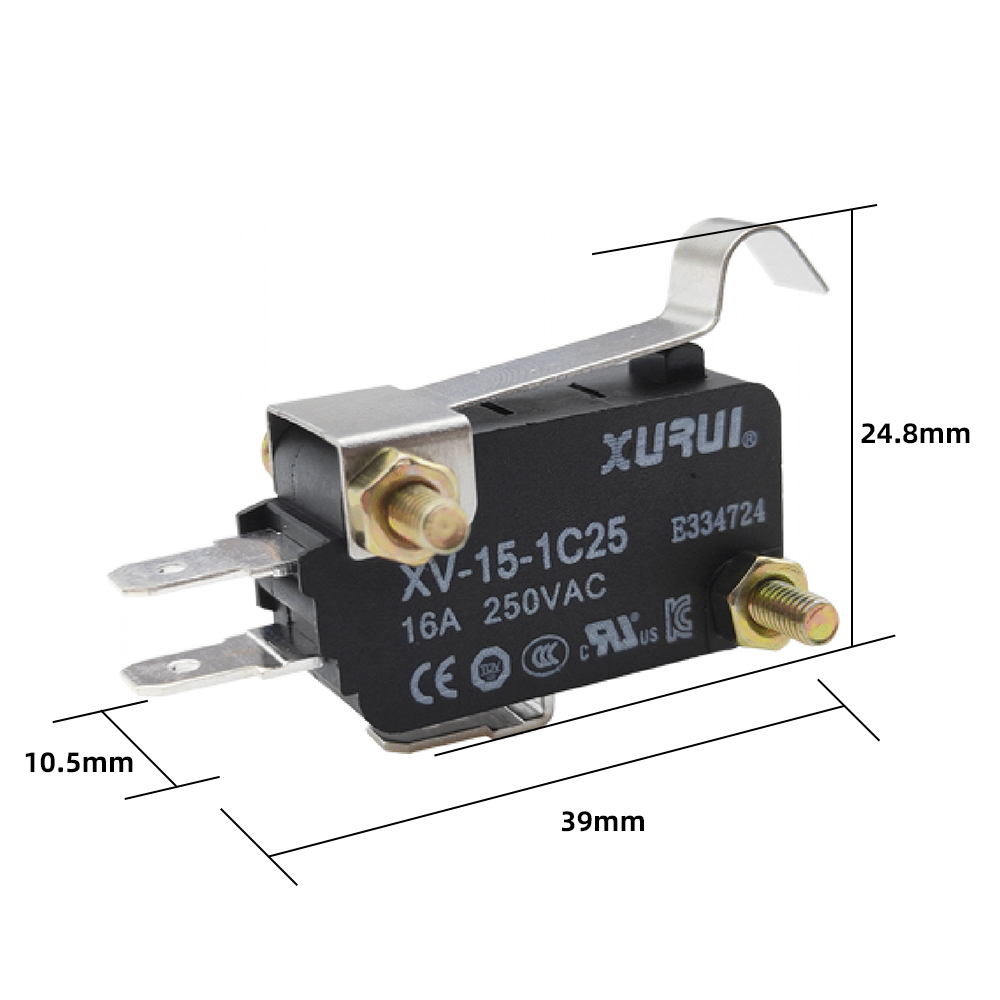

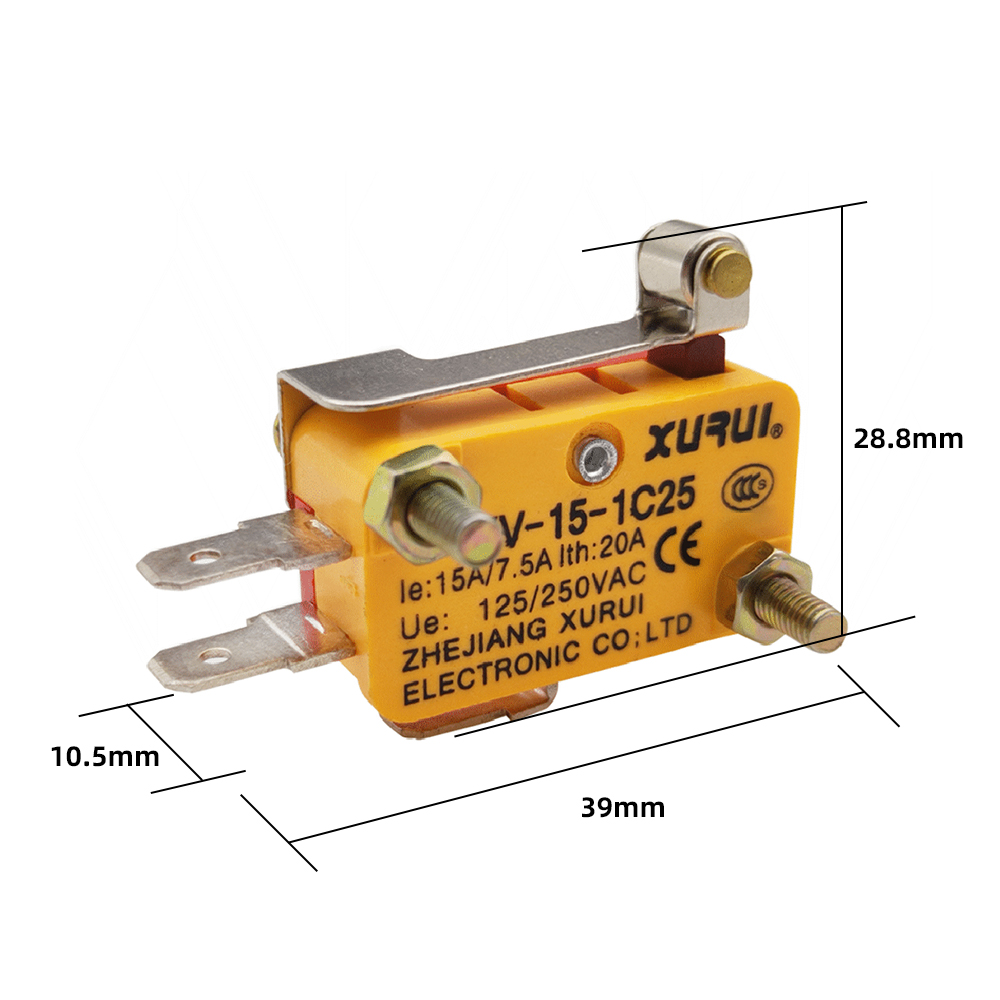

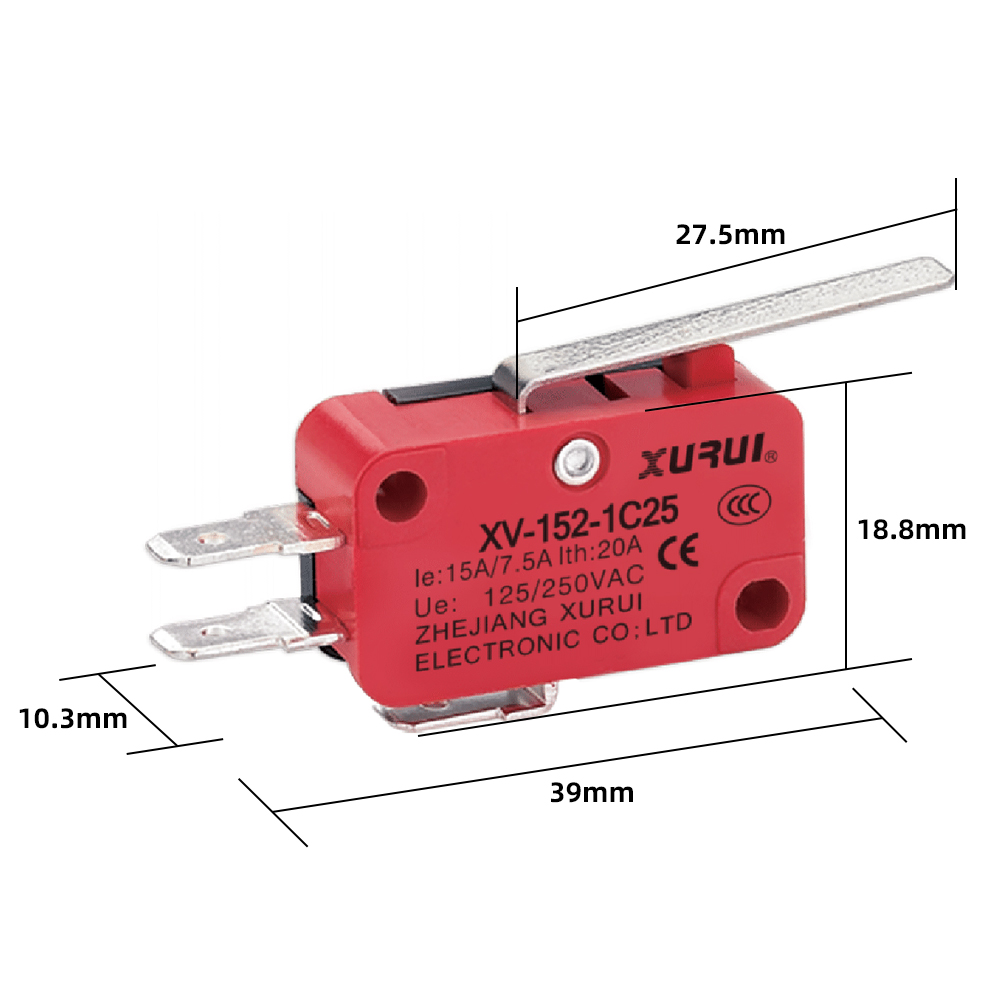

Standard mounting dimensions simplify equipment integration and replacement.

Low contact resistance and high insulation resistance ensure dependable signal transmission and switching reliability.

Designed for over one million mechanical operations and more than one hundred thousand electrical operations.

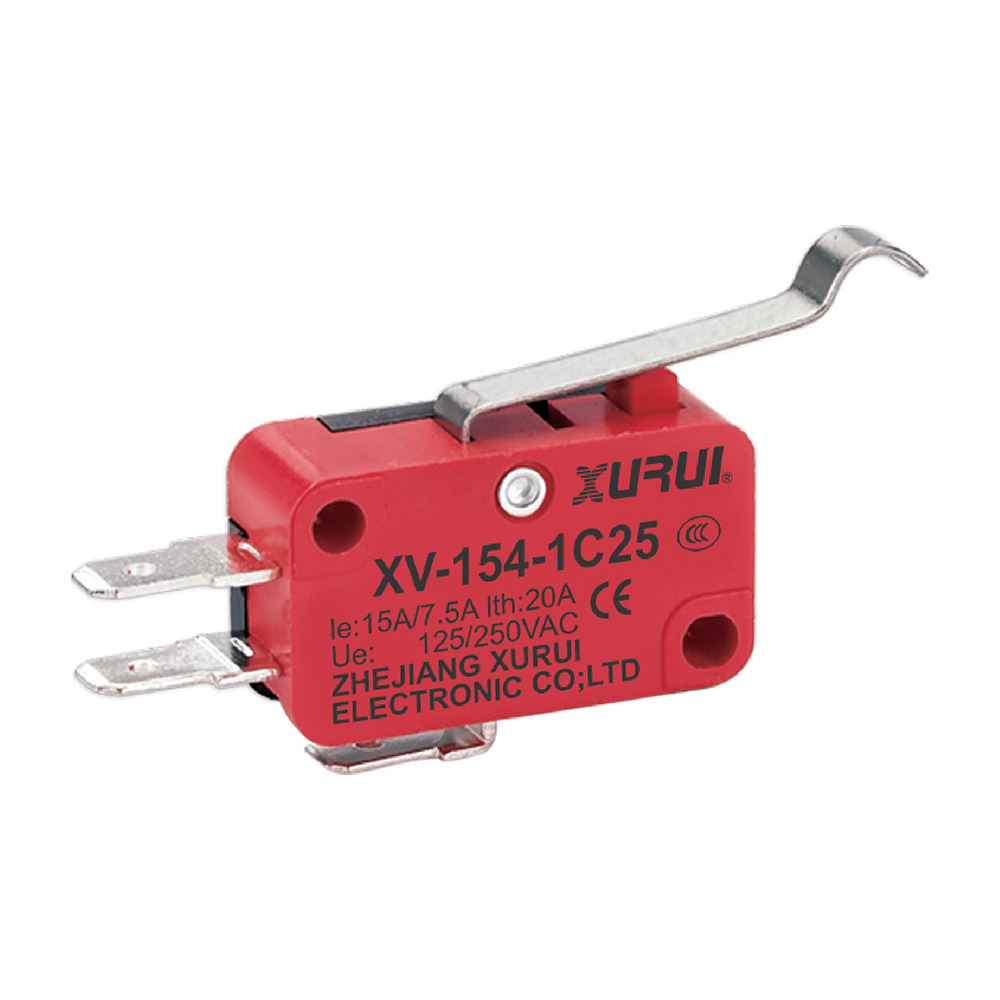

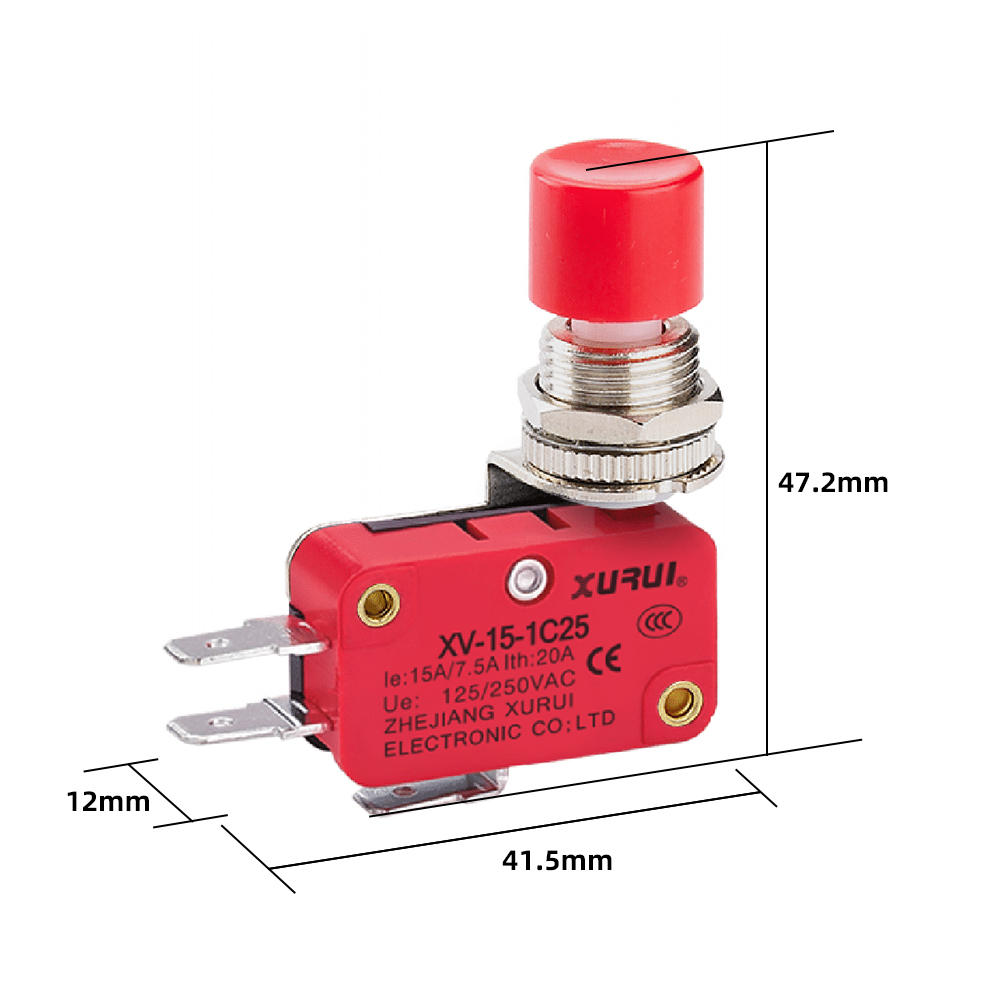

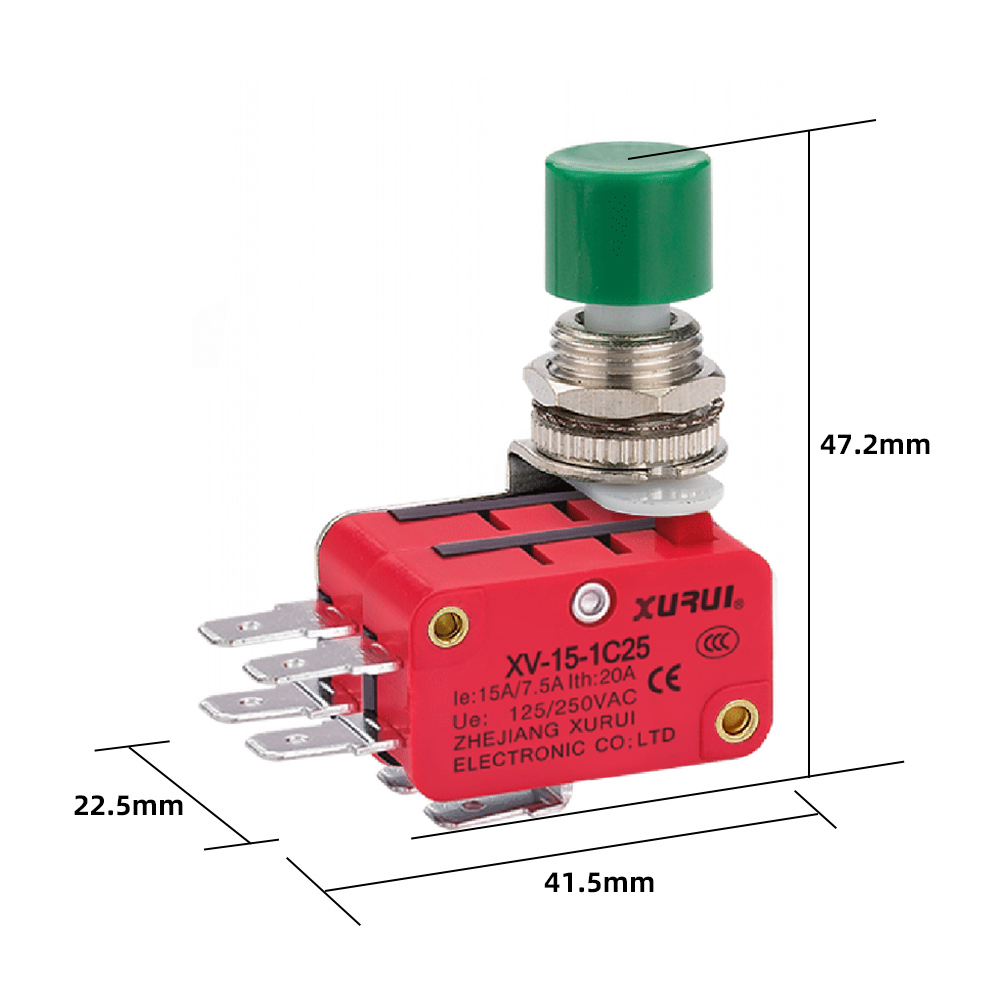

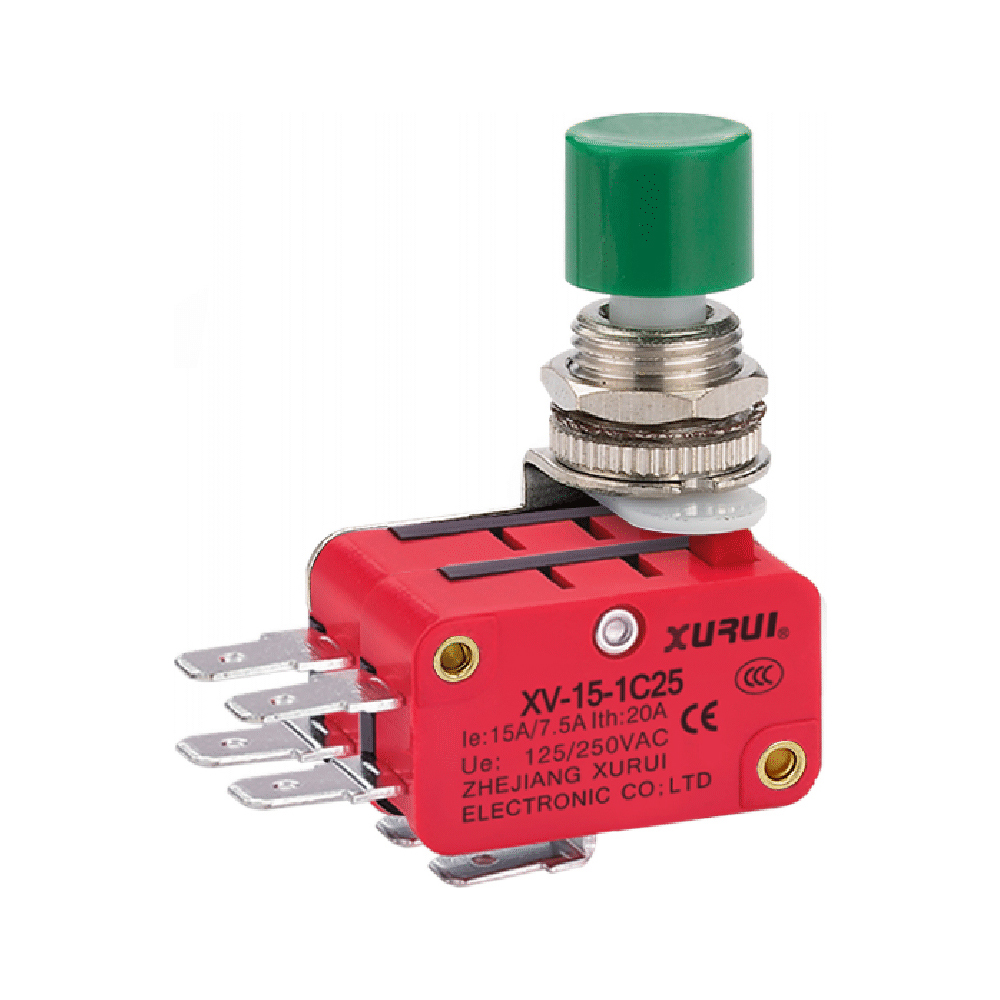

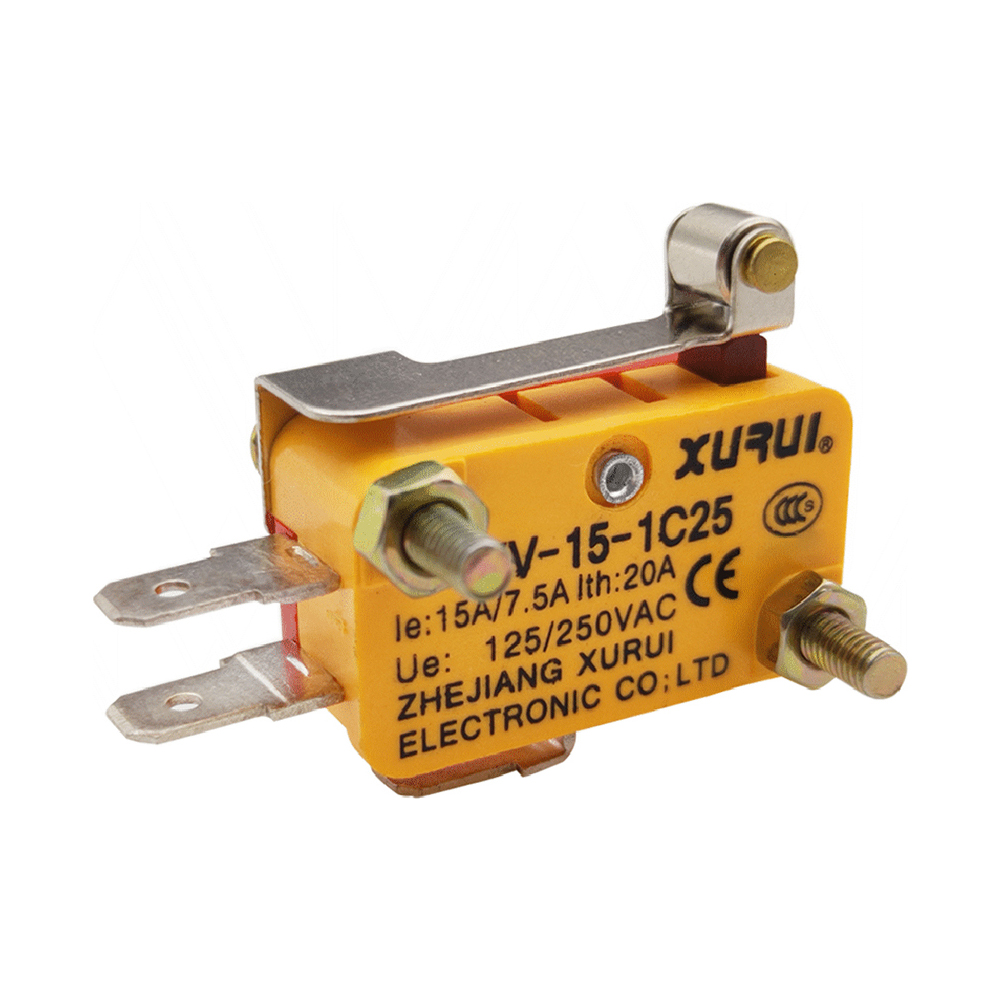

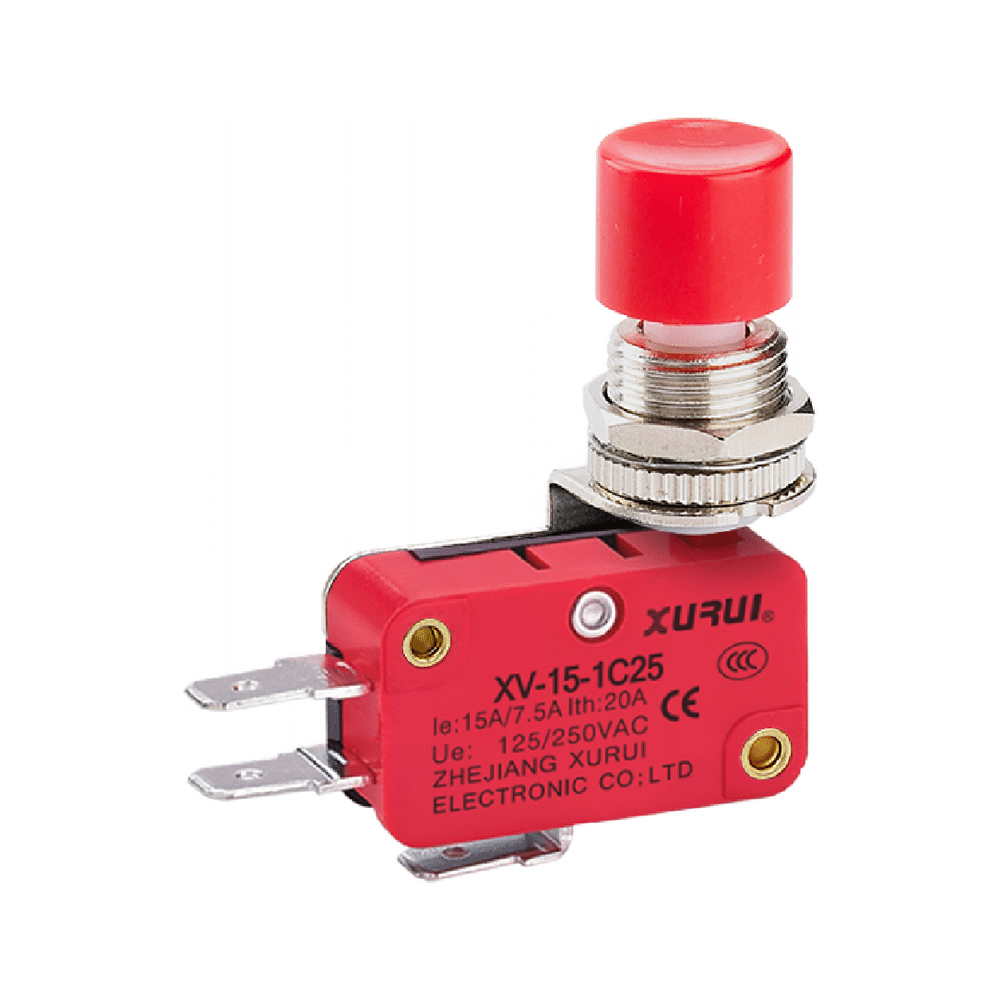

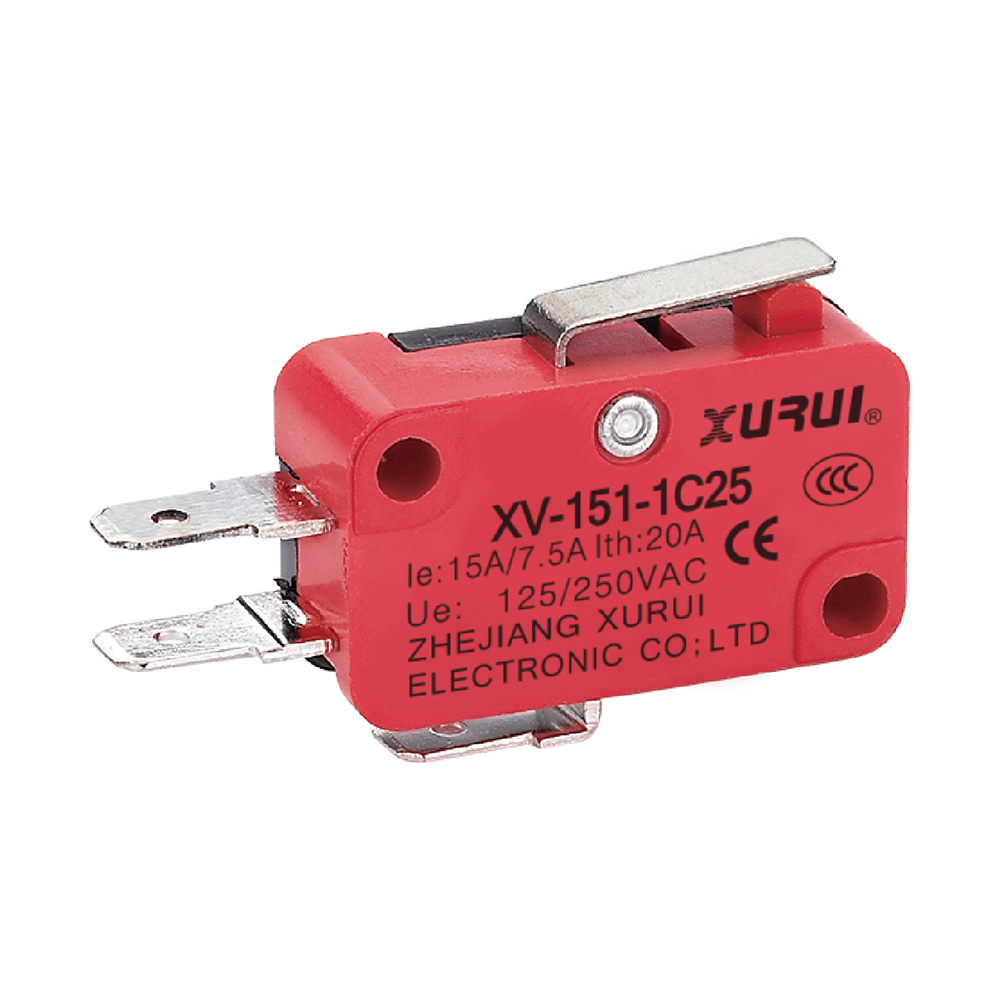

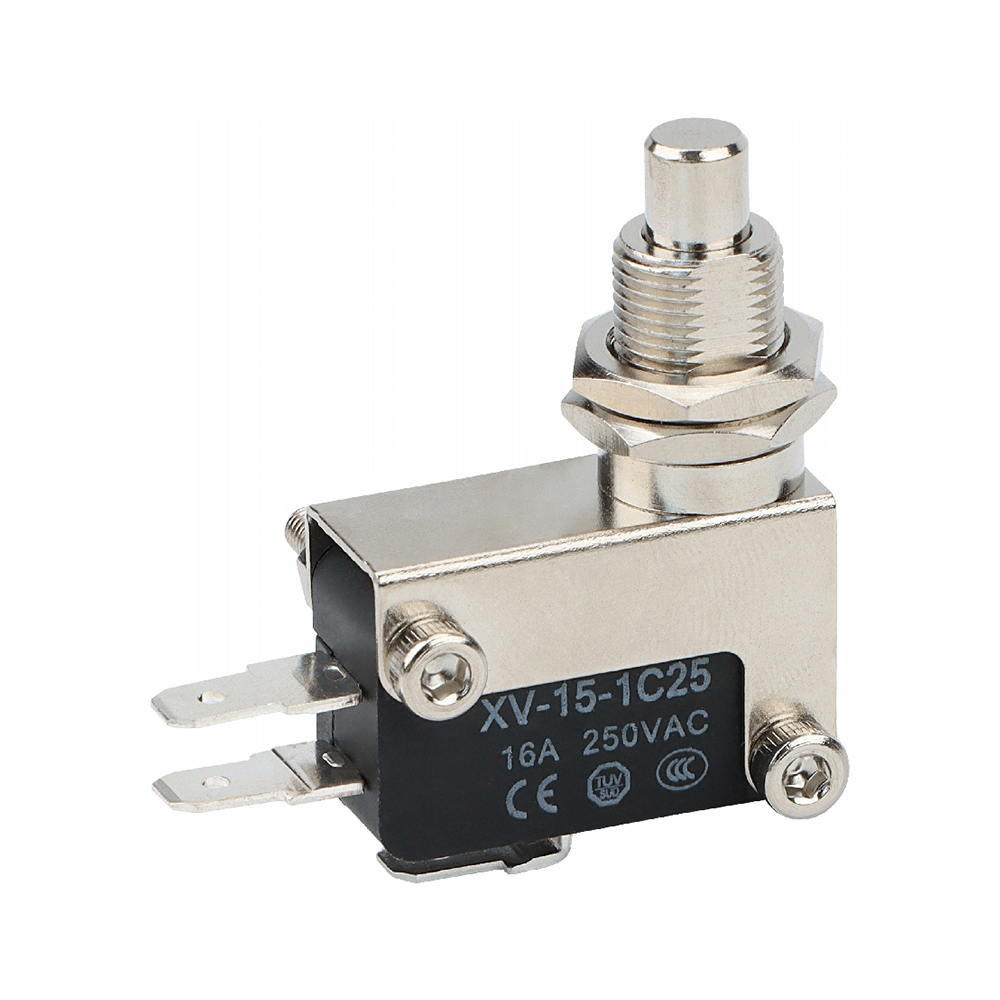

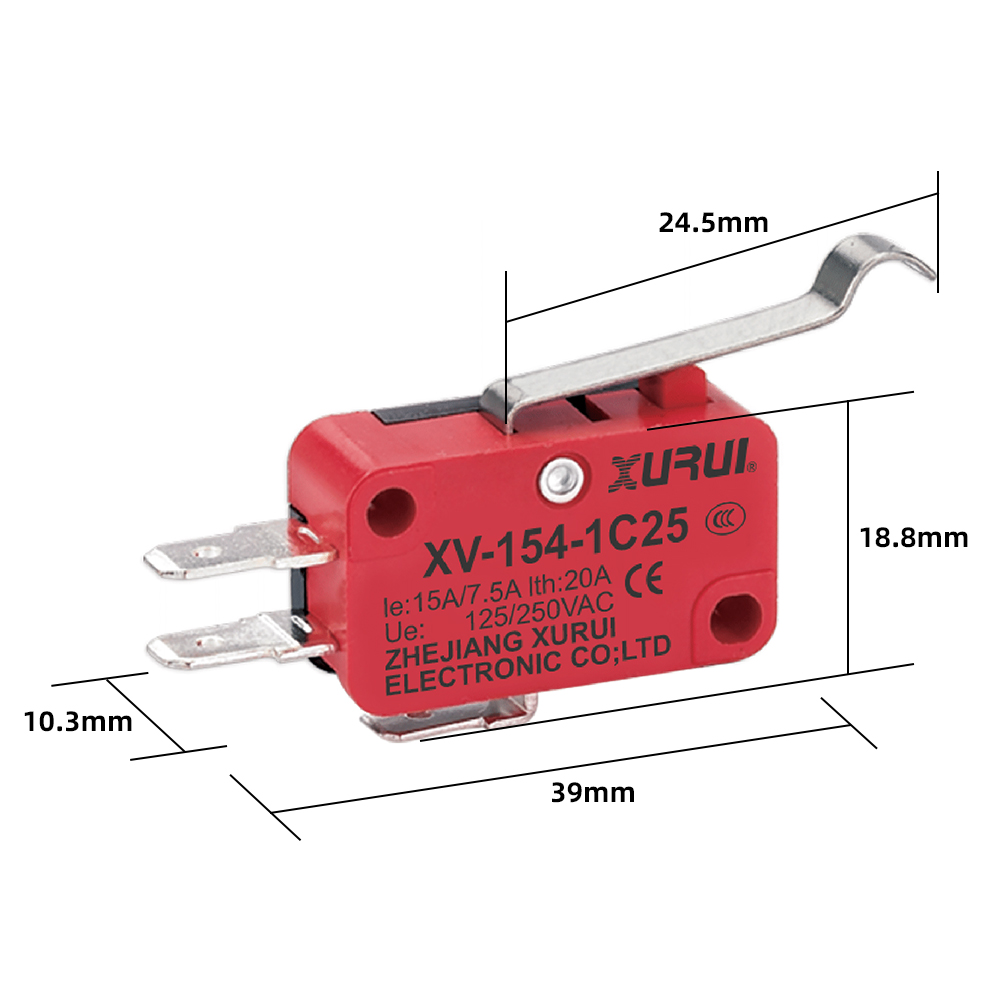

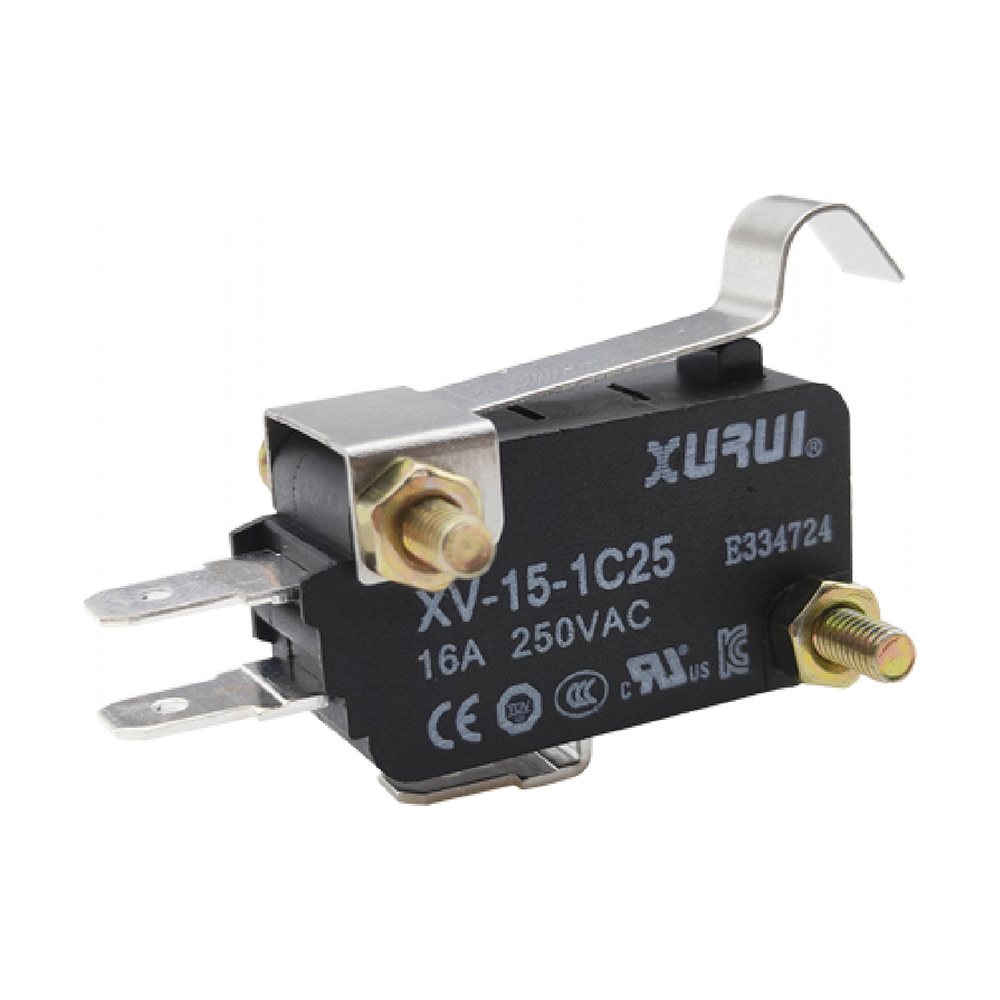

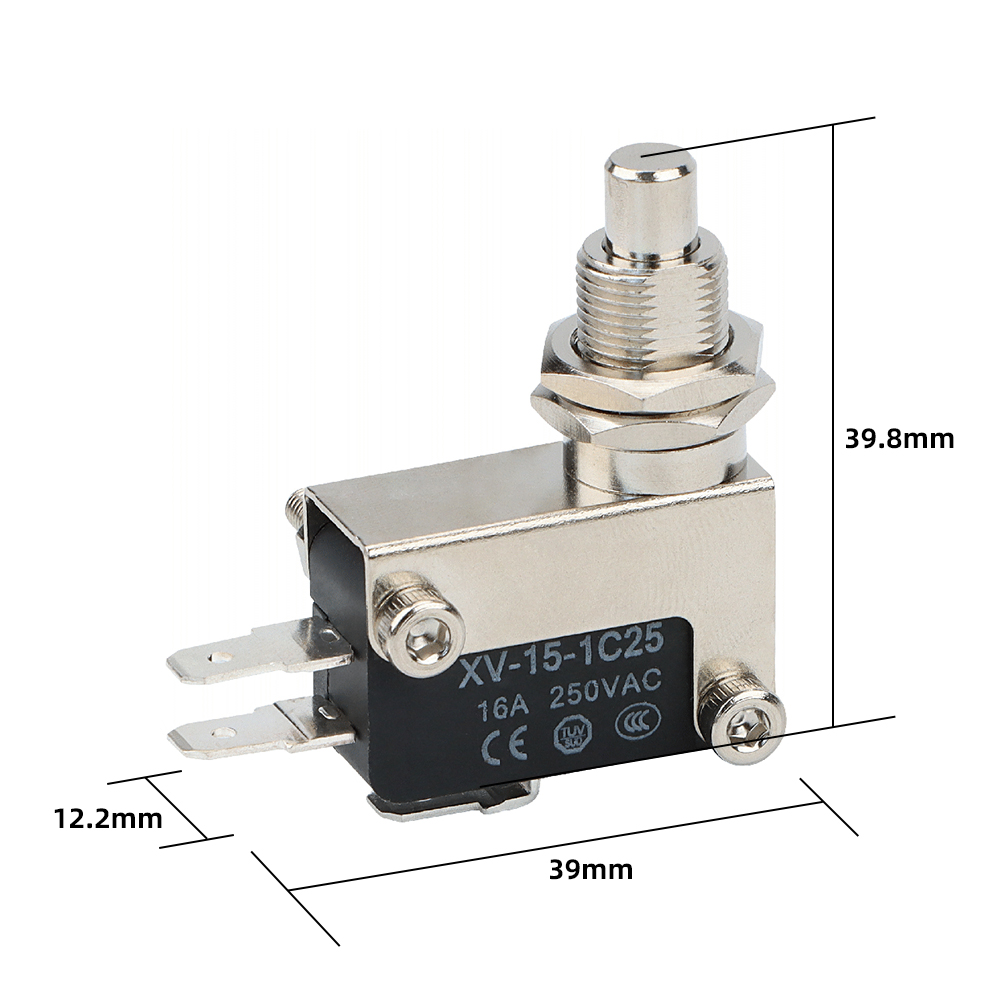

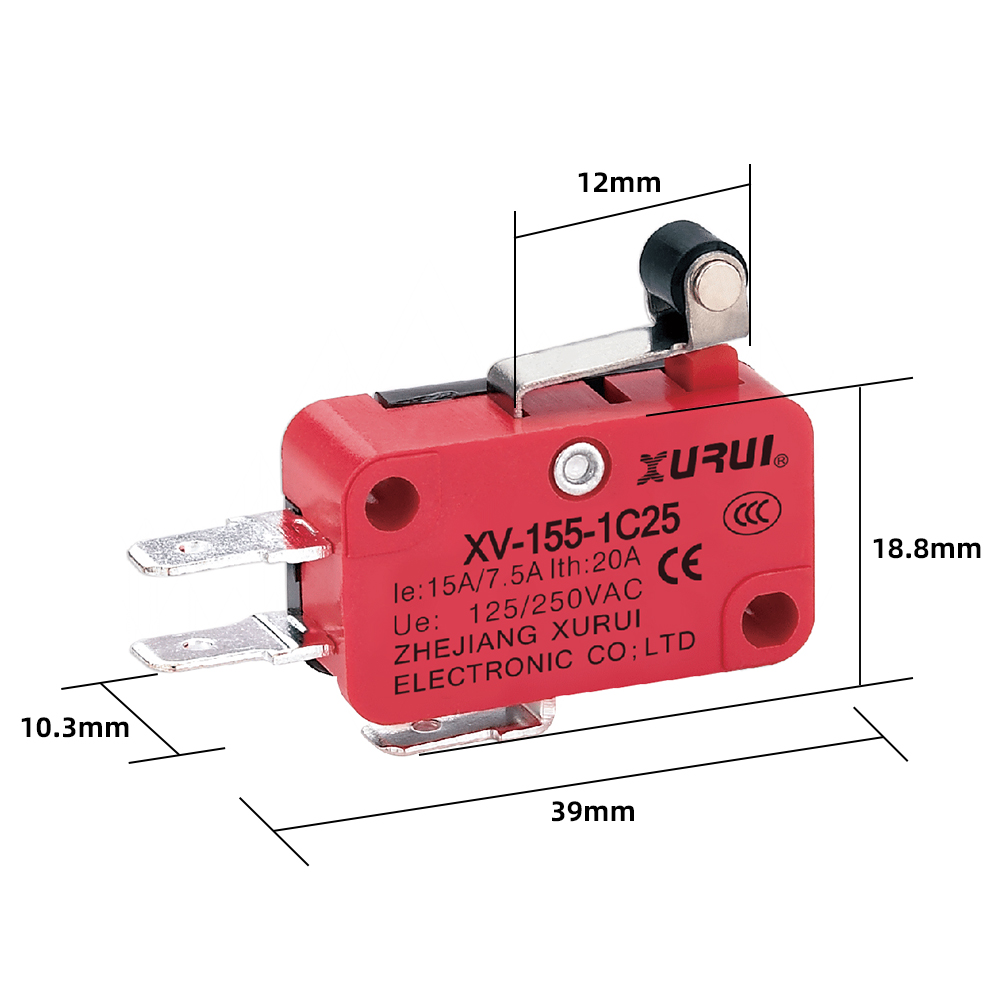

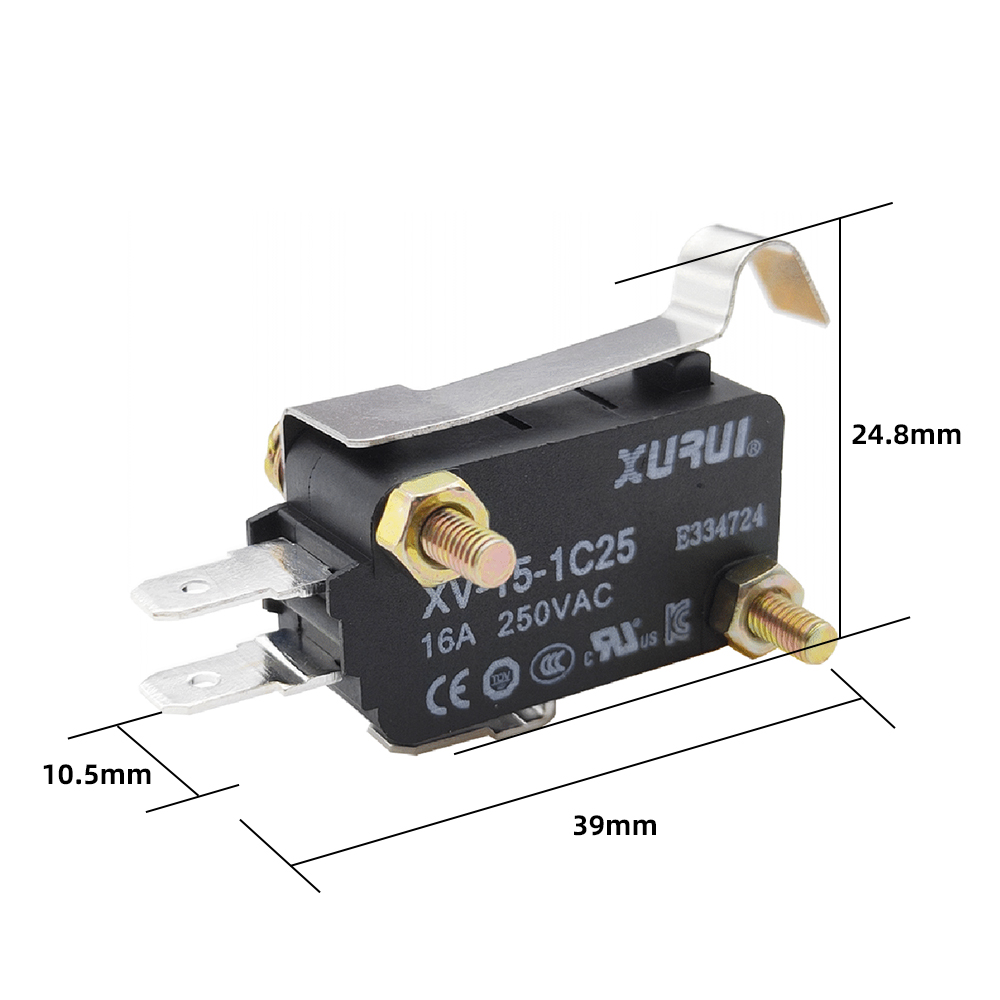

Offers numerous actuator options including plungers, straight levers, roller levers, external levers, and push-button designs.

Available in SPDT, Normally Open, and Normally Closed versions to meet various circuit requirements.

Short operating travel and low operating force enable precise position detection and responsive control.

Provides quick contact transfer, stable switching performance, and reliable electrical operation.

Supports switching loads up to 15A, suitable for industrial control and electrical equipment applications.

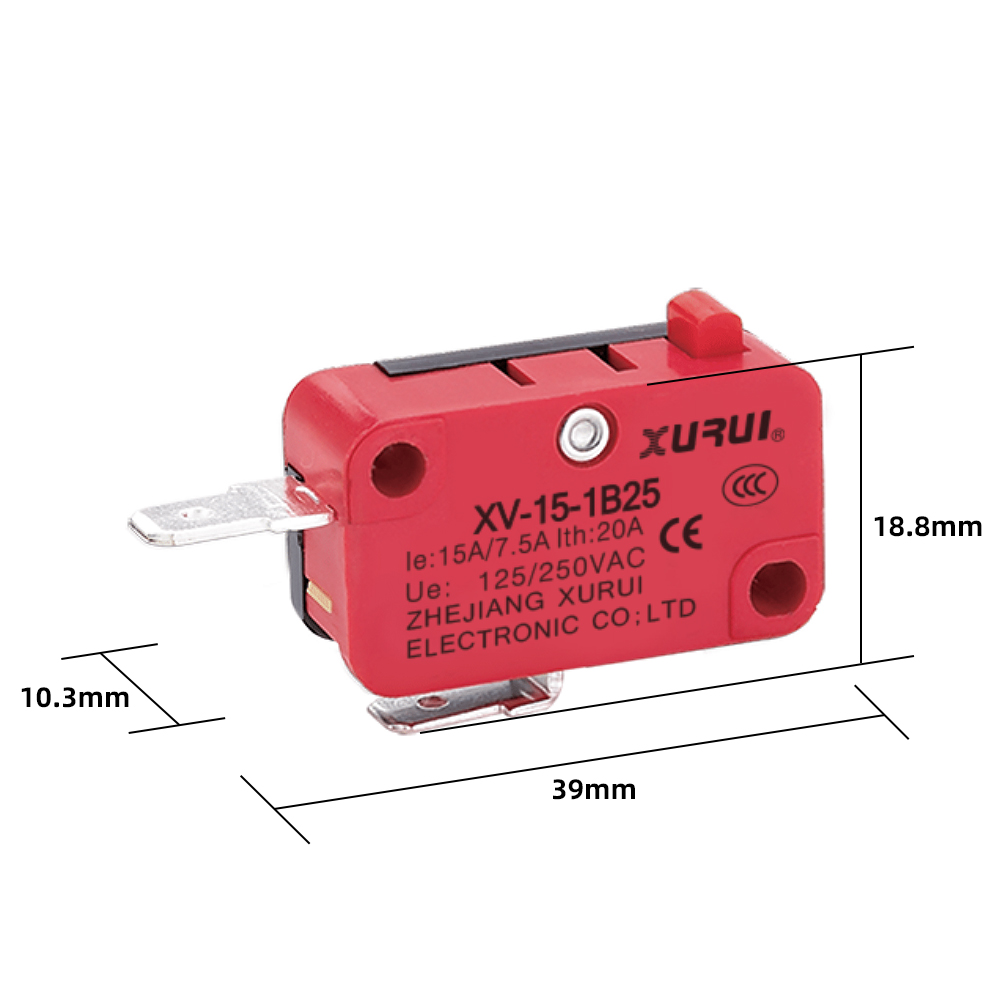

Small housing dimensions allow installation in space-constrained equipment and assemblies.
| ltem | Data | |
| Operating speed | 0.1mm-1m/s | |
| Operating frequency | Mechanical | 600 Times/min |
| Electrical | 30 Times/min | |
| Insulation resistance | 100MΩ Above DC500V | |
| Contact resistance | 25mΩ initial value | |
| Withstand voltage | Non-connection wire | 1000VAC |
| Every terminal | 1500VAC | |
| Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
| lmpact | Durable | 1000m/s² |
| Misoperation | 300m/s² | |
| Life | Electrical | 100,000 Ops above |
| Mechanical | 1,000,000 Ops above | |
| Protection degree | IP40 | |
| Operating temperature | -25~+80°C | |
| Operating humidity | <85% | |

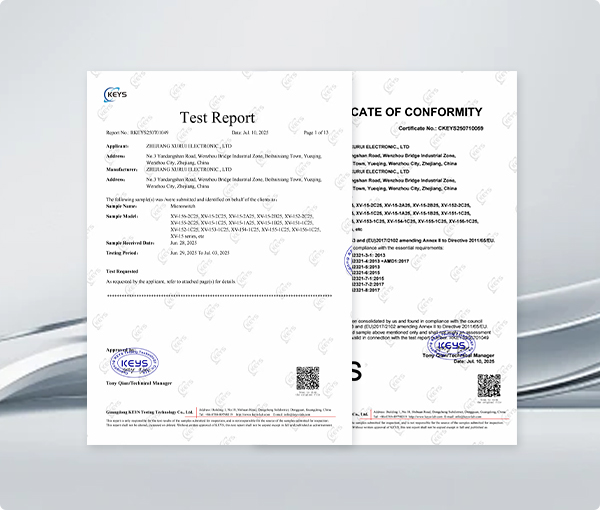

Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.
Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.
UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.
Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.
