The XGH Series Reed Switch is a compact magnetic sensing switch designed for non-contact position detection, proximity sensing, and signal switching applications. The reed contacts are hermetically sealed inside a glass tube filled with inert gas, protecting them from dust, moisture, oxidation, and other environmental contaminants.
Featuring fast response, low power consumption, excellent reliability, and long service life, the XGH Series is widely used in security systems, household appliances, communication equipment, automotive electronics, industrial automation, medical devices, measuring instruments, and magnetic sensing applications.
Available in multiple glass tube sizes, molded package designs, contact configurations, lead styles, and plating options, the XGH Series provides flexible solutions for OEM equipment requiring reliable, maintenance-free magnetic switching.
Contact Configuration : * Normally Open (1A) * Changeover (1C)
Available Sizes : * Φ2 × 10mm * Φ2 × 14mm * Φ2.5 × 14mm * Φ2.5 × 16mm * Φ2.5 × 20mm * Φ3.5 × 28mm * Φ5 × 50mm * Φ8 × 50mm * Molded Types
Contact Rating : 1VA – 30VA
Maximum Switching Voltage : Up to 220VDC
Maximum Switching Current : Up to 2A
Maximum Carry Current : Up to 4A
Insulation Resistance : ≥100MΩ
Contact Resistance : ≤150mΩ – 200mΩ
Maximum Operating Frequency : Up to 500Hz
Operating Temperature : -10°C to +85°C (Model Dependent)
Lead Style : * Round Leads * Flat Leads * Bent Leads * Molded Type
Lead Finish : * Gold-Plated Leads * Tin-Plated Leads


Suitable for security systems, household appliances, industrial automation, communication equipment, automotive electronics, medical devices, measuring instruments, and magnetic sensing systems.

Can be easily combined with magnets, coils, and magnetic assemblies for a wide variety of sensing applications.

Designed with no mechanical friction between actuator and contacts, ensuring exceptional durability and reliability.

Low contact resistance and high insulation resistance provide stable switching performance and dependable signal transmission.

Lead terminals are available with gold-plated or tin-plated finishes to meet different soldering processes and application environments.

Supports round leads, flat leads, bent leads, and molded package configurations.

Available in Normally Open (1A) and Changeover (1C) contact forms.

Available in various glass tube dimensions and molded package designs for different installation requirements.

Magnetic field operation eliminates mechanical wear and ensures long service life.

Provides rapid operate and release times for precise and reliable signal transmission.

The reed contacts are enclosed in a glass tube filled with inert gas, preventing oxidation, moisture, dust, and contamination.

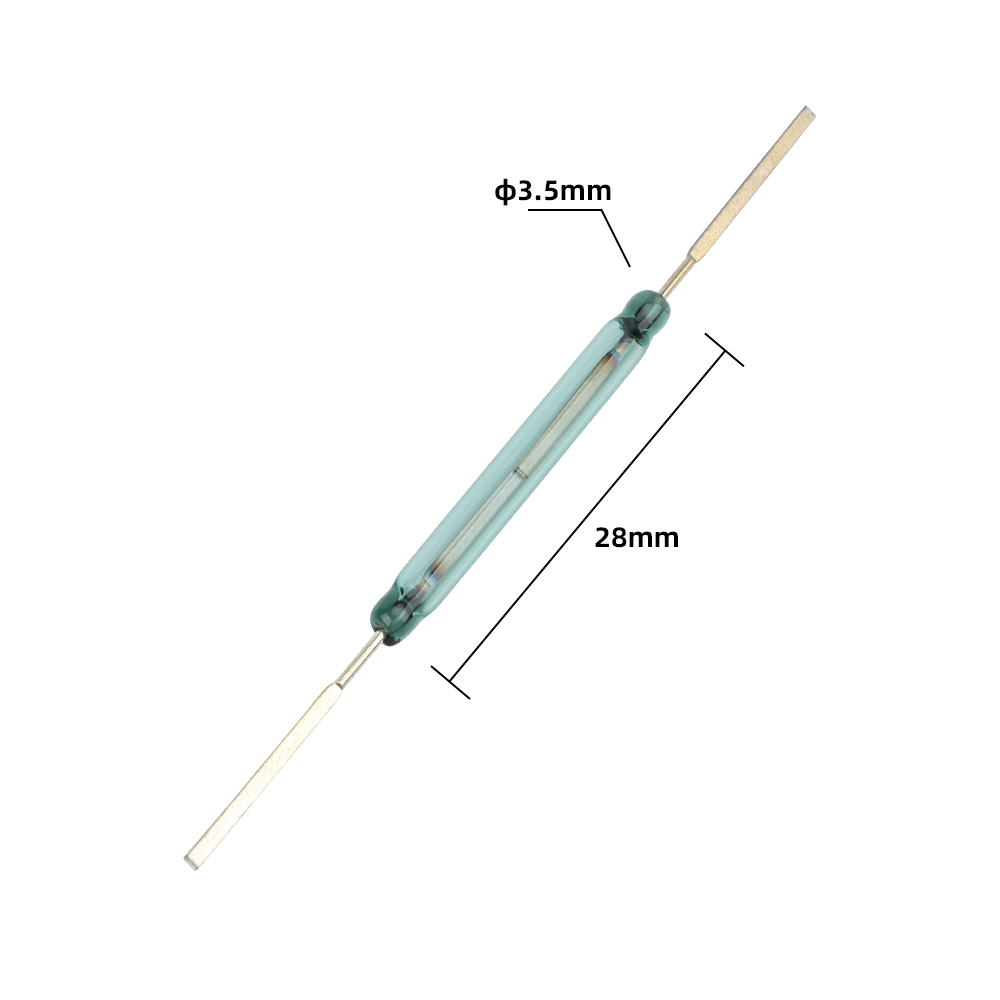

| Dimensions | Ф3.5 x 28mm |
| Contact Type | 1A |
| Contact Rating | 10VA |
| Pull in Value(Pl) | 35-80AT |
| Drop Out Value(DO) | ≥15AT |
| Contact Resistance | ≤200m Ω |
| breakover Voltage | ≥200V DC |
| Insulation Resistance | ≥100m Ω |
| Electrostatic Capacitance | 0.8pF |
| Maximum Switching Voltage | 60V DC |
| Maximum Switching Current | 0.5A |
| Maximum Carry Current | 2A |
| Operate Time | ≤1.5mS |
| Bounce Time | ≤0.8ms |
| Release Time | ≤0.4ms |
| Maximum Operating Frequency | 200Hz |
| OperatingTemperature | -10-70°C |
Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.
Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.
UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.
Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.
