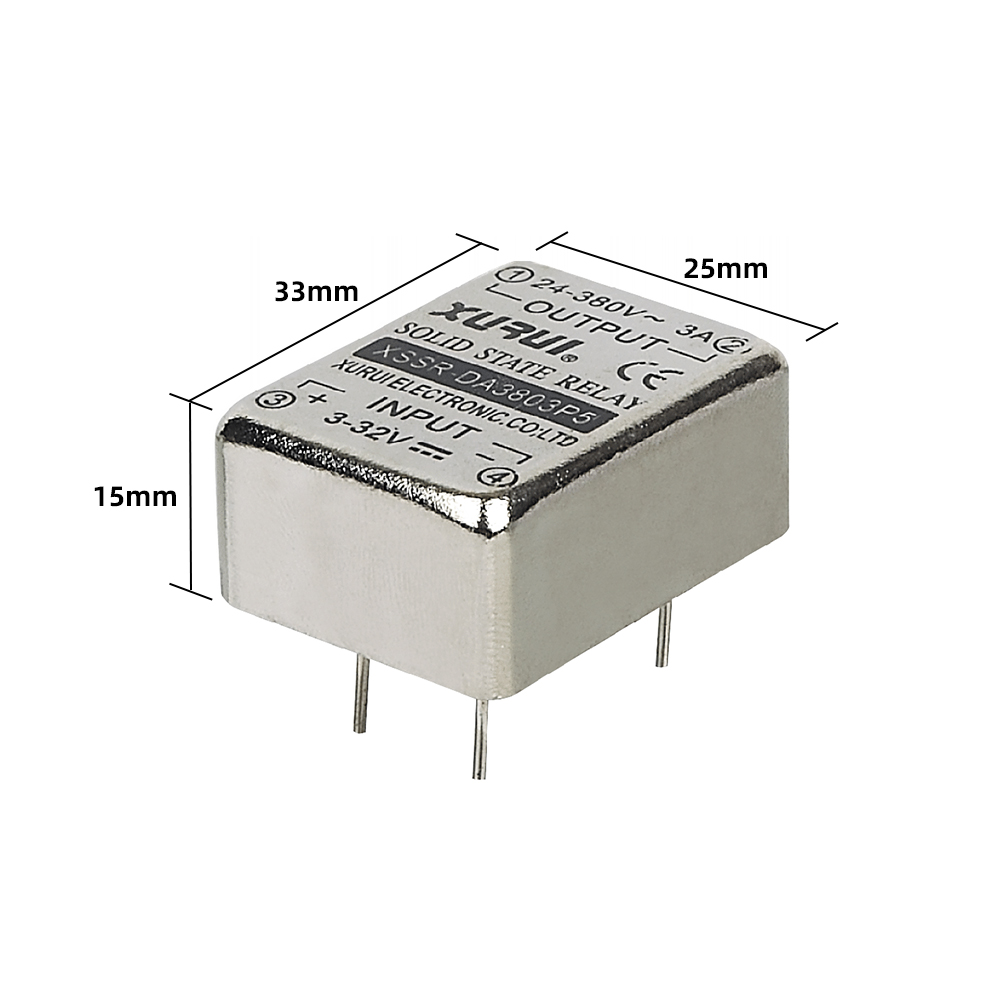

The XSSR-P5 series is a compact PCB mount AC solid state relay designed for reliable AC load switching in space-constrained electronic systems. Featuring opto-isolated input, a built-in RC snubber circuit, and zero-cross or random triggering options, it provides stable operation and improved resistance to electrical transients. Its dual in-line package design allows easy PCB integration while ensuring long service life and maintenance-free performance. The XSSR-P5 series is suitable for industrial control equipment, HVAC systems, power management devices, and electronic control boards.
Load Voltage: 24–380VAC
Control Voltage: 3–32VDC
Rated Load Current: 2A–3A


Solid-state construction eliminates mechanical wear and ensures maintenance-free operation over extended periods.

Designed for stable and efficient switching of AC loads with consistent performance.

Available with zero-cross and random turn-on versions to support different switching applications.

Compact package design allows easy installation in PCB assemblies with limited space.

Provides reliable electrical isolation between control and load circuits for enhanced safety and system protection.

Integrated RC protection helps suppress voltage spikes and improves switching stability under inductive loads.
| Product model | XSSR-DA3802P5/3803P5 |
| Control voltage | 3-32VDC |
| Control current | 6-25mA |
| Reverse voltage | 32VDC |
| Guarantee close voltage | 1VDC |
| Guarantee open voltage | 3VDC |
| Load voltage | 24-380VAC |
| Load max current | 2A-3A |
| Load mini current | 0.03A |
| Breakover voltage | ≤1.5VAC |
| Output leakage current | ≤3mA |
| Medium withstand voltage | ≥2500VAC |
| Insulating resistance | ≥100MΩ |
| Switching time | ≤10mS |
| Frequency range | 50-60Hz |
| Operating temperature | -20-70℃ |
| Load current safety factor | Resistive load 50-60% |
| Load current safety factor | Inductive load 30-40% |
Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.
Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.
UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.
Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.
