The XF-101 Foot Switch is a heavy-duty industrial pedal switch designed for machinery control, automation equipment, transportation systems, testing instruments, and various industrial applications. Featuring a durable ABS engineering plastic housing, a high-capacity 15A micro switch, anti-slip pedal surface, and IP54 protection rating, the XF-101 delivers reliable hands-free control and long service life. Supplied with a factory-installed cable and supporting custom cable lengths, it provides flexible installation for a wide range of industrial control environments.
Material: ABS Engineering Plastic
Inner Switch: XV-15GW22-B
Rating Load: 15A / 250VAC
Contact Form: 1C (SPDT)
Protection Degree: IP54
Standard Cable: 0.75mm² × 3C × 0.25m
Cable Length: Factory-installed cable, Custom Length Available
Mechanical Life: ≥1,000,000 Operations
Suitable for industrial automation equipment, packaging machinery, transportation systems, testing instruments, woodworking machinery, textile machinery, and general machine control systems.
Allows operators to keep both hands available while controlling machinery, improving efficiency and safety.
Designed for more than 1 million mechanical operations, ensuring dependable long-term performance.
The streamlined pedal structure provides comfortable foot operation while maintaining a compact installation footprint.
Cable length and cable specifications can be customized according to customer installation requirements.
Supplied with a standard 0.25-meter cable for easy installation and quick connection to control systems.
Protects against dust ingress and water splashes, ensuring reliable operation in general industrial environments.

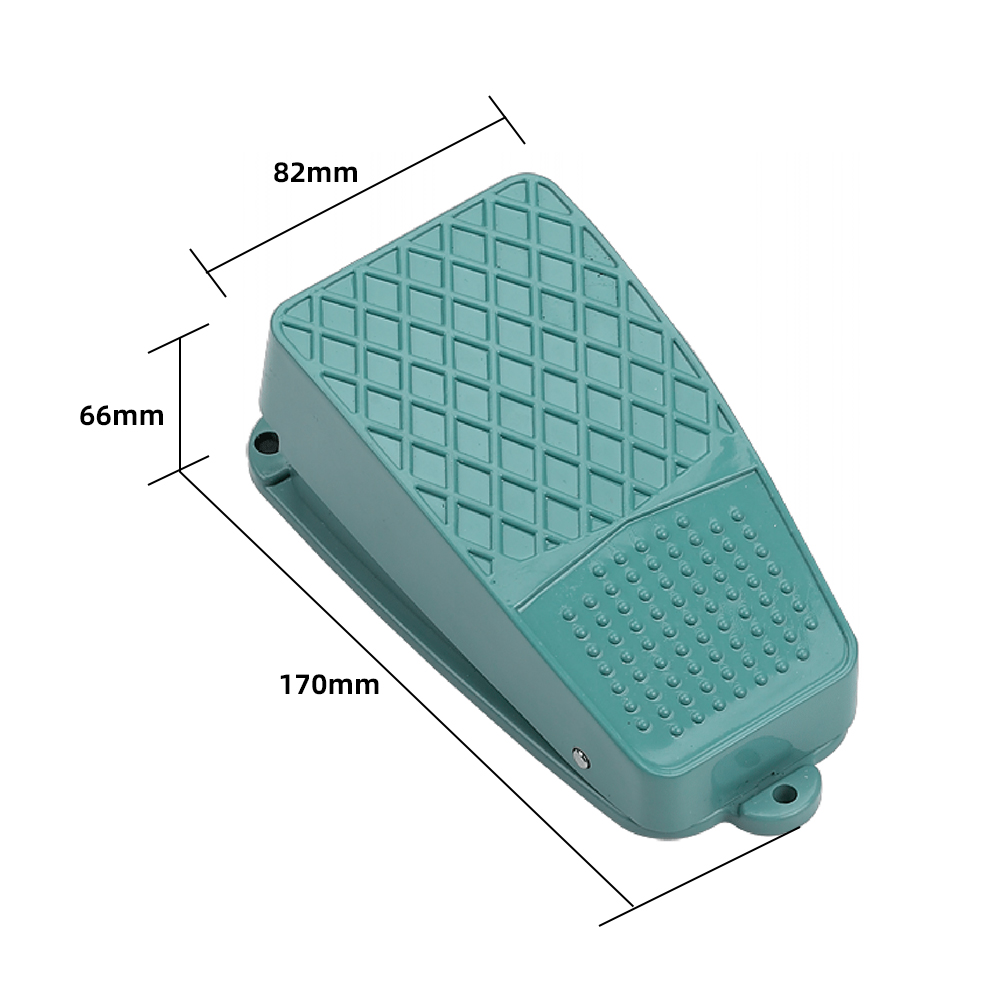

The pedal features a dual-texture anti-slip design that improves operator grip and enhances workplace safety.
Provides one changeover contact with both NO and NC terminals for flexible circuit control and equipment integration.
Manufactured from high-quality ABS engineering plastic, offering excellent impact resistance, wear resistance, and long-term durability.
Equipped with a XV-15GW22-B micro switch and rated at 15A / 250VAC, making it suitable for higher-load industrial control applications.
| Product model | XF-101 |
| Contact resistance | 25mΩ(initial value) |
| Insulation resistance | 100mΩ Above DC500V |
| Withstand voltage | ≥2000VAC |
| Mechanical Life | 1,000,000ops above |
| Electrical Life | 100,000ops above |
| Operating temperature | -20~+70°C |
| Operating Humidity | ≤85% |
| Material | ABS Plastic |
| Inner Switch | XV-15GW22-B |
| Rating Load | 15A/250VAC |
| Contact Form | 1C |
| 0utgoing Cable | 0.75mm²×3C×0.25m |
| Protection Degree | IP54 |
Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.
Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.
UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.
Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.
