The XF-402 Foot Switch is a heavy-duty industrial foot switch designed for applications requiring enhanced operator safety and environmental protection. Featuring a robust aluminium alloy housing, integrated protective safety cover, and high-performance XZ-15GW22-B switch mechanism, the XF-402 provides reliable hands-free control for industrial automation equipment, machine tools, welding systems, transportation equipment, and production lines. With a 15A switching capacity, IP65 protection rating, and customizable cable configurations, it is an ideal solution for harsh industrial environments where accidental operation prevention is critical.
Material: Aluminium Alloy
Inner Switch: XZ-15GW22-B
Rating Load: 15A / 250VAC
Contact Form: 1C (SPDT)
Protection Degree: IP65
Cable Length: Custom Length Available
Mechanical Life: ≥1,000,000 Operations
Safety Cover: Included
Ideal for machine tools, welding equipment, stamping machines, packaging machinery, production lines, transportation equipment, industrial automation systems, and heavy-duty machinery control.
Provides consistent switching performance even in high-frequency industrial applications.
Designed for more than 1 million mechanical operations, delivering dependable long-term performance.
Suitable for applications exposed to dust, moisture, oil mist, and other industrial contaminants.
Cable length can be customized according to installation requirements and equipment layouts.
Allows operators to control equipment while keeping both hands free, increasing productivity and operational convenience.
The guarded pedal design minimizes the risk of unintended operation and improves workplace safety.
Sealed construction effectively protects against dust ingress and water jets, ensuring reliable operation in demanding environments.
Features a 1C (SPDT) contact arrangement, providing flexible switching functionality for various control circuits.
Rated for 15A at 250VAC, suitable for industrial machinery, motor control systems, and automation equipment.
Constructed from high-strength aluminium alloy for excellent impact resistance, corrosion resistance, and long-term durability.
Equipped with a heavy-duty safety cover that helps prevent accidental activation and improves operator safety in hazardous working environments.

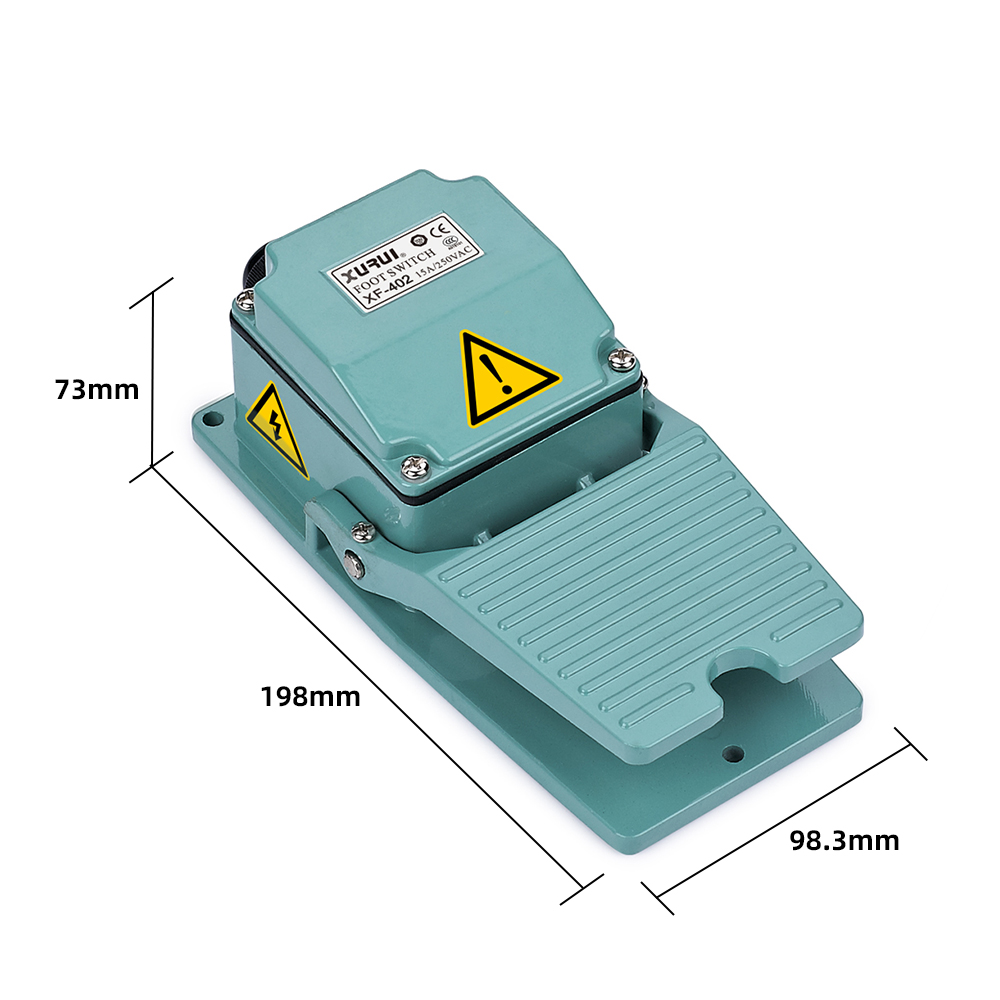

| Product model | XF-402 |
| Contact resistance | 25mΩ(initial value) |
| Insulation resistance | 100mΩ Above DC500V |
| Withstand voltage | ≥2000VAC |
| Mechanical Life | 1,000,000ops above |
| Electrical Life | 100,000ops above |
| Operating temperature | -20~+70°C |
| Operating Humidity | ≤85% |
| Material | Aluminium |
| Inner Switch | XV-15GW22-B |
| Rating Load | 15A/250VAC |
| Contact Form | 1C |
| 0utgoing Cable | -- |
| Protection Degree | IP65 |
Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.
Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.
UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.
Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.
