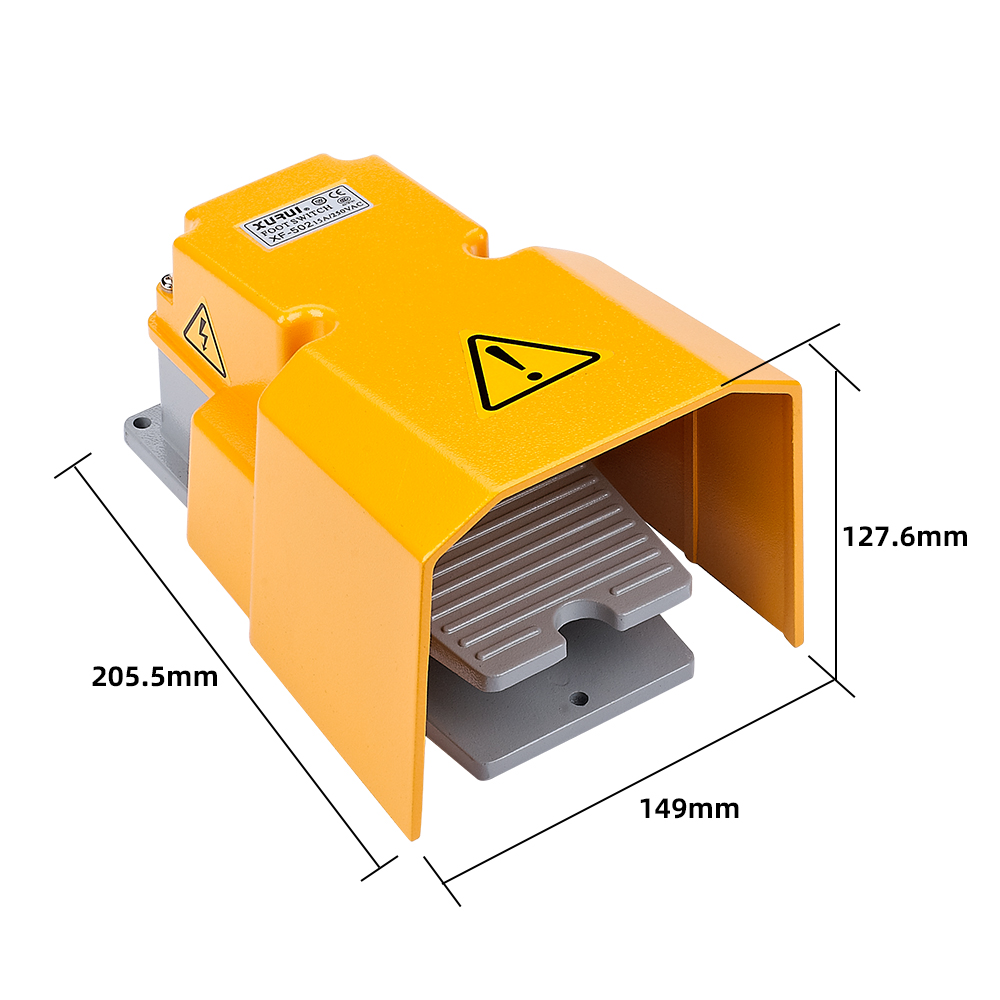

The XF-502 Foot Switch is a heavy-duty industrial safety foot switch designed for applications requiring maximum operator protection and reliable equipment control. Featuring a fully enclosed safety guard design, rugged aluminium alloy housing, and high-performance XZ-15GW22-B switch mechanism, the XF-502 effectively prevents accidental operation while providing dependable hands-free control. With a 15A switching capacity, IP65 protection rating, and customizable cable configurations, it is widely used in machine tools, stamping equipment, welding systems, production lines, and industrial automation applications where operational safety is critical.
Material: Aluminium Alloy
Inner Switch: XZ-15GW22-B
Rating Load: 15A / 250VAC
Contact Form: 1C (SPDT)
Protection Degree: IP65
Cable Length: Custom Length Available
Mechanical Life: ≥1,000,000 Operations
Safety Guard: Full Protective Cover
Widely used in machine tools, welding equipment, stamping machinery, packaging machines, production lines, transportation equipment, and industrial automation systems.
Suitable for continuous operation in industrial automation and manufacturing applications.
Designed for more than 1 million mechanical operations, providing reliable long-term performance.
Designed for demanding environments exposed to dust, moisture, oil mist, and industrial contaminants.
Cable length can be customized according to installation requirements and equipment layouts.
Allows operators to maintain both hands on workpieces or equipment while controlling machines safely and efficiently.
The fully guarded pedal design minimizes the risk of unintended activation, making it ideal for safety-critical applications.
Sealed structure protects against dust ingress and water jets, ensuring dependable performance in harsh environments.
Features a 1C (SPDT) contact arrangement, providing flexible switching functionality for a variety of control circuits.
Rated for 15A at 250VAC, suitable for controlling industrial machinery, motors, production equipment, and automation systems.
Constructed from high-strength aluminium alloy for excellent impact resistance, durability, and long service life in industrial environments.
The pedal is protected by a heavy-duty safety guard that effectively prevents accidental activation and improves operator safety.
| Product model | XF-502 |
| Contact resistance | 25mΩ(initial value) |
| Insulation resistance | 100mΩ Above DC500V |
| Withstand voltage | ≥2000VAC |
| Mechanical Life | 1,000,000ops above |
| Electrical Life | 100,000ops above |
| Operating temperature | -20~+70°C |
| Operating Humidity | ≤85% |
| Material | Aluminium |
| Inner Switch | XV-15GW22-B |
| Rating Load | 15A/250VAC |
| Contact Form | 1C |
| 0utgoing Cable | -- |
| Protection Degree | IP65 |
Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.
Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.
UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.
Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.
