The XF-102 Foot Switch is a compact and reliable industrial pedal switch designed for machinery control, industrial automation equipment, testing instruments, transportation systems, and general electrical applications. Featuring a durable ABS engineering plastic housing, anti-slip pedal surface, reliable SPDT contact configuration, and IP54 protection rating, the XF-102 provides safe and convenient hands-free operation. Supplied with a factory-installed cable and supporting custom cable lengths, it offers flexible installation and dependable performance for a wide range of industrial environments.
Material: ABS Engineering Plastic
Inner Switch: XV-15-1C25
Rating Load: 10A / 250VAC
Contact Form: 1C (SPDT)
Protection Degree: IP54
Standard Cable: 0.5mm² × 3C × 0.25m
Cable Length: Factory-installed cable, Custom Length Available
Mechanical Life: ≥1,000,000 Operations
Suitable for industrial automation equipment, packaging machinery, transportation systems, testing instruments, medical equipment, woodworking machinery, and general machine control systems.
Allows operators to keep both hands available while controlling equipment, improving productivity and workplace safety.
Designed for more than 1 million mechanical operations, ensuring dependable long-term performance.
The reinforced cable outlet structure improves resistance to daily wear and helps protect against water and oil exposure.
Cable length and cable specifications can be customized according to customer installation requirements.
Supplied with a standard 0.25-meter cable for quick installation and reduced wiring time.
Protects against dust ingress and water splashes, making the switch suitable for general industrial environments.
The dual-texture pedal surface enhances grip and operational safety, ensuring stable control during continuous use.
Provides one changeover contact with both NO and NC terminals for flexible control circuit integration.
Rated at 10A / 250VAC, making it suitable for a wide range of industrial equipment and control applications.
Manufactured from high-quality ABS engineering plastic, offering excellent impact resistance, wear resistance, and long-term durability.

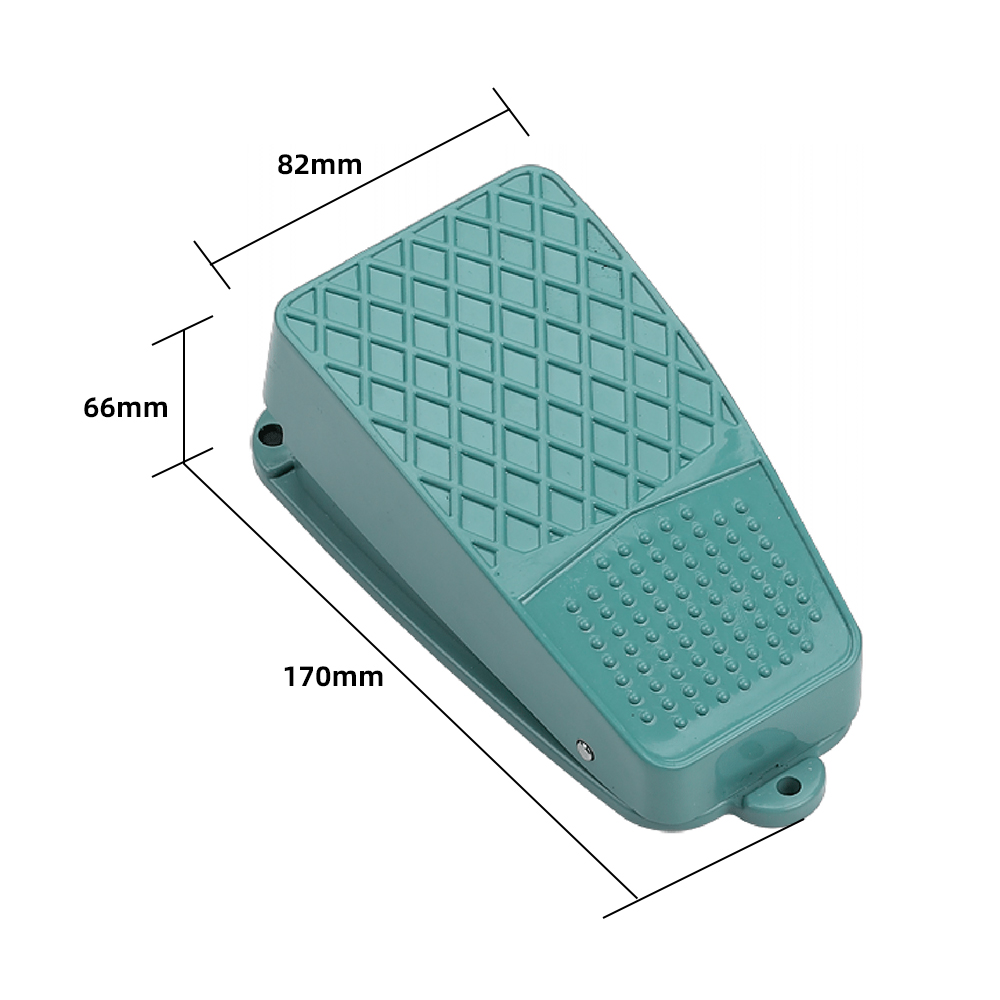

The streamlined housing design provides comfortable foot operation while maintaining a compact footprint for easy installation.
| Product model | XF-102 |
| Contact resistance | 25mΩ(initial value) |
| Insulation resistance | 100mΩ Above DC500V |
| Withstand voltage | ≥2000VAC |
| Mechanical Life | 1,000,000ops above |
| Electrical Life | 100,000ops above |
| Operating temperature | -20~+70°C |
| Operating Humidity | ≤85% |
| Material | ABS Plastic |
| Inner Switch | XV-15-1C25 |
| Rating Load | 10A/250VAC |
| Contact Form | 1C |
| 0utgoing Cable | 0.5mm²×3C×0.25m |
| Protection Degree | IP54 |
Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.
Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.
UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.
Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.
Custom voltage & current, AC/DC type, zero-cross or random trigger.
Custom mounting, terminals and non-standard dimensions.
Custom heat dissipation, high isolation, potting and anti-corrosion protection.
Overheat/overcurrent protection, anti-interference, delay and soft start optional.
Custom logo, marking, OEM/ODM and personalized solution design.
Regular customization: 3-7 working days
Complex Customization: 7-15 working days
Urgent Sampling: 24-72 hours
2222 US dollars
Conventional products have no minimum order quantity. Customized products can be consulted with customer service
The delivery time usually varies depending on the quantity and model of the order, usually 3-5 days. For specific times, please consult us
