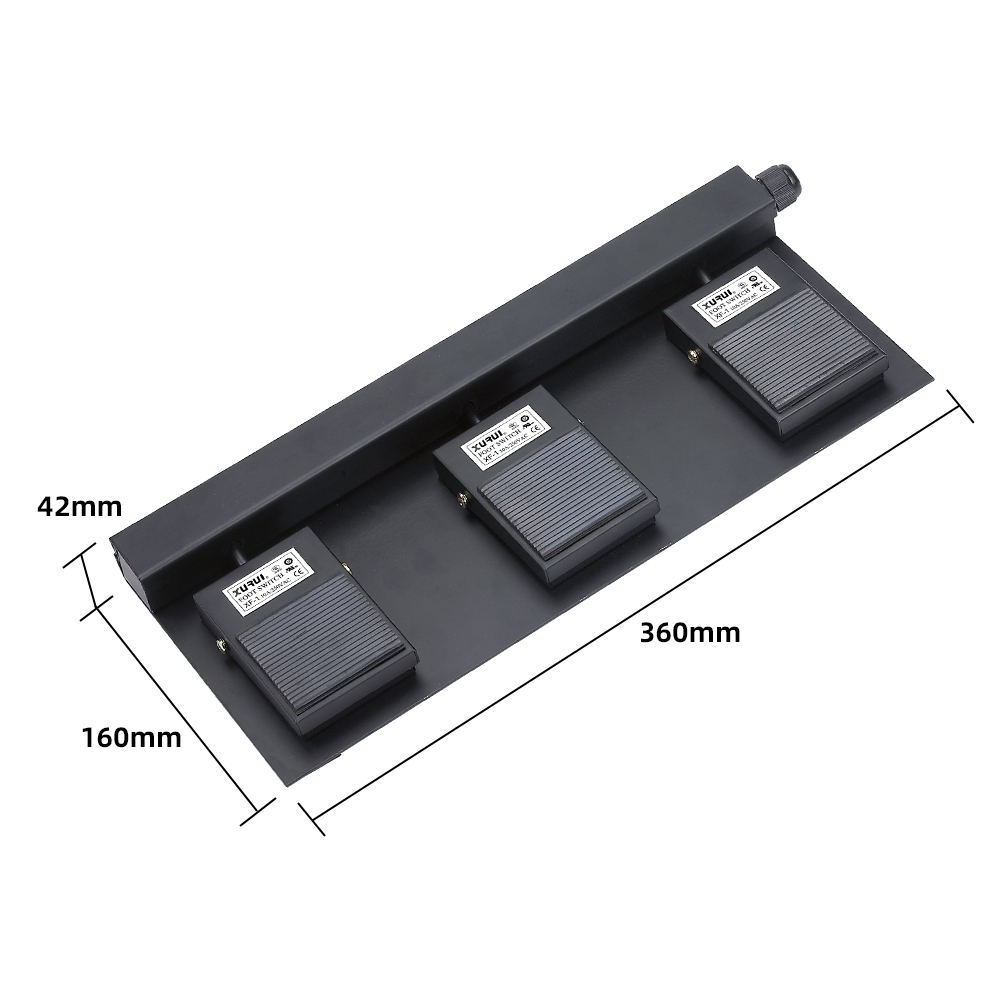

The XF-1T Triple Pedal Foot Switch is designed for industrial applications requiring independent control of three separate circuits or functions. Featuring three independent pedals, triple 1A contact outputs, and a rugged steel housing, the XF-1T provides reliable hands-free operation for industrial automation equipment, production lines, testing systems, packaging machinery, and machine tools. With IP54 protection, anti-slip pedal surfaces, and customizable cable lengths, it delivers dependable performance in demanding industrial environments.
Material: Steel
Inner Switch: XV-15-1C25
Rating Load: 10A / 250VAC
Contact Form: 1A × 3
Protection Degree: IP54
Standard Cable: 0.5mm² × 6C × 0.25m
Cable Length: Factory-installed cable, Custom Length Available
Mechanical Life: ≥1,000,000 Operations
Suitable for industrial automation systems, assembly lines, packaging machinery, testing equipment, machine tools, transportation equipment, woodworking machinery, and general machine control systems.
Allows operators to control multiple machine functions while keeping both hands available for production tasks.
Designed for more than 1 million mechanical operations, ensuring dependable long-term performance.
The large base design provides excellent stability and comfortable operation for multi-function control applications.
Cable length and cable specifications can be customized according to customer installation requirements.
Supplied with a standard 0.25-meter cable for convenient installation and quick integration into control systems.
Protects against dust ingress and water splashes, making the switch suitable for general industrial applications.
The textured pedal design improves grip and operator safety, ensuring stable operation during continuous use.
Provides three independent normally open contact outputs for multi-function equipment control and complex automation systems.
Rated at 10A / 250VAC, making it suitable for a wide range of industrial machinery and equipment control applications.
Constructed from durable steel material, providing excellent impact resistance, mechanical strength, and long service life in industrial environments.
Three separate pedals allow independent control of three circuits or machine functions, improving operational flexibility and workflow efficiency.
| Product model | XF-1T |
| Contact resistance | 25mΩ(initial value) |
| Insulation resistance | 100mΩ Above DC500V |
| Withstand voltage | ≥2000VAC |
| Mechanical Life | 1,000,000ops above |
| Electrical Life | 100,000ops above |
| Operating temperature | -20~+70°C |
| Operating Humidity | ≤85% |
| Material | Steel |
| Inner Switch | XV-15-1C25 |
| Rating Load | 10A/250VAC |
| Contact Form | 1A×3 |
| 0utgoing Cable | 0.5mm²×6C×0.25m |
| Protection Degree | IP54 |
Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.
Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.
UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.
Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.
