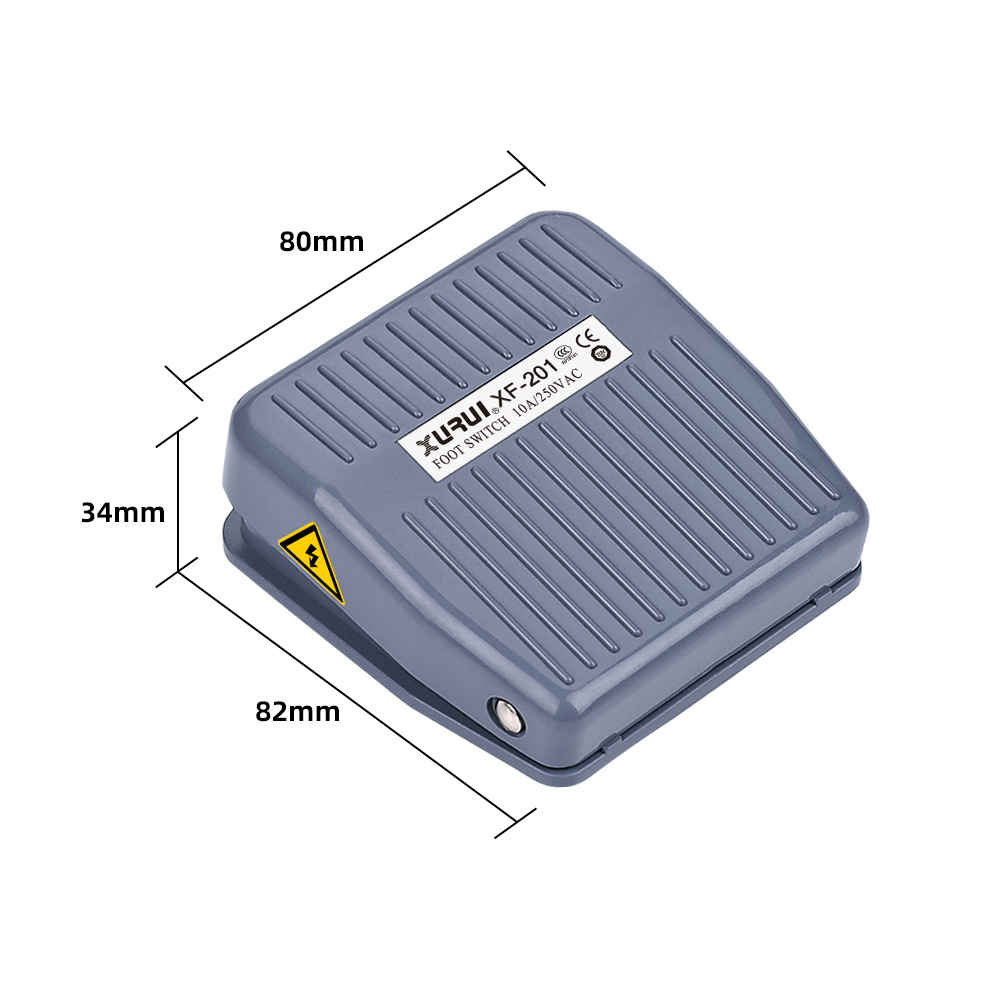

The XF-201 Foot Switch is a compact and reliable pedal-operated control switch designed for industrial automation equipment, machinery control, testing instruments, packaging systems, and general electrical applications. Featuring a durable ABS engineering plastic housing, anti-slip pedal surface, reliable SPDT contact configuration, and IP54 protection rating, the XF-201 provides safe and efficient hands-free operation. Supplied with a factory-installed cable and supporting custom cable lengths, it is an economical and practical solution for light-duty industrial control applications.
Material: ABS Engineering Plastic
Inner Switch: XV-15-1C25
Rating Load: 10A / 250VAC
Contact Form: 1C (SPDT)
Protection Degree: IP54
Standard Cable: 0.5mm² × 3C × 0.25m
Cable Length: Factory-installed cable, Custom Length Available
Mechanical Life: ≥1,000,000 Operations
Suitable for industrial automation equipment, testing instruments, packaging machinery, transportation systems, medical devices, and general machine control applications.
Allows operators to keep both hands free while controlling machinery, improving productivity and workplace safety.
Designed for more than 1 million mechanical operations, ensuring dependable long-term performance.
Designed with a reinforced cable outlet to improve durability and resistance to industrial contaminants.
Cable length and cable specifications can be customized according to customer installation requirements.
Supplied with a standard 0.25-meter cable for easy installation and quick integration into control systems.
Provides protection against dust ingress and water splashes, making it suitable for general industrial environments.
Textured pedal design enhances grip and reduces the risk of slipping during operation.
The wide pedal surface improves operating comfort and allows precise control during repeated use.
Equipped with a 1C (SPDT) contact arrangement, providing flexible switching and control functions.
Rated at 10A / 250VAC, suitable for a wide variety of industrial and commercial control applications.
Constructed from high-quality ABS engineering plastic, offering excellent impact resistance, wear resistance, and long service life.
The compact housing design minimizes installation space requirements while providing comfortable and reliable foot operation.
| Product model | XF-201 |
| Contact resistance | 25mΩ(initial value) |
| Insulation resistance | 100mΩ Above DC500V |
| Withstand voltage | ≥2000VAC |
| Mechanical Life | 1,000,000ops above |
| Electrical Life | 100,000ops above |
| Operating temperature | -20~+70°C |
| Operating Humidity | ≤85% |
| Material | ABS Plastic |
| Inner Switch | XV-15-1C25 |
| Rating Load | 10A/250VAC |
| Contact Form | 1C |
| 0utgoing Cable | 0.5mm²×3C×0.25m |
| Protection Degree | IP54 |
Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.
Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.
UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.
Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.
