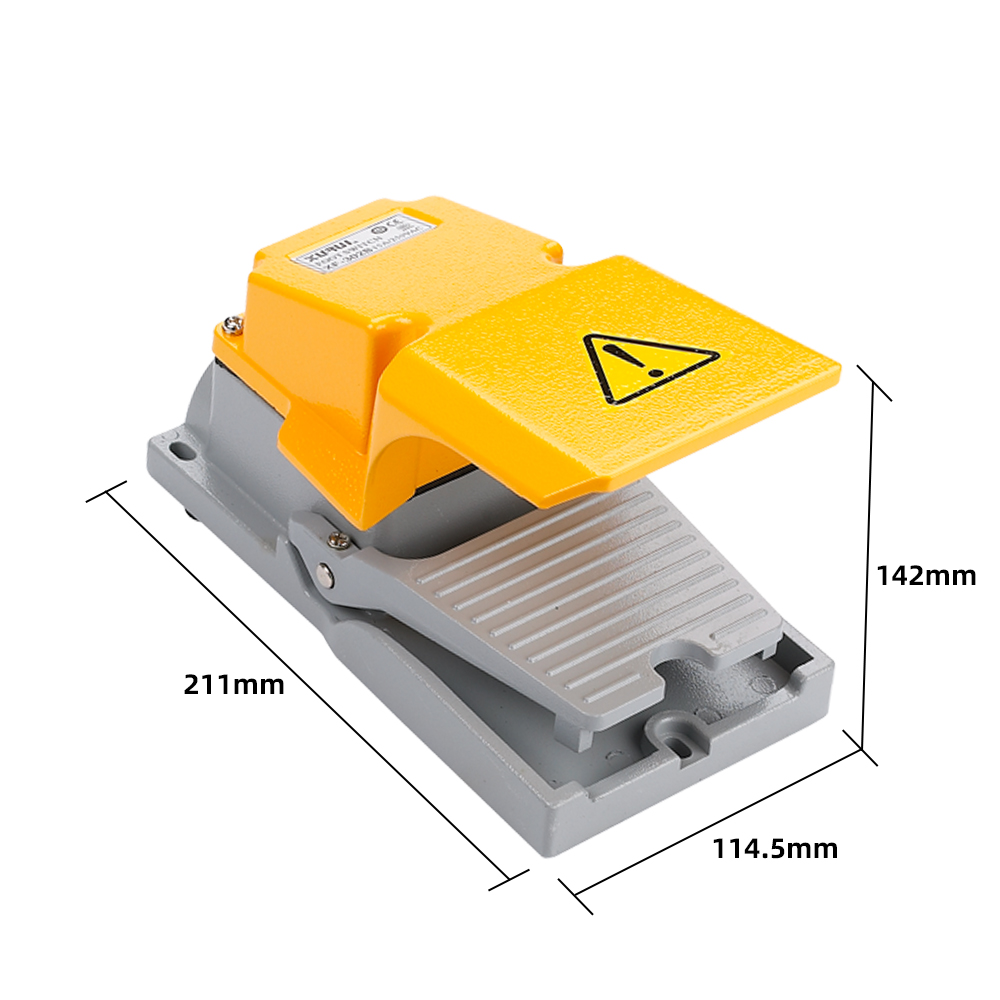

The XF-302B Foot Switch is a heavy-duty industrial foot switch designed for demanding applications requiring enhanced operator safety and long-term durability. Featuring a robust aluminum alloy housing, protective safety cover, 15A switching capacity, and IP65 protection rating, the XF-302B provides reliable hands-free equipment control while helping prevent accidental activation. Its enlarged housing and reinforced structure make it particularly suitable for machine tools, stamping equipment, welding systems, automation machinery, and other industrial control applications operating in harsh environments.
Material: Aluminium Alloy
Inner Switch: XZ-15GW22-B
Rating Load: 15A / 250VAC
Contact Form: 1C (SPDT)
Protection Degree: IP65
Cable Configuration: Terminal Connection Type
Cable Length: Custom Cable Available
Mechanical Life: ≥1,000,000 Operations
Ideal for machine tools, stamping machinery, welding equipment, industrial automation systems, packaging machinery, woodworking equipment, and safety-critical control applications.
Allows operators to keep both hands free while controlling equipment, improving productivity and workplace safety.
Designed for more than 1 million mechanical operations, ensuring dependable long-term performance.
Supports customized cable assemblies and cable lengths according to customer installation requirements.
Terminal wiring structure allows convenient installation and flexible cable selection based on application requirements.
Textured pedal design improves grip and operational safety during continuous use.
Provides superior protection against dust ingress and water jets, ensuring reliable operation in harsh industrial environments.
The enlarged body design provides improved mechanical strength and stability for heavy-duty industrial applications.
Equipped with a 1C (SPDT) contact arrangement for flexible and dependable switching control.
Rated at 15A / 250VAC, making it suitable for controlling higher-power industrial machinery and equipment.
Constructed from high-strength aluminium alloy, offering excellent impact resistance, wear resistance, and long-term reliability.
Features a larger protective cover structure that effectively reduces accidental activation while providing additional operator protection.
| Product model | XF-302B |
| Contact resistance | 25mΩ(initial value) |
| Insulation resistance | 100mΩ Above DC500V |
| Withstand voltage | ≥2000VAC |
| Mechanical Life | 1,000,000ops above |
| Electrical Life | 100,000ops above |
| Operating temperature | -20~+70°C |
| Operating Humidity | ≤85% |
| Material | Aluminium |
| Inner Switch | XV-15GW22-B |
| Rating Load | 15A/250VAC |
| Contact Form | 1C |
| 0utgoing Cable | -- |
| Protection Degree | IP65 |
Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.
Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.
UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.
Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.
