XF-502B Safety Guard Foot Switch

The XF-502B Foot Switch is a heavy-duty industrial safety foot switch designed for applications requiring enhanced operator protection and reliable machine control. Featuring a reinforced aluminium alloy housing, enlarged safety guard structure, and high-performance XZ-15GW22-B switch mechanism, the XF-502B effectively minimizes accidental activation while providing stable and dependable hands-free operation. With a 15A switching capacity, IP65 protection rating, and customizable cable options, it is ideal for machine tools, stamping equipment, welding systems, automated production lines, and other industrial environments where safety is a priority.

Material: Aluminium Alloy

Inner Switch: XZ-15GW22-B

Rating Load: 15A / 250VAC

Contact Form: 1C (SPDT)

Protection Degree: IP65

Cable Length: Custom Length Available

Mechanical Life: ≥1,000,000 Operations

Safety Guard: Reinforced Full Protective Cover


Product Features
  • Wide Range of Applications
    Wide Range of Applications

    Widely used in machine tools, welding equipment, stamping machinery, packaging machines, production lines, transportation systems, and industrial automation equipment.

  • Stable and Reliable Operation
    Stable and Reliable Operation

    Provides consistent switching performance under continuous industrial operation.

  • Long Mechanical Service Life
    Long Mechanical Service Life

    Designed for more than 1 million mechanical operations, ensuring dependable long-term performance.

  • Industrial-Grade Environmental Resistance
    Industrial-Grade Environmental Resistance

    Suitable for applications exposed to dust, moisture, oil mist, and other industrial contaminants.

  • Custom Cable Length Available
    Custom Cable Length Available

    Cable length can be customized according to installation requirements and equipment layouts.

  • Hands-Free Equipment Control
    Hands-Free Equipment Control

    Allows operators to control equipment while keeping both hands free for material handling and machine operation.

  • Enhanced Operator Safety
    Enhanced Operator Safety

    The enlarged safety cover significantly reduces the possibility of unintended activation and improves workplace safety.

  • IP65 Dustproof and Waterproof Protection
    IP65 Dustproof and Waterproof Protection

    Sealed construction protects against dust ingress and water jets, ensuring reliable performance in harsh industrial environments.

  • SPDT Contact Configuration
    SPDT Contact Configuration

    Equipped with a 1C (SPDT) contact arrangement for flexible integration into various industrial control circuits.

  • Reliable 15A Switching Capacity
    Reliable 15A Switching Capacity

    Rated for 15A at 250VAC, suitable for industrial machinery, motor controls, automation systems, and production equipment.

  • Heavy-Duty Aluminium Alloy Housing
    Heavy-Duty Aluminium Alloy Housing

    Constructed from high-strength aluminium alloy, offering excellent impact resistance, wear resistance, and long-term durability.

  • Reinforced Safety Guard Design
    Reinforced Safety Guard Design

    Features a larger and reinforced protective cover that provides additional protection against accidental operation in demanding industrial environments.

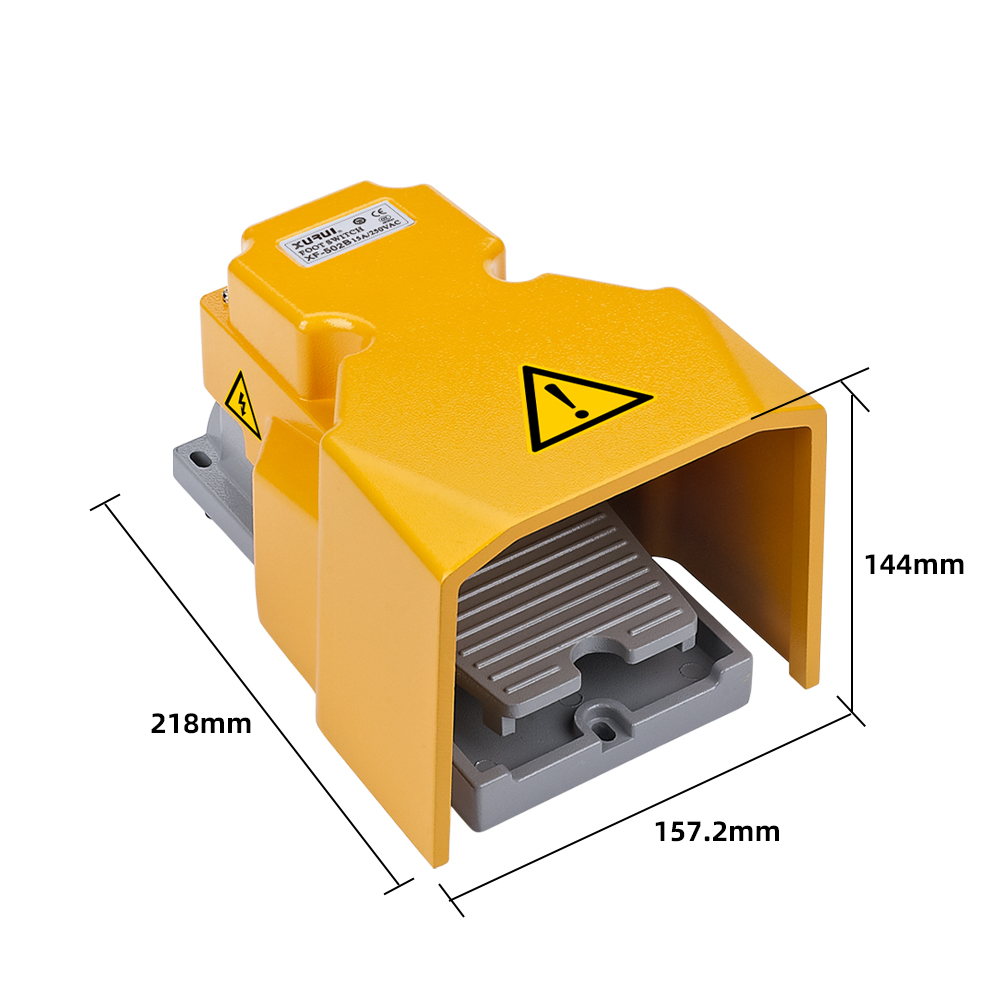

Specifications
Product modelXF-502B
Contact resistance25mΩ(initial value)
Insulation resistance100mΩ Above DC500V
Withstand voltage≥2000VAC
Mechanical Life1,000,000ops above
Electrical Life100,000ops above
Operating temperature-20~+70°C
Operating Humidity≤85%
MaterialAluminium
Inner SwitchXV-15GW22-B
Rating Load15A/250VAC
Contact Form1C
0utgoing Cable--
Protection DegreeIP65
Product Certification
  • 01Certification for the Chinese market

    Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.

    Certification for the Chinese market Certification for the Chinese market
  • 02EU Market Certification

    Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.

    EU Market Certification EU Market Certification EU Market Certification
  • 03North American Market Certification

    UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.

    North American Market Certification
  • 04Japanese, Korean, and Asian markets

    Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.

    Japanese, Korean, and Asian markets
