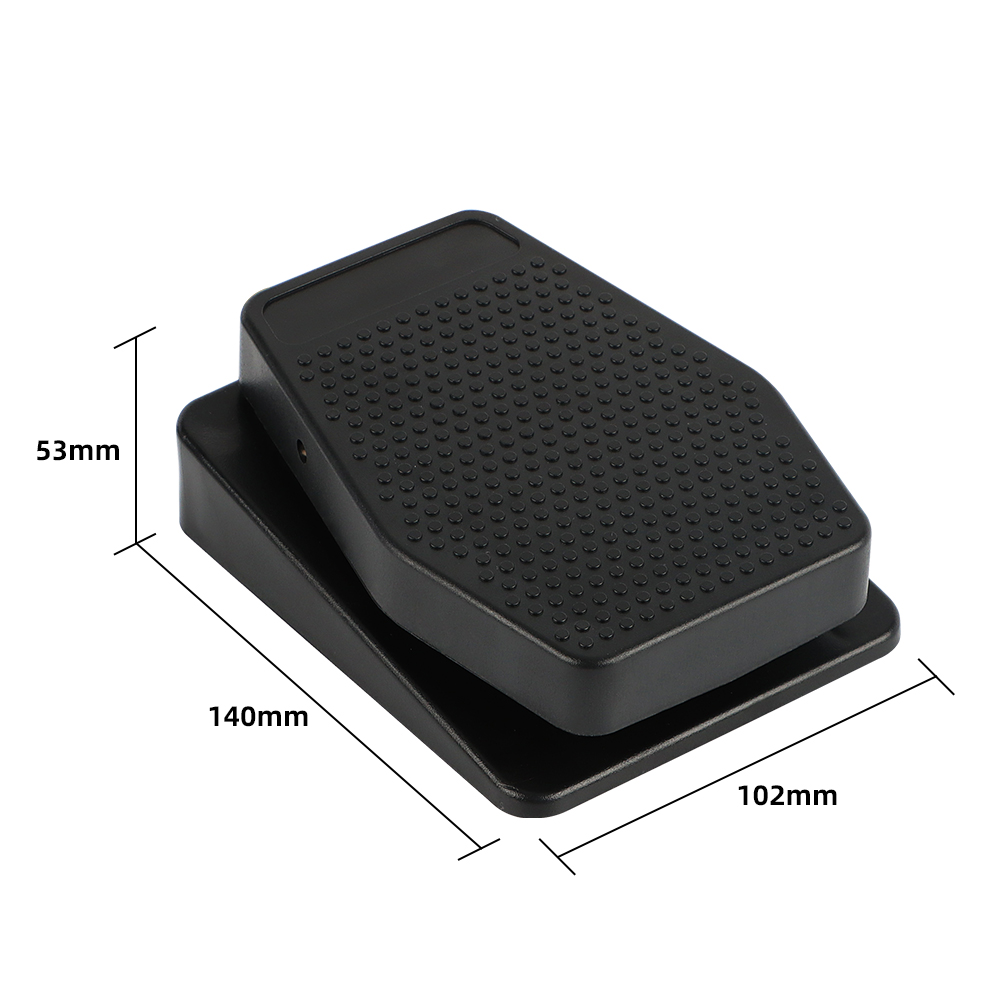

The XF-701 Foot Switch is a compact industrial foot-operated control switch designed for reliable hands-free equipment operation. Featuring a durable ABS engineering plastic housing, ergonomic wide pedal design, and dependable 1A contact configuration, the XF-701 provides smooth and comfortable operation for industrial automation, testing equipment, medical devices, packaging machinery, and light-duty machine control applications. With IP54 protection, customizable cable length options, and a compact structure, it is an economical and practical solution for various control systems.
Material: ABS Engineering Plastic
Inner Switch: XV-15-1C25
Rating Load: 10A / 250VAC
Contact Form: 1A (NO)
Protection Degree: IP67 (Except Housing)
Cable Specification: 0.5mm² × 2C × 0.6m
Cable Length: Standard 0.25m Factory Cable, Custom Length Available
Mechanical Life: ≥1,000,000 Operations
Suitable for industrial automation equipment, testing instruments, medical devices, packaging machinery, transportation equipment, and general machine control systems.
Allows operators to keep both hands free while controlling equipment, improving productivity and operational efficiency.
Designed for more than 1 million mechanical operations, ensuring reliable long-term performance.
Protected cable outlet structure improves durability in industrial environments.
Cable length can be customized according to customer installation requirements.
Supplied with a standard 0.25m factory-installed cable for convenient wiring and installation.
Compact design allows easy installation while minimizing space requirements.
Provides protection against dust ingress and water splashes, making it suitable for general industrial environments.
Textured pedal surface improves grip and reduces the risk of slipping during operation.
Equipped with a 1A (NO) contact arrangement, ideal for momentary equipment activation and control circuits.
Rated for 10A at 250VAC, suitable for a wide range of industrial and commercial control applications.
Manufactured from high-quality ABS engineering plastic with excellent impact resistance and long service life.
Large pedal surface provides comfortable foot operation and improved control accuracy during repetitive use.
| Product model | XF-701 |
| Contact resistance | 25mΩ(initial value) |
| Insulation resistance | 100mΩ Above DC500V |
| Withstand voltage | ≥2000VAC |
| Mechanical Life | 1,000,000ops above |
| Electrical Life | 100,000ops above |
| Operating temperature | -20~+70°C |
| Operating Humidity | ≤85% |
| Material | ABS Plastic |
| Inner Switch | XV-15-1C25 |
| Rating Load | 10A/250VAC |
| Contact Form | 1A |
| 0utgoing Cable | 0.5mm²×3C×0.25m |
| Protection Degree | IP54 |
Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.
Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.
UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.
Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.
