XF-801D Dual Pedal Foot Switch

The XF-801D Dual Pedal Foot Switch is a heavy-duty dual-pedal control switch designed for industrial automation equipment, machine tools, testing systems, packaging machinery, and multi-function control applications. Featuring a durable ABS engineering plastic housing, dual independent pedals, and dual 2A contact configurations, the XF-801D allows operators to control two separate circuits conveniently through foot operation. With a 15A switching capacity, IP54 protection rating, and customizable cable lengths, it provides reliable and flexible control for demanding industrial environments.

Material: ABS Engineering Plastic

Inner Switch: XZ-15GW22-B

Rating Load: 15A / 250VAC

Contact Form: 2A × 2 (Dual 2NO Contacts)

Protection Degree: IP54

Cable Specification: 0.75mm² × 3C × 0.25m

Cable Length: Standard 0.25m Factory Cable, Custom Length Available

Mechanical Life: ≥1,000,000 Operations


Product Features
  • Wide Range of Applications
    Wide Range of Applications

    Suitable for industrial automation equipment, machine tools, testing systems, packaging machinery, assembly lines, transportation equipment, and various multi-function control systems.

  • Easy Installation and Maintenance
    Easy Installation and Maintenance

    Simple structure and compact footprint allow fast installation and convenient maintenance.

  • Hands-Free Multi-Function Control
    Hands-Free Multi-Function Control

    Allows operators to control multiple machine functions while keeping both hands free, improving productivity and safety.

  • Reliable Long Service Life
    Reliable Long Service Life

    Designed for more than 1 million mechanical operations, ensuring dependable long-term performance.

  • Custom Cable Length Available
    Custom Cable Length Available

    Cable length can be customized according to customer installation requirements.

  • Factory-Installed Cable
    Factory-Installed Cable

    Supplied with a standard 0.25m factory-installed cable for convenient installation and wiring.

  • IP54 Protection Rating
    IP54 Protection Rating

    Protects against dust ingress and water splashes, making it suitable for general industrial environments.

  • Anti-Slip Pedal Surface
    Anti-Slip Pedal Surface

    Textured pedal surfaces provide secure foot contact and enhance operator safety during use.

  • Ergonomic Dual Pedal Design
    Ergonomic Dual Pedal Design

    Wide pedal spacing improves operating comfort and reduces the possibility of accidental activation.

  • High 15A Switching Capacity
    High 15A Switching Capacity

    Rated for 15A at 250VAC, suitable for a wide range of industrial control and automation applications.

  • Durable ABS Housing
    Durable ABS Housing

    Constructed from high-quality ABS engineering plastic for excellent impact resistance and long-term durability.

  • Dual 2NO Contact Configuration
    Dual 2NO Contact Configuration

    Each pedal is equipped with a 2A (2NO) contact arrangement, providing flexible multi-channel control capability.

  • Dual Pedal Independent Control
    Dual Pedal Independent Control

    Features two independent foot pedals, allowing separate control of two circuits or machine functions from a single unit.

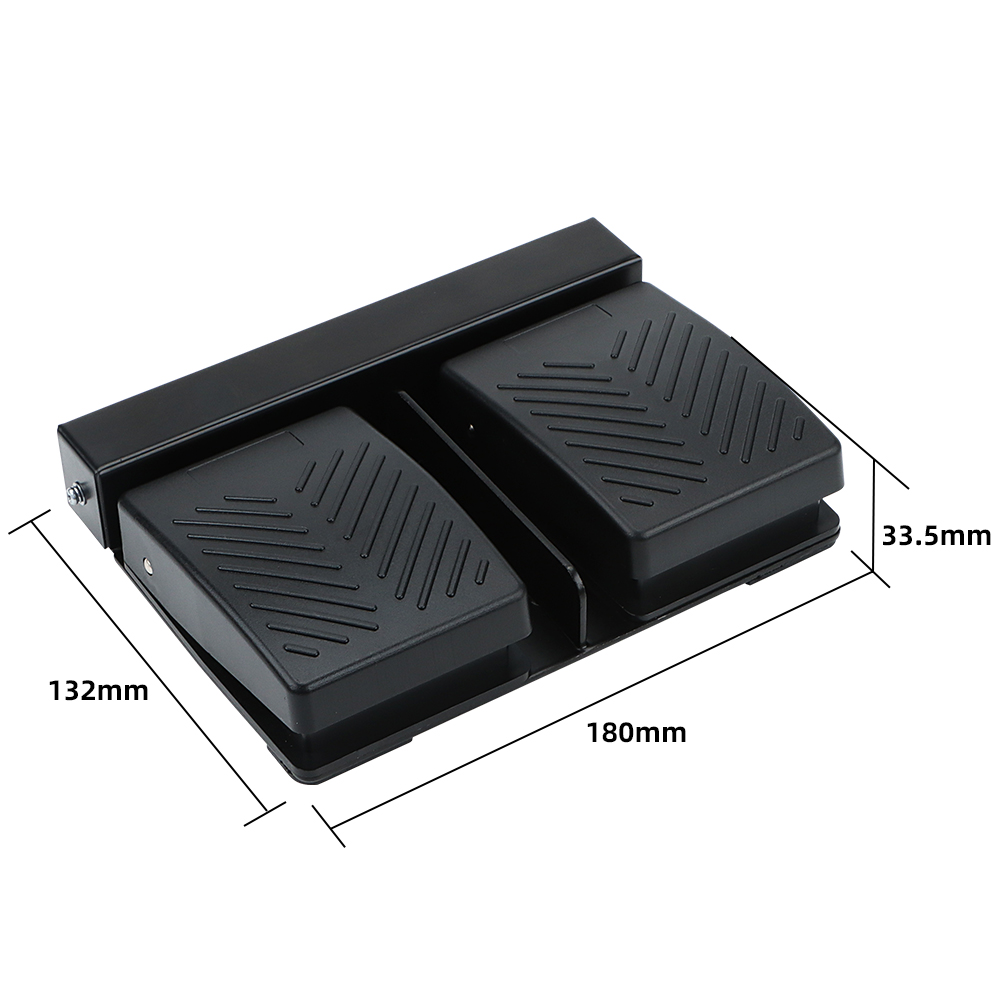

Specifications
Product modelXF-801D
Contact resistance25mΩ(initial value)
Insulation resistance100mΩ Above DC500V
Withstand voltage≥2000VAC
Mechanical Life1,000,000ops above
Electrical Life100,000ops above
Operating temperature-20~+70°C
Operating Humidity≤85%
MaterialABS Plastic
Inner SwitchXV-15GW22-B
Rating Load15A/250VAC
Contact Form2A×2
0utgoing Cable0.75mm²×3C×0.25m
Protection DegreeIP54
Product Certification
  • 01Certification for the Chinese market

    Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.

    Certification for the Chinese market Certification for the Chinese market
  • 02EU Market Certification

    Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.

    EU Market Certification EU Market Certification EU Market Certification
  • 03North American Market Certification

    UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.

    North American Market Certification
  • 04Japanese, Korean, and Asian markets

    Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.

    Japanese, Korean, and Asian markets
