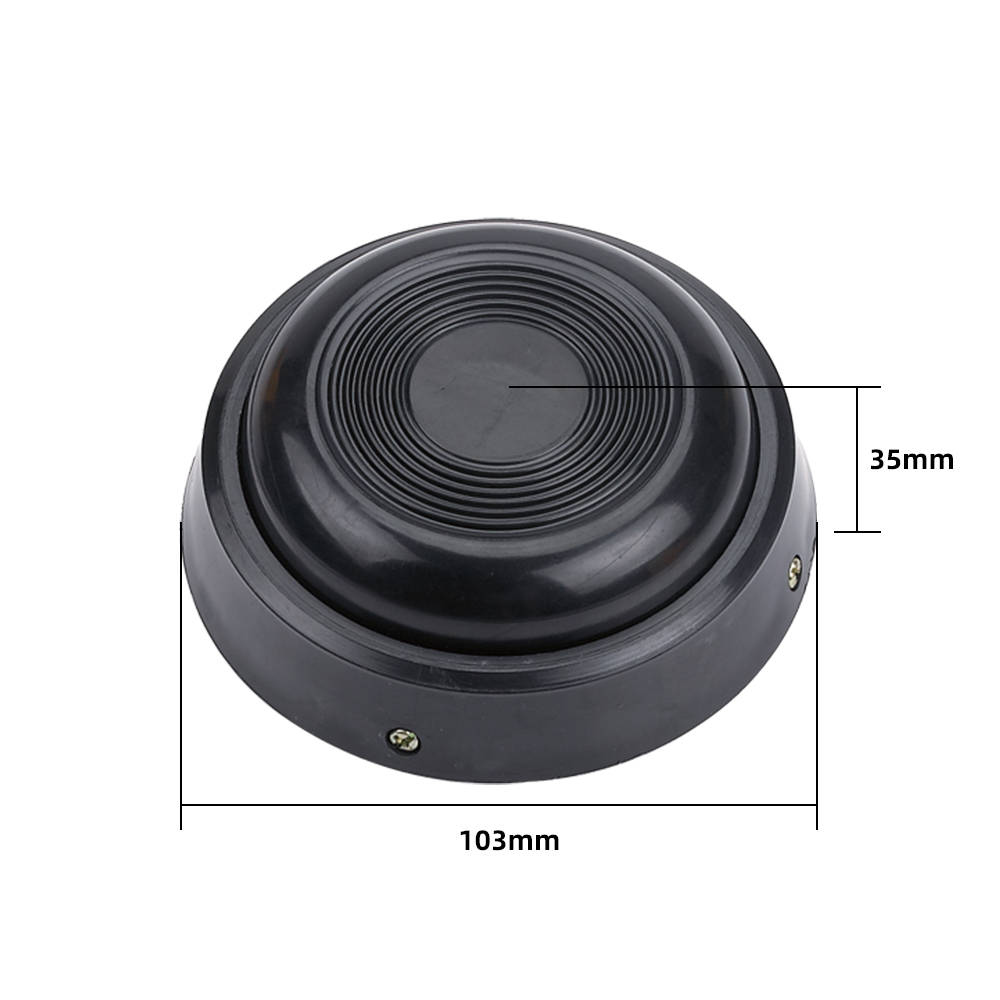

The XF-91 Round Foot Switch is a compact pedal-operated control switch designed for industrial automation, testing equipment, machine control, medical devices, and general electrical applications. Featuring a durable ABS engineering plastic housing, round diaphragm-style pedal design, reliable SPDT contact configuration, and lightweight construction, the XF-91 provides comfortable hands-free operation and dependable switching performance. With a 10A switching capacity, IP54 protection rating, factory-installed 1-meter cable, and customizable cable lengths, it is an ideal solution for light-duty industrial and commercial control systems.
Material: ABS Engineering Plastic
Inner Switch: XV-15-1C25
Rating Load: 10A / 250VAC
Contact Form: 1C (SPDT)
Protection Degree: IP54
Cable Specification: 0.5mm² × 3C × 1m
Cable Length: Custom Length Available
Mechanical Life: ≥1,000,000 Operations
Suitable for industrial automation equipment, testing instruments, medical devices, packaging machinery, transportation systems, machine tools, and general electrical control applications.
Simple structure enables quick installation and easy maintenance.
Allows operators to keep both hands available during machine operation, improving efficiency and convenience.
Designed for more than 1 million mechanical operations, ensuring reliable long-term performance.
Built with a proven XV-15 micro switch mechanism to ensure dependable switching performance.
Cable length can be customized according to customer installation requirements for greater flexibility.
Supplied with a standard 1-meter cable for convenient installation and immediate use.
Provides protection against dust ingress and water splashes, making it suitable for general industrial environments.
Compact design minimizes installation space requirements while maintaining excellent operating convenience.
Equipped with a 1C (SPDT) contact arrangement, providing flexible switching options for different control circuits.
Rated for 10A at 250VAC, suitable for a wide range of industrial equipment and electrical control applications.
Constructed from high-quality ABS engineering plastic, offering good impact resistance, wear resistance, and long-term reliability.
The large circular pedal surface provides smooth and comfortable foot operation, allowing precise control with minimal effort.
| Product model | XF-91 |
| Contact resistance | 25mΩ(initial value) |
| Insulation resistance | 100mΩ Above DC500V |
| Withstand voltage | ≥2000VAC |
| Mechanical Life | 1,000,000ops above |
| Electrical Life | 100,000ops above |
| Operating temperature | -20~+70°C |
| Operating Humidity | ≤85% |
| Material | ABS Plastic |
| Inner Switch | XV-15-1C25 |
| Rating Load | 10A/250VAC |
| Contact Form | 1C |
| 0utgoing Cable | 0.5mm²×3C×1m |
| Protection Degree | IP54 |
Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.
Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.
UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.
Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.
