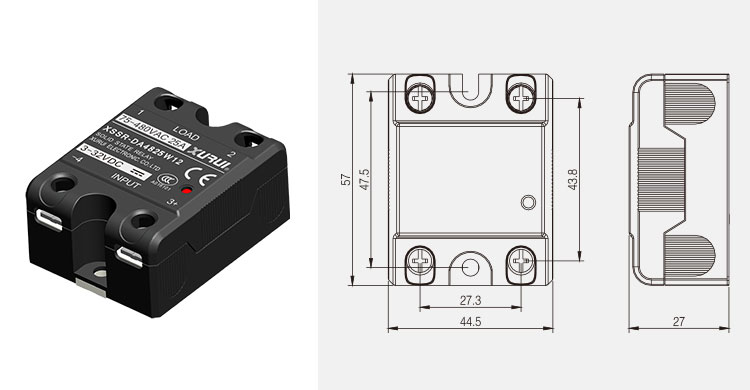

Outshape-dimensions
Features
·Bolt Installation-Horizontal Type Single phase AC Solid State Relay
·Patent design
·Triac NO output
·DC-AC DC Singnal control AC load /AC-AC AC Signal control AC load
·Optoelectronic devices Isolation
·Zero crossing / Random Trigger Form
·SMD mount technology
·Built-in RC absorbing circuit & Varistor protection
·LED Status Indicator
Specification
| Productmodel | XSSR-DA48-W12 | XSSR-AA48-W12 |
| Control voltage | 3-32VDC | 80-250VAC |
| Control current | 6-25mA | 5-25mA |
| Reverse voltage | 32VDA | / |
| Guarantee cbse voltage | 1VDA | 30VAC |
| Guarantee open voltage | 3VDA | 8VDA |
| Load voltage | 75-480VAC | |
| Load max current | 10A-120A | |
| Load min current | 0.08A | |
| Break over voltage | ≤2VAC | |
| Output leakage current | ≤5mA | |
| Medium withstand voltage | ≥2500VAC | |
| Insulating resistance | ≥100MΩ | |
| Switching time | ≤10ms | |
| Frequency range | 50-60Hz | |
| Operating temperature | -20-70℃ | |
| bad current safety fator | resistive bad 50-60% | |
| inductive bad 30-40% | ||

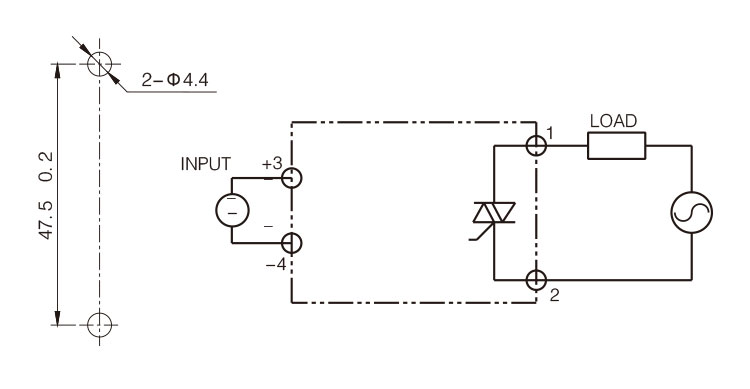

Connection Diagram

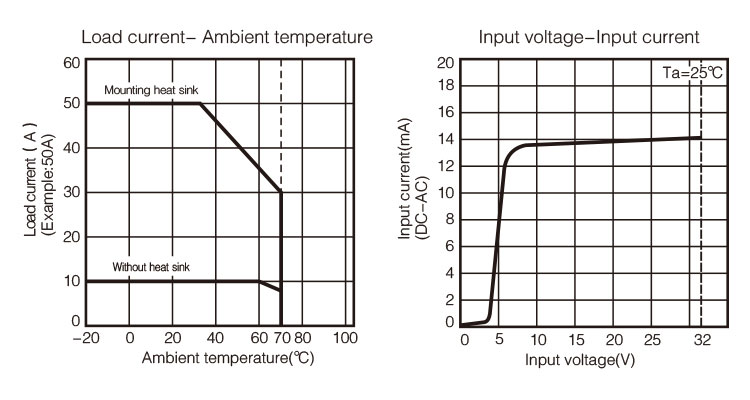

Characteristic curve
